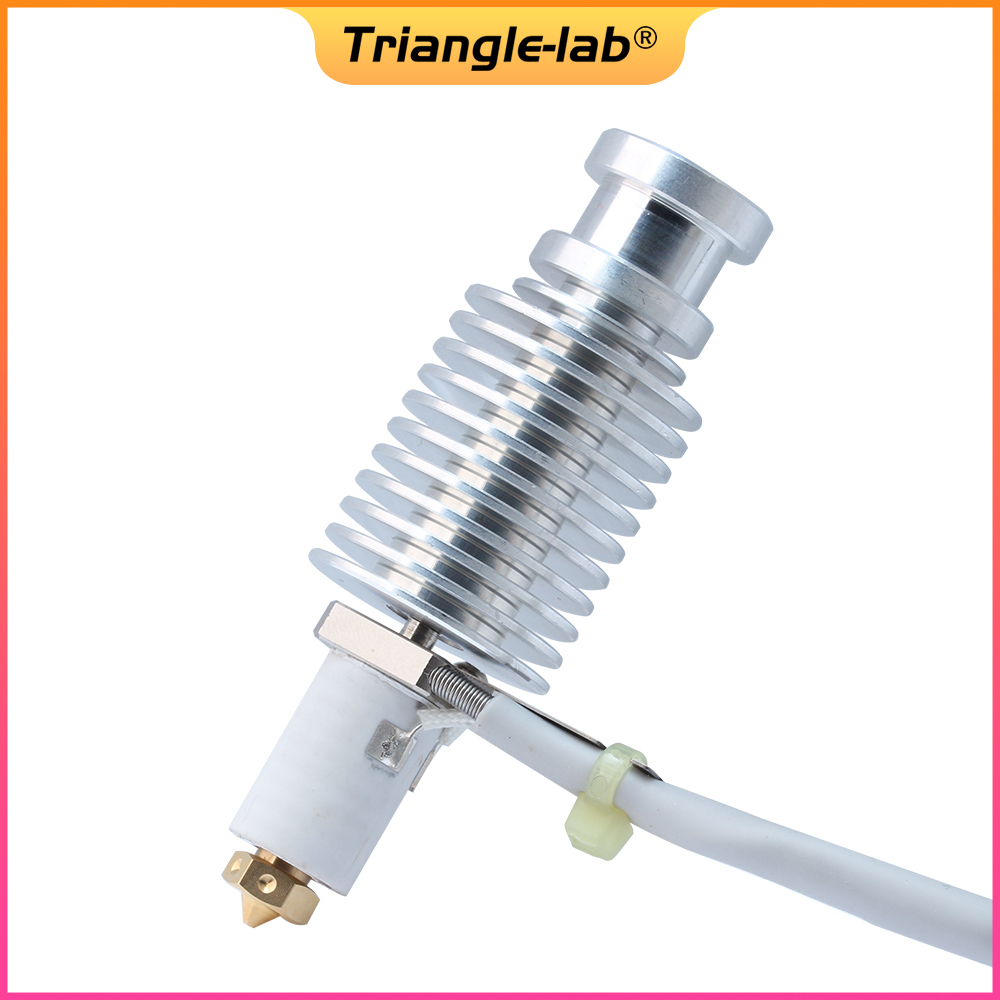

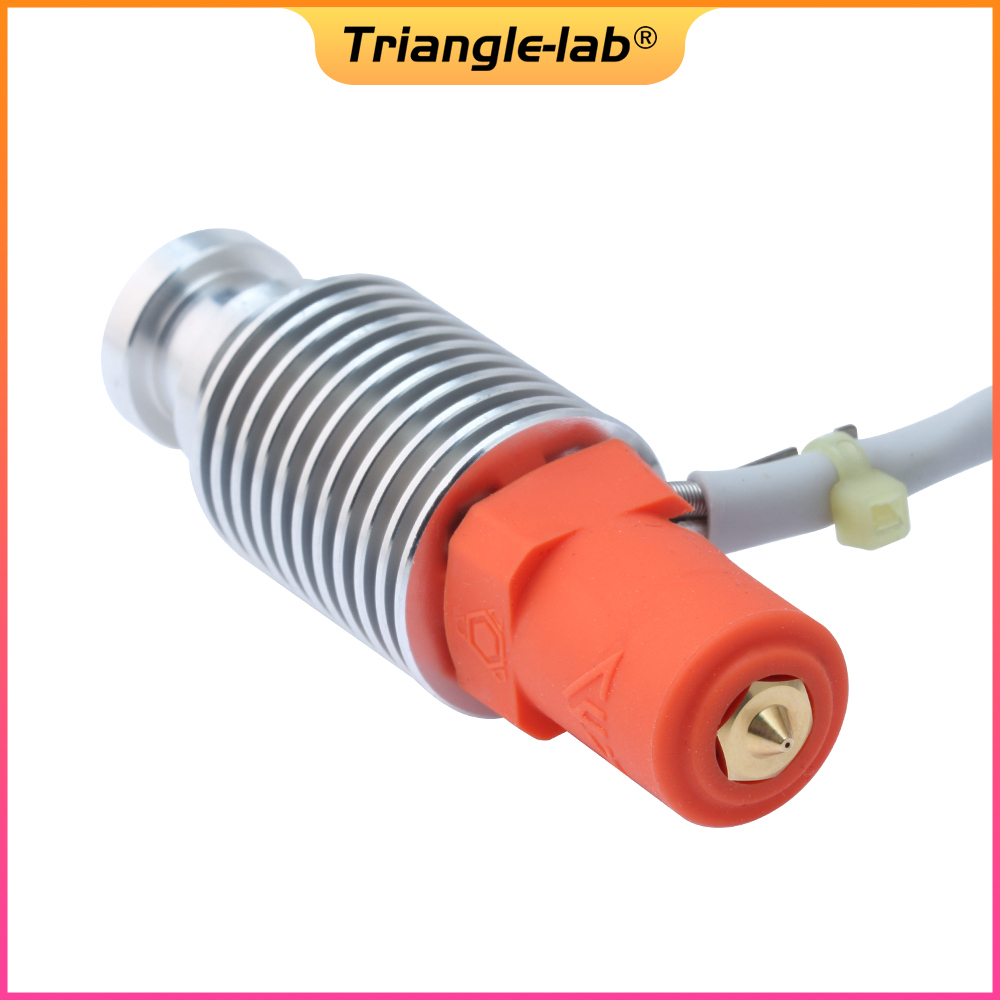

CHC Pro Hotend

Trianglelab 115W High Power CHC Pro Kit Ceramic Heating Core Quick Heating For Ender 3 Volcano Hotend CR10 mk3s blv
0.0 (0 Reviews)
$22.90 $22.21
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • size:
    CHC Pro Kit 24V
    CHC Pro Volcano 24V
    CHC Pro Hemera 24V
    CHC CR-10 24V
    CHC Pro Nozzle 24V
Quantity
-
+
  • Description
Note
All products purchased on this website are not include tax, including and not limited to: Consumption tax, Value added tax, customs duties, etc,
Before placing an order, please check your country's policies and regulations on online shopping taxes.

The amount you pay does not include tax and you will need to pay it yourself.
To purchase a tax-included products, please click the link below:https://trianglelab.aliexpress.com/store/1654223
Announcement
The ceramic heating core is officially named CHC series.
It will be used as the core to make a variety of HOTEND assemblies.
Currently available for purchase are V6 specifications, HEMERA specifications, CR10 specifications.
New models will be added after March. That is the ultimate perfect CHC HOTEND. Stay tuned.
Ceramic heating core calendar represents:
1: The first generation of products (2015~2017)
2: Second-generation products (2019~2021)
3: The third generation of new products (2022)


▉Name:

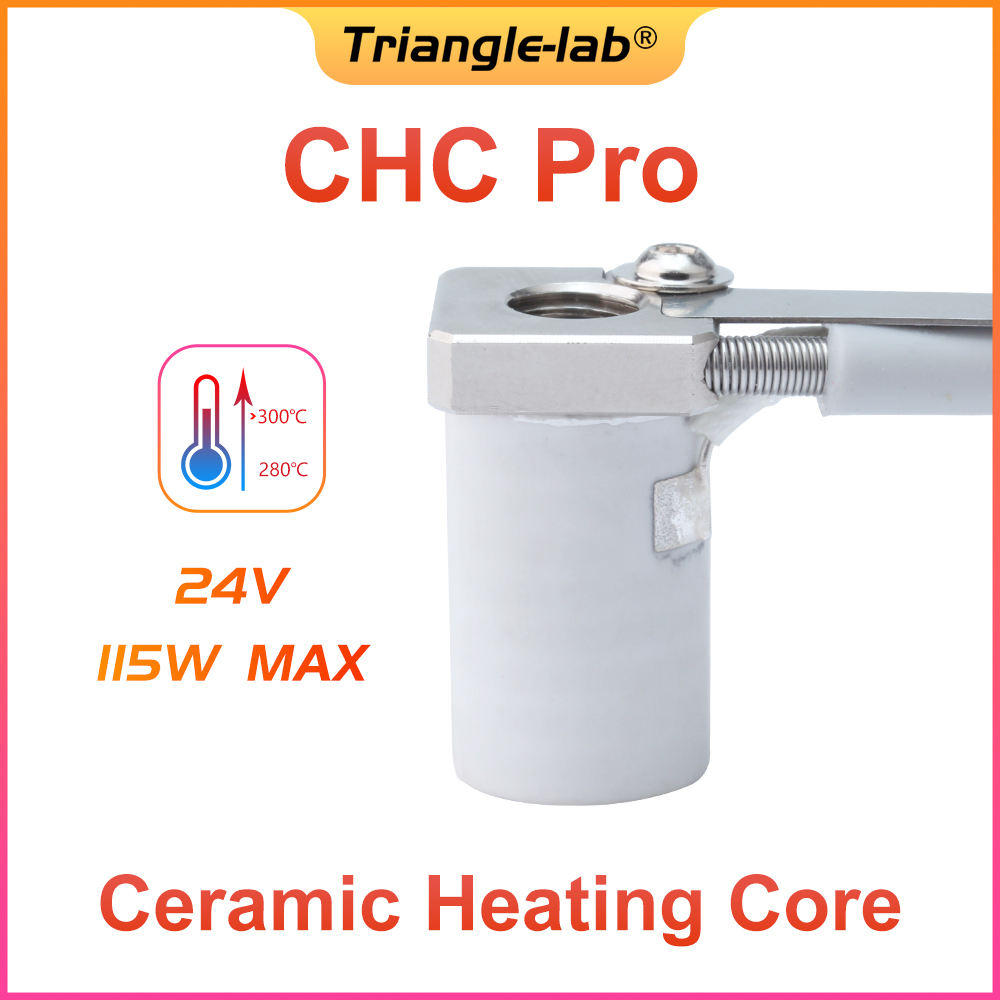

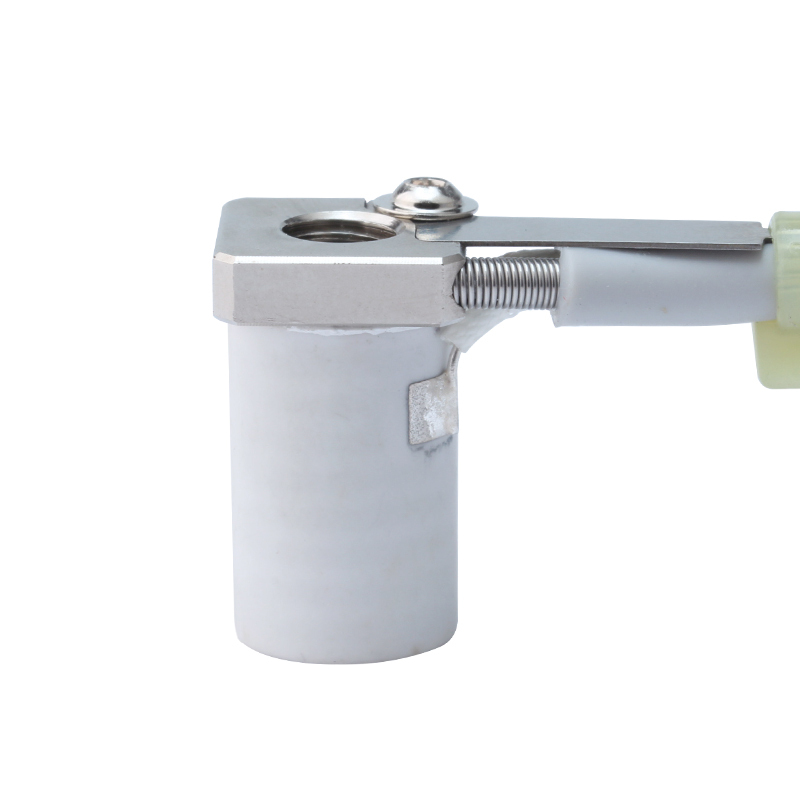

Trianglelab CHC(Ceramic Heating Core) Pro KIT

▉Compatible:
Volcano Hotend
CR10 Hotend
Hemera Htend
Matrix Extruder
Tatan AERO
DDB-Volcano Hotend KIT
*Built-in 104NT-4-R025H42G Thermal
Marlin Firmware Configuration
* 5:100K thermistor - ATC Semitec 104GT-2/104NT-4-R025H42G(Used in ParCan & J-Head) (4.7k pullup)
#define TEMP_SENSOR_0 5
Repetier
ATC Semitec 10GT-2
Klipper
sensor_type: ATC Semitec 104NT-4-R025H42G



Supports temperatures up to 300℃
ID09L16 ceramic heater power test
Roomtemperature 24℃
Controller BoardMKS BASE V1.4
Resistance at room temperature  5±1Ω    24V 115W MAX
Controller Boardpowervoltage24V DC
Firmware marlin2.0
No Firmwareheater power limiting
Read the temperature from the LCD
Record the power consumption onthe Lab PSU while passing certain temperatures

Please note that the temperatures in the table are thermistor embedded in the melting zone not the actual temperatures of the heating element especially at low temperatures.
The power in the table above has been deducted from the consumption of the controller board and LCD 1.03W.

▉Features:
Cylindrical ceramic heaters can be optimized and symmetrically heated materials
The thermistor is directly installed in the BLOCK to obtain a more realistic temperature reading when the material comes out of the hot end
Lightweight design, suitable for fast printing
Small compression size
Compatible with any V5/V6/CR10/HEMERA/MATRIX radiator, up to 300℃ degrees Celsius
▉What's in the box:
Set1:

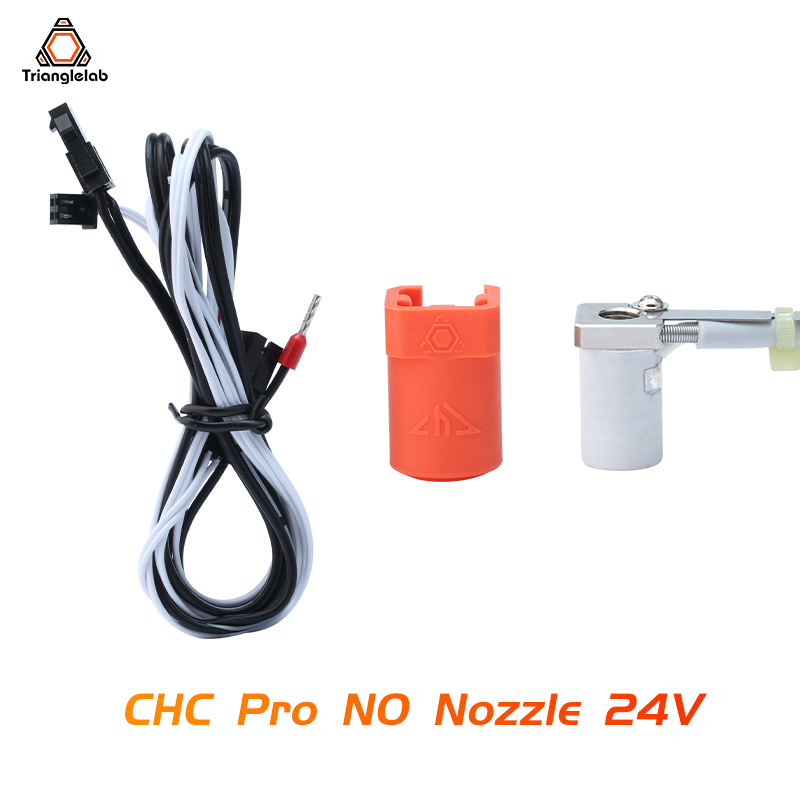

CHC(Ceramic Heating Core) Pro No Nozzle 24V
Set2:

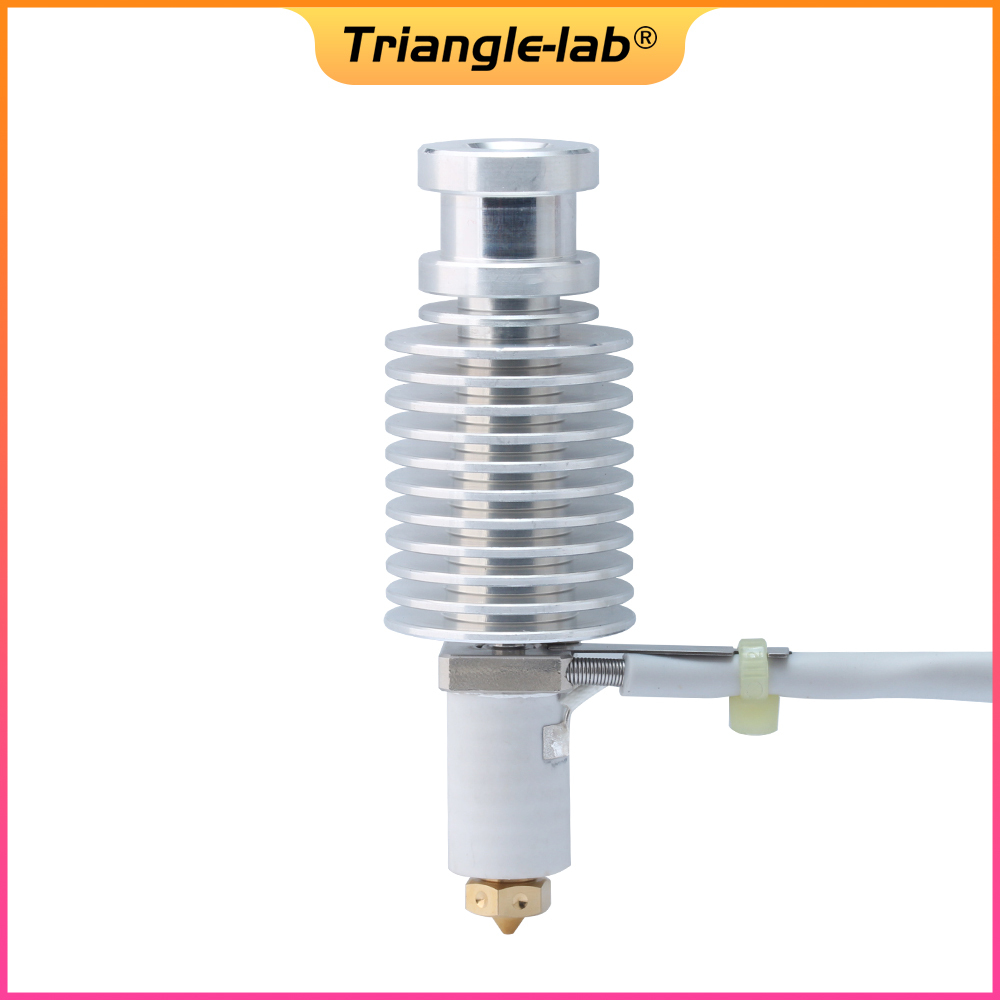

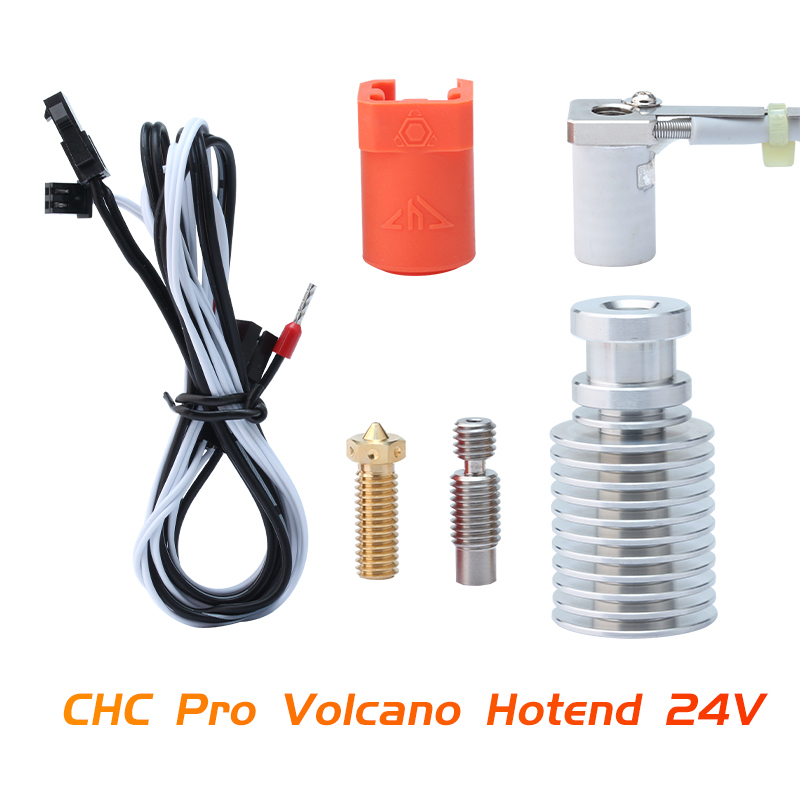

CHC(Ceramic Heating Core) Pro Volcano Hotend 24V
*(The heatbreak is all-metal Heatbreak)
 (0.4mm volcano nozzle)
Set3:

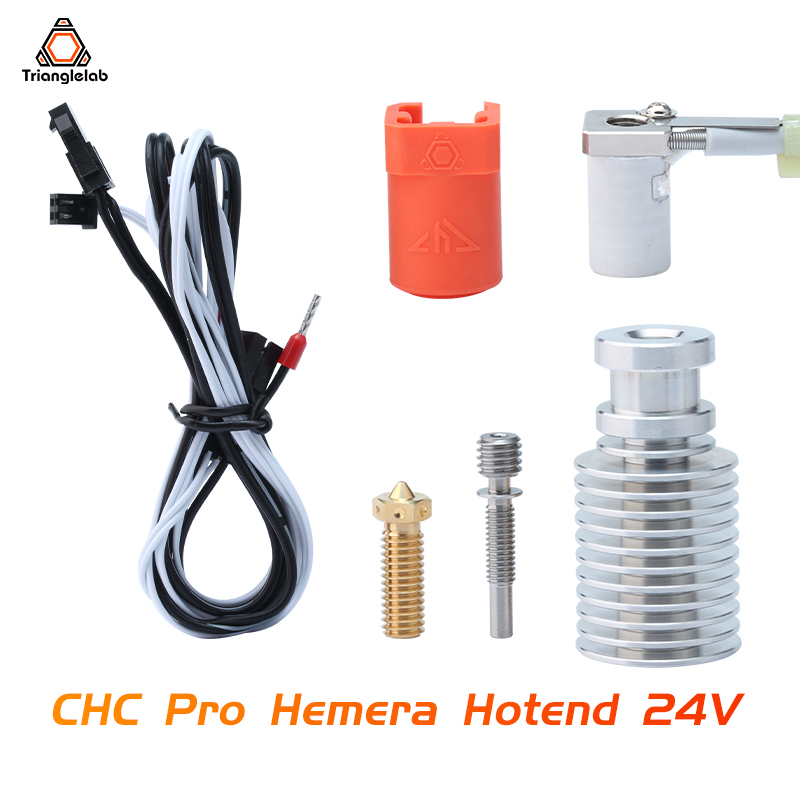

CHC(Ceramic Heating Core) Pro Hemera Hotend 24V
*(The heatbreak is stainless steel Heatbreak)
 (0.4mm volcano nozzle)

Set4:

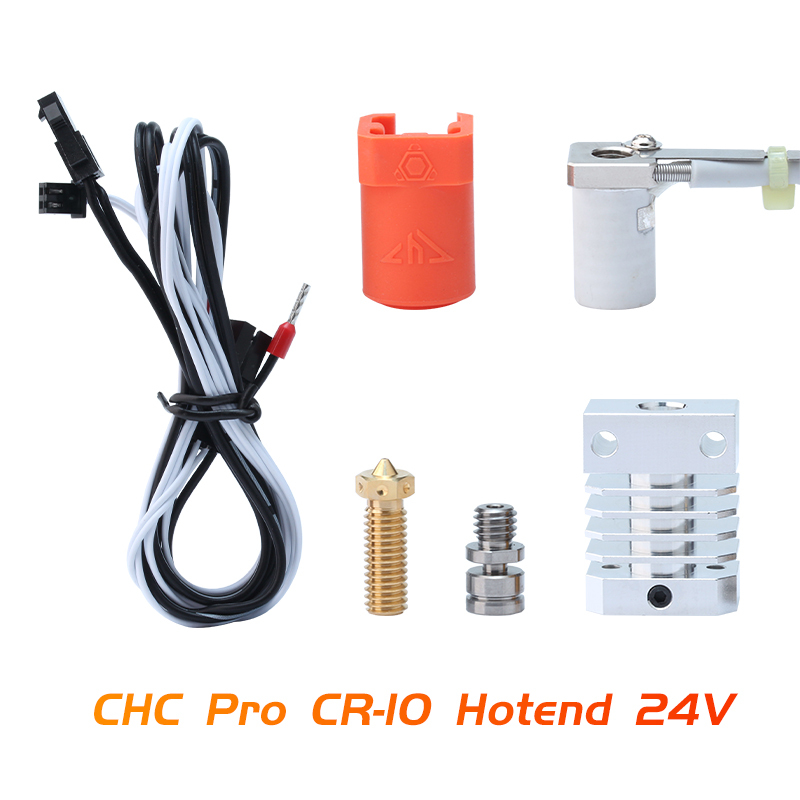

CHC(Ceramic Heating Core) Pro CR-10 Hotend 24V
*(The heatbreak is titanium alloy Heatbreak)
 (0.4mm volcano nozzle)


Set5:

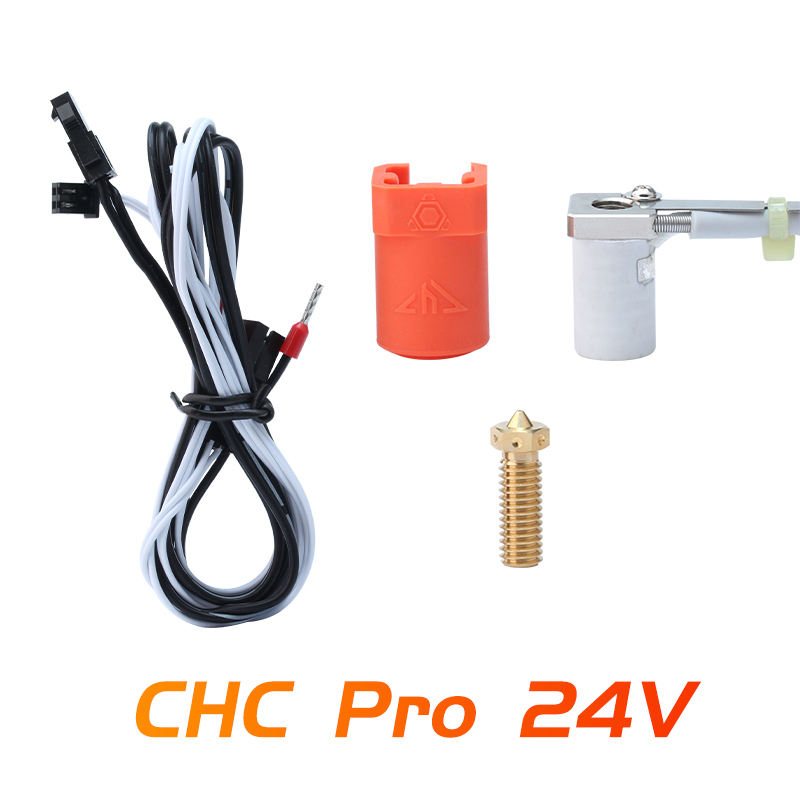

CHC(Ceramic Heating Core) Pro Nozzle 24V
 (0.4mm volcano nozzle)
▉Wiring diagram:


▉Product Display:
