Trianglelab 115W High Power CHC Pro Kit PT1000 ceramic heating core quick heating for ender 3 volcano hotend CR10 mk3s blv
0.0 (0 Reviews)
$33.90 $33.22
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity
-
+
  • Description
Announcement
The ceramic heating core is officially named CHC series.
It will be used as the core to make a variety of HOTEND assemblies.
Currently available for purchase are V6 specifications, HEMERA specifications, CR10 specifications.
New models will be added after March. That is the ultimate perfect CHC HOTEND. Stay tuned.
Ceramic heating core calendar represents:
1: The first generation of products (2015~2017)
2: Second-generation products (2019~2021)
3: The third generation of new products (2022)


▉Name:
Trianglelab CHC(Ceramic Heating Core) Pro KIT PT1000
Technical details:Please click here!
▉Compatible:
Volcano Hotend
CR10 Hotend
Hemera Htend
Matrix Extruder
Tatan AERO
DDB-Volcano Hotend KIT
*Built-in PT1000 Thermistor





Ring Heating


Evenly heated to achieve 360° ring
heating

Ceramic heating ring with built-in copper plated heating ring. The ceramic can
be heated evenly. Rapid heating. Realizes 360° ring heating.




Supports temperatures up to 350℃
ID09L16 ceramic heater power test
Roomtemperature 24℃
Controller BoardMKS BASE V1.4
Resistance at room temperature  5±1Ω    24V 115W MAX
Controller Boardpowervoltage24V DC
Firmware marlin2.0
No Firmwareheater power limiting
Read the temperature from the LCD
Record the power consumption onthe Lab PSU while passing certain temperatures



Please note that the temperatures in the table are thermistor embedded in the melting zone not the actual temperatures of the heating element especially at low temperatures.
The power in the table above has been deducted from the consumption of the controller board and LCD 1.03W.

▉Features:
Cylindrical ceramic heaters can be optimized and symmetrically heated materials
The thermistor is directly installed in the BLOCK to obtain a more realistic temperature reading when the material comes out of the hot end
Lightweight design, suitable for fast printing
Small compression size
Compatible with any V5/V6/CR10/HEMERA/MATRIX radiator, up to 350℃ degrees Celsius

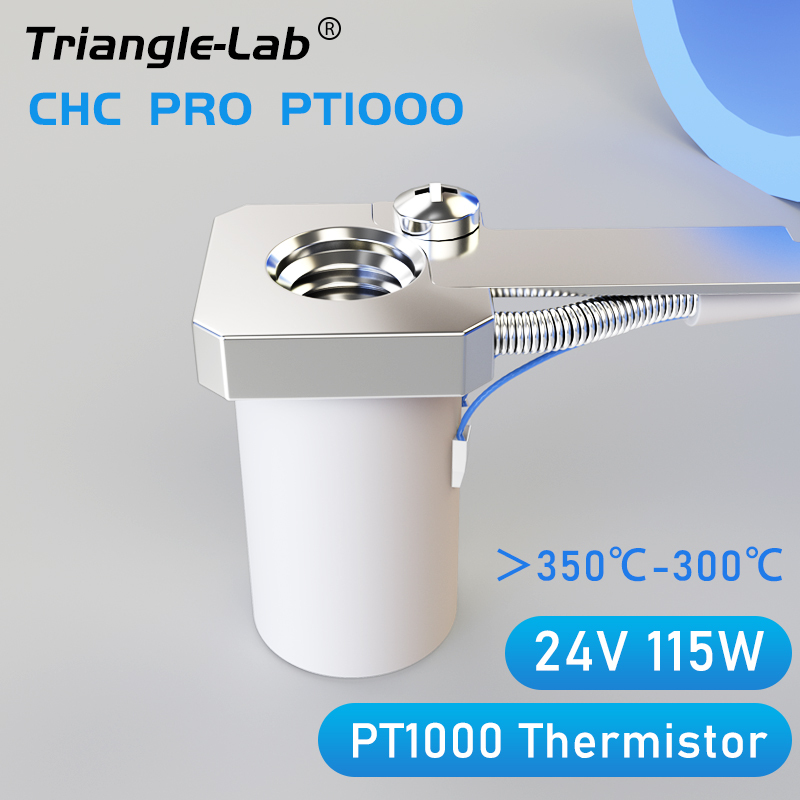

24V 115W Heater Cartridge
PT1000 Thermistor

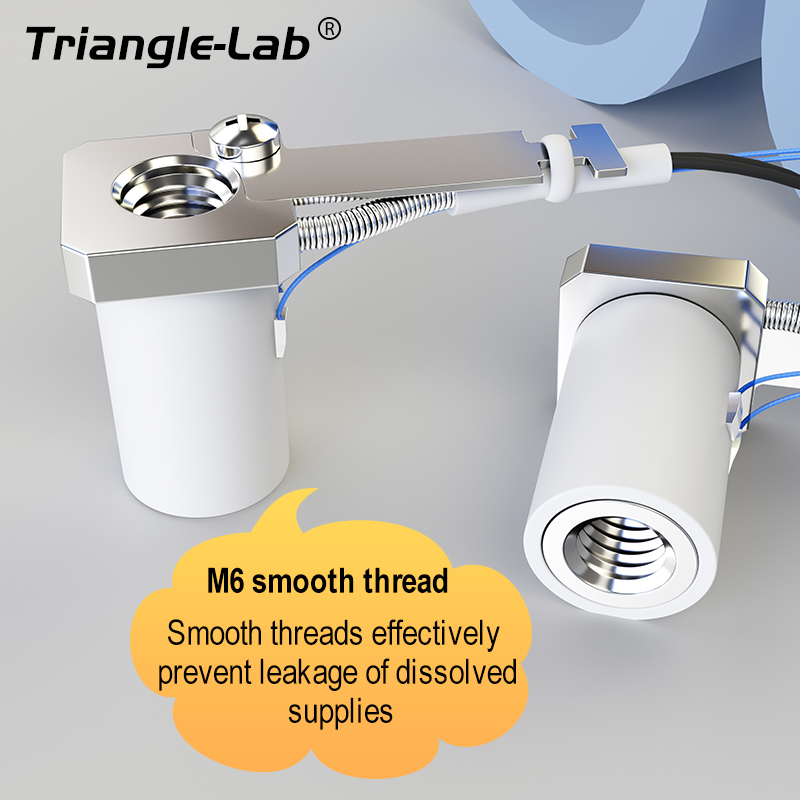

Smooth thread
M6 smooth thread design.
Compatible with any V5/V6/CR10/HEMERA/MATRIX radiator, up to 350℃
degrees Celsius

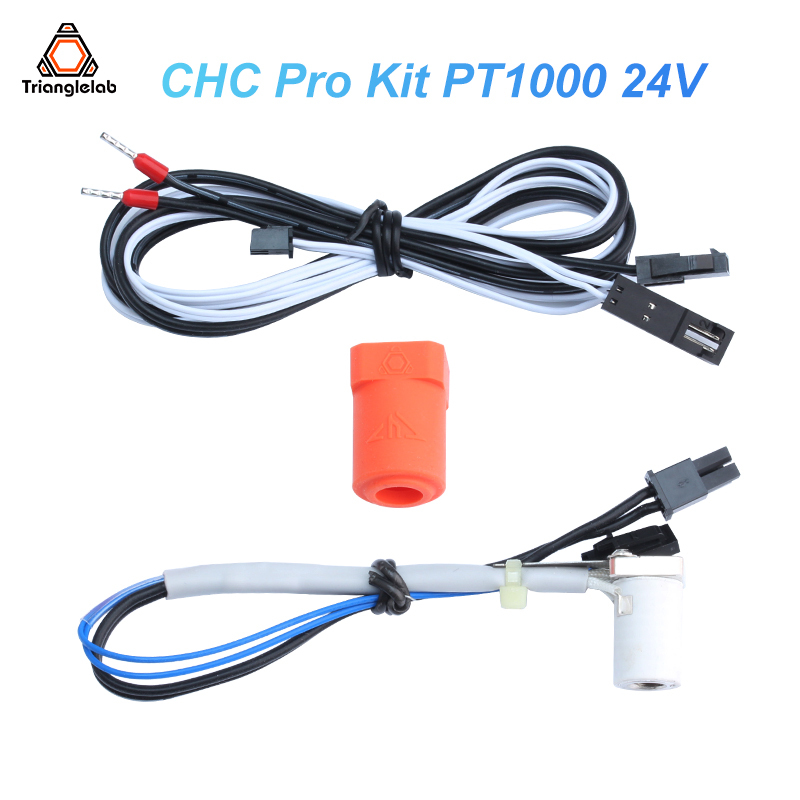

▉What's in the box:
Set2:CHC(Ceramic Heating Core) Pro Kit PT1000 24V

▉Wiring diagram:
