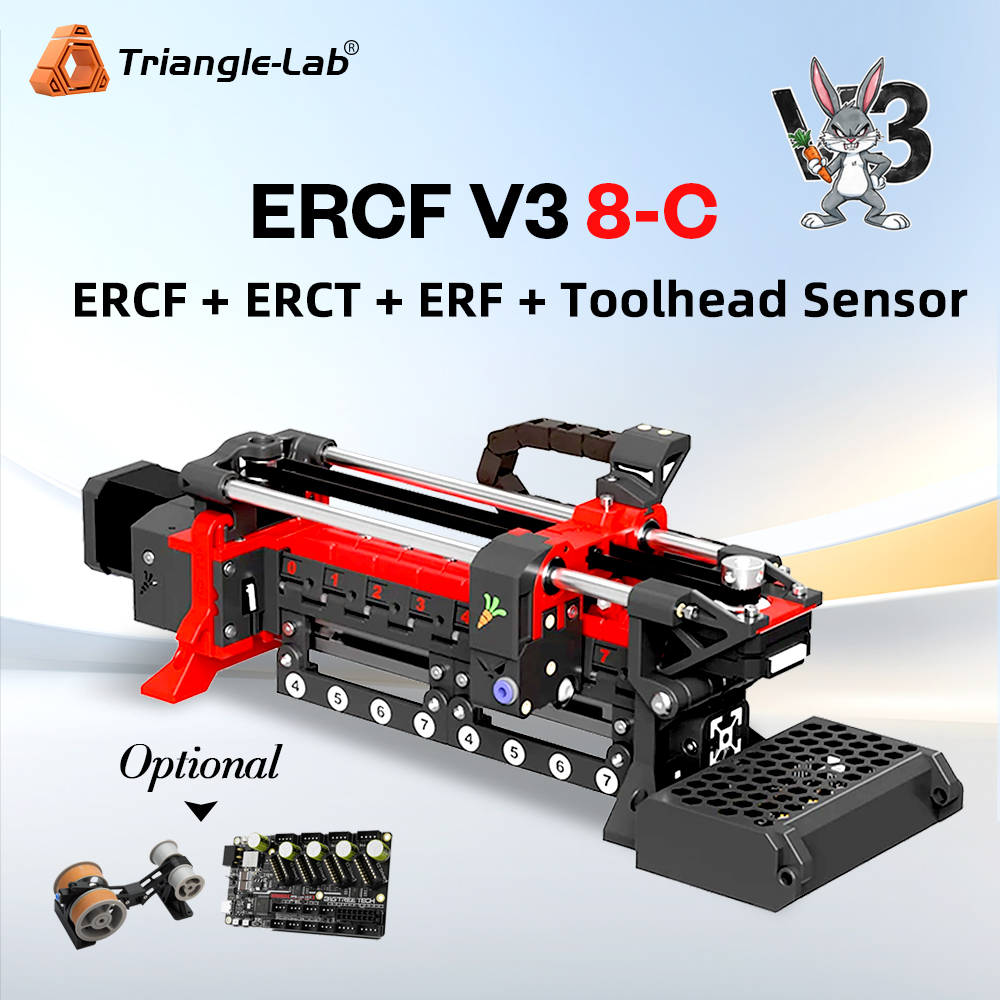

ERCF V3 8 Chanels Full Kit

• Before ordering, please note that all our products do not include tax, you need to declare your own tax!（Except the EU and the US）
• If you need to send UPS/Fedex/TNT/DHL, please contact us. We need to discuss the freight with you.
• Technical questions e-mail：support@trianglelab.net
• Sales questions e-mail：sales@trianglelab.net
• The trianglelab has always been concerned about product quality.We are developing products and working hard to improve the quality.We will not abandon our reputation because of many cheap products on the market.It is believed that only high quality products can ensure the quality of your work and bring safety to your work.
• Some of our products may be more expensive than others,but please believe in our quality and believe that you will not regret when you receive the goods.

▉Name

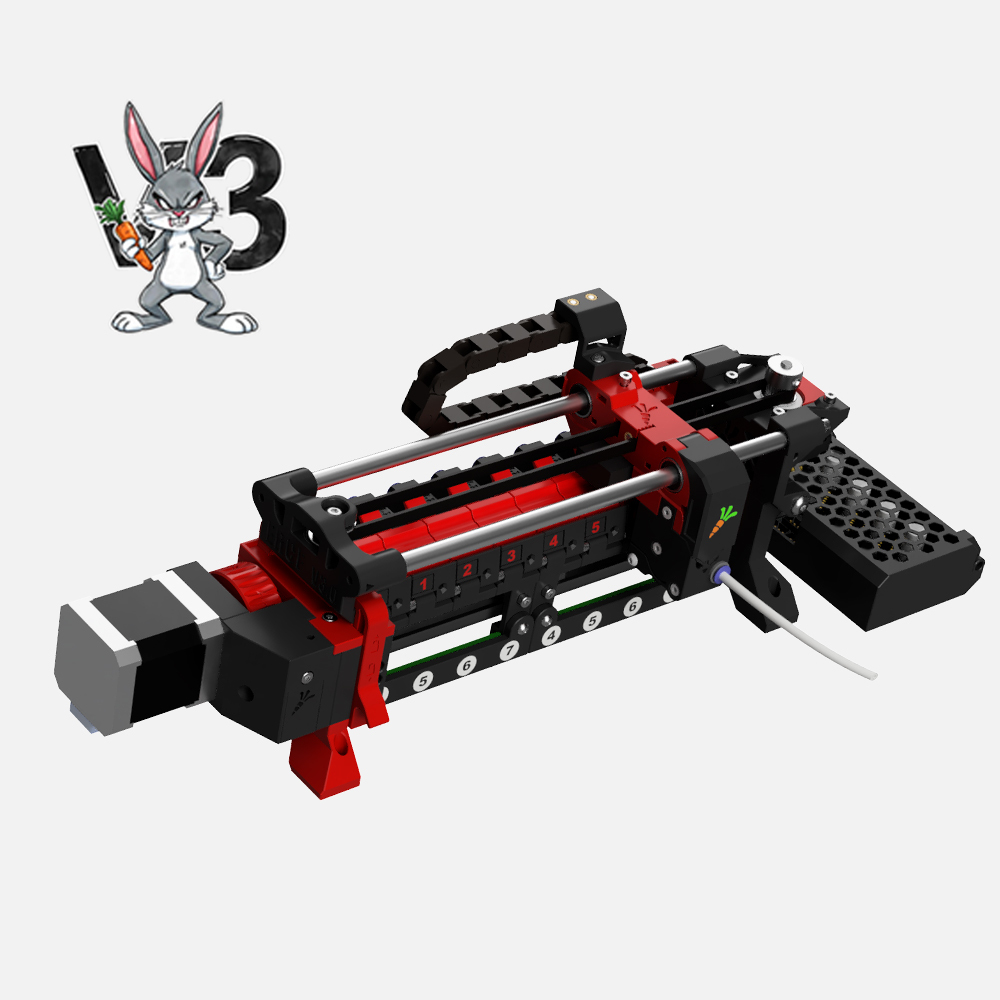

• ERCF V3.0

• An expandable MMU for Klipper-based 3D-Printers

▉More information

• //github.com/Carrot-collective/ERCF v3

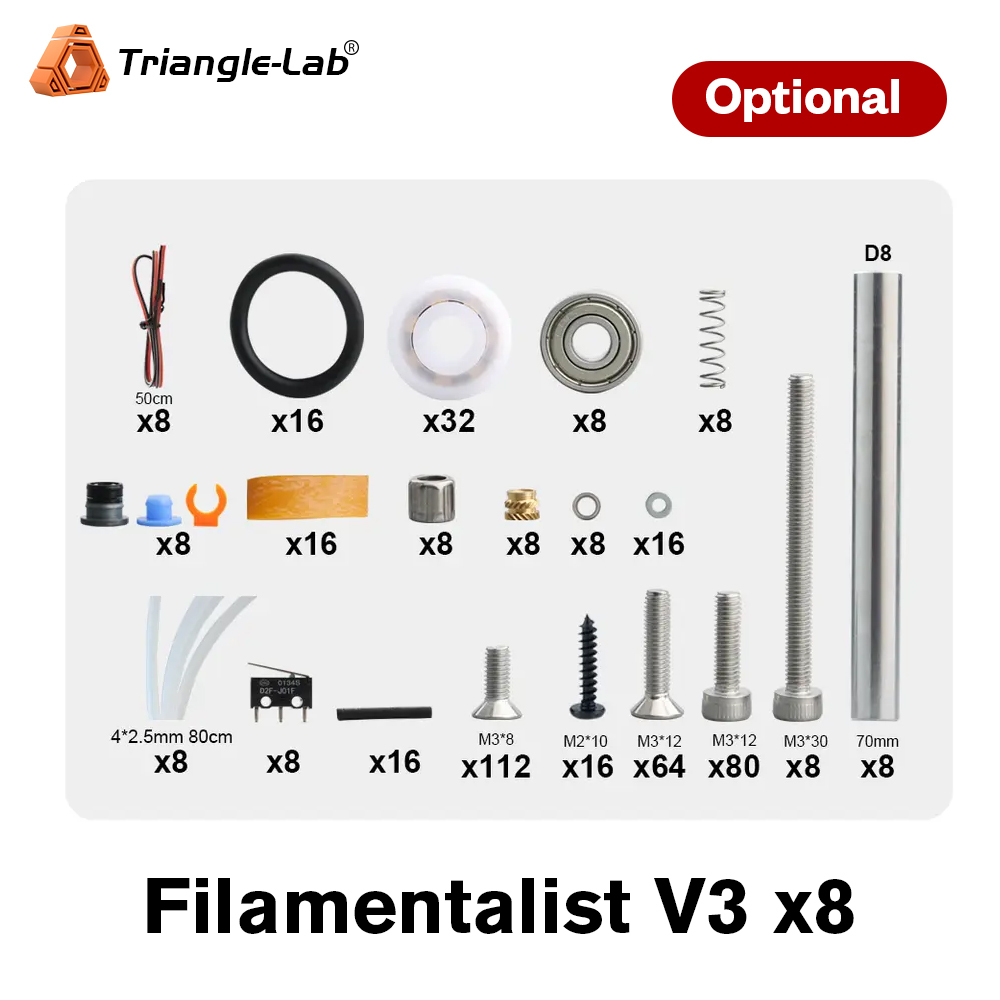

  Optional EnragedRabbit Components

  Introduction

• This is a community-born project and a major update to the Voron ERCF MMU that was started a couple of years ago by Ette. It is endorsed by Ette, and the guiding philosophy wasn't to start again with a new MMU design but to refine what has already proven to be a very capable machine and push it to be the best it can be by simplifying problematic construction, improving reliability and aligning as close as possible to v2.0 BOM. The project includes an optional integrated filament buffer system (ERCT), filament cutter option (ERF), a collection of recommended tool head sensor modifications and a bit of Bling! It fully leverages the Happy Hare firmware MMU control software with Klipper Screen extensions.

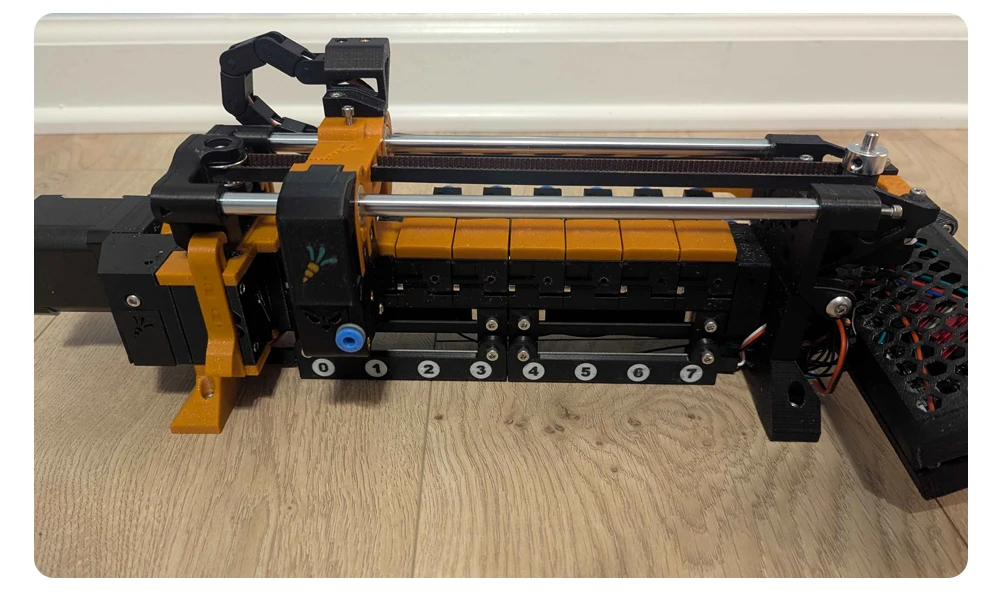

  ERCF

• An MMU or Multimaterial Unit/Upgrade allows for the automatic change of filaments on your 3D printer.

• You can use it to create beautiful multi-colored prints or, if you're lazy, simply to avoid loading filament by hand.

• 1.Sturdy backbone - no more flex

• 2.Reliable (and custom) encoder design

• 3.Sprung servo instead of adjustable top hats

• 4.Innovative Filament trap in blocks instead of magnetic gates

• 5.Formal filament bypass

• 6.Reinforced gearbox assembly

• 7.Beautifully illustrated Manual

• 8.High Quality Step-by-step CAD

• 9.Integrated passive buffer system (Cotton Tail)

• 10.Perfect tips with Filametrix Filament cutter

• 11.Functional and aesthetic LED status indication

  New features inV3.0 include

*The ERB is not recommended for use without an additional external 5V power supply.

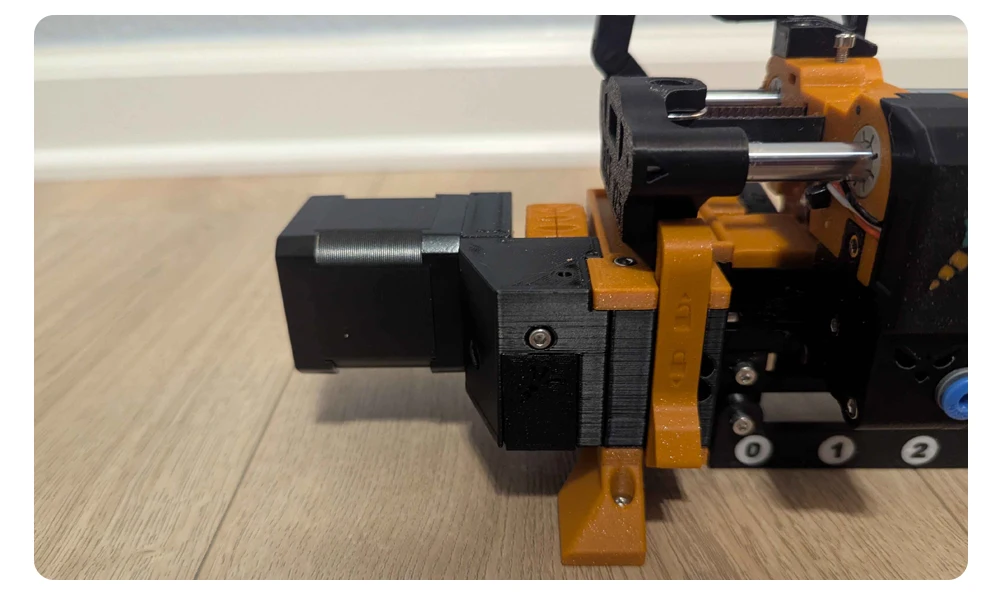

• 1.New Direct Drive motor system optimized for torque and ease of use

• 2.Redesigned Gearbox that supports legacy gearing options for upgraders

• 3.Redesigned high-constraint filament blocks with pregate sensors as a default option

• 4.Many Quality of Life additions such as improved Encoder and Selector Cart

• 5.optional microswitch PCBs which allow solderless installation

• 6.optional LED PCBs which allow solderless installation

• 7.Detailed MMB v1.1 and v2.0 wiring diagrams

• 8.Software Setup Documentation for the most popular boards

• 9.Proper GitHub sections for User Mods, Mounting, and PCBS for the community to ​build upon

• 10.Electronics boxes for the most popular boards: MMBv1 and v2, EasyBRD, ERB*

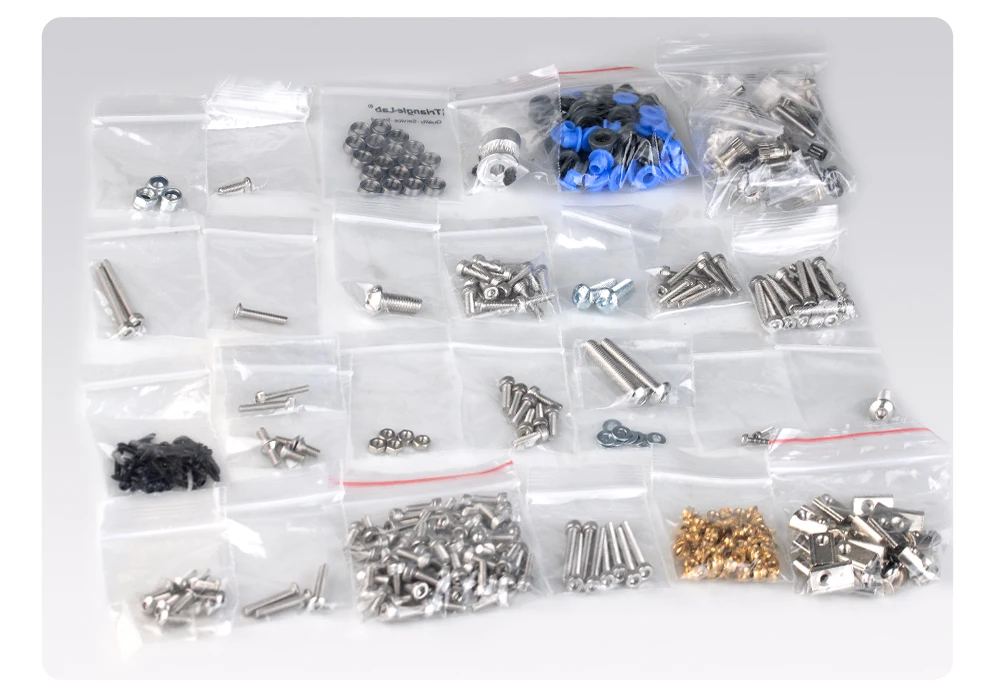

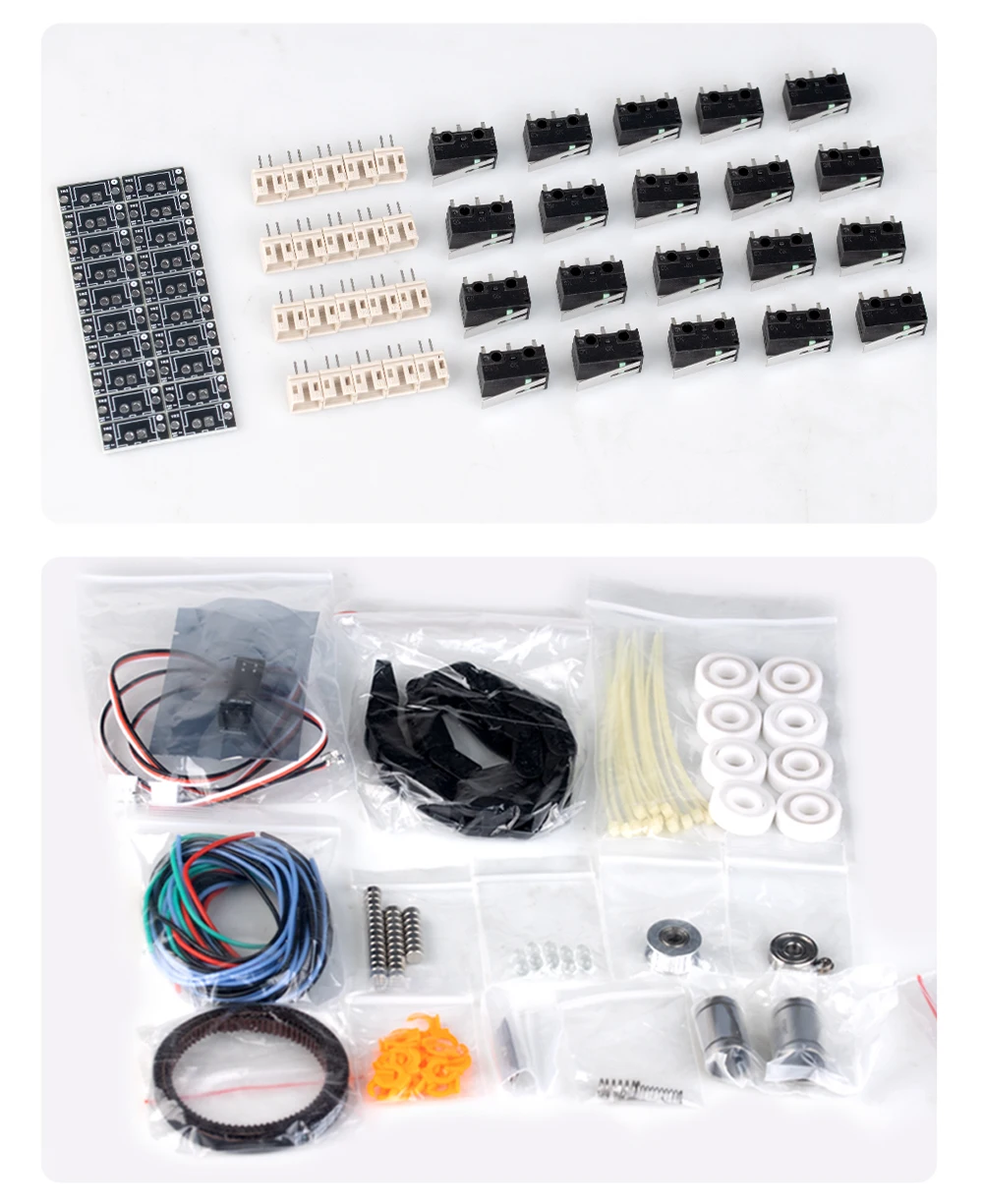

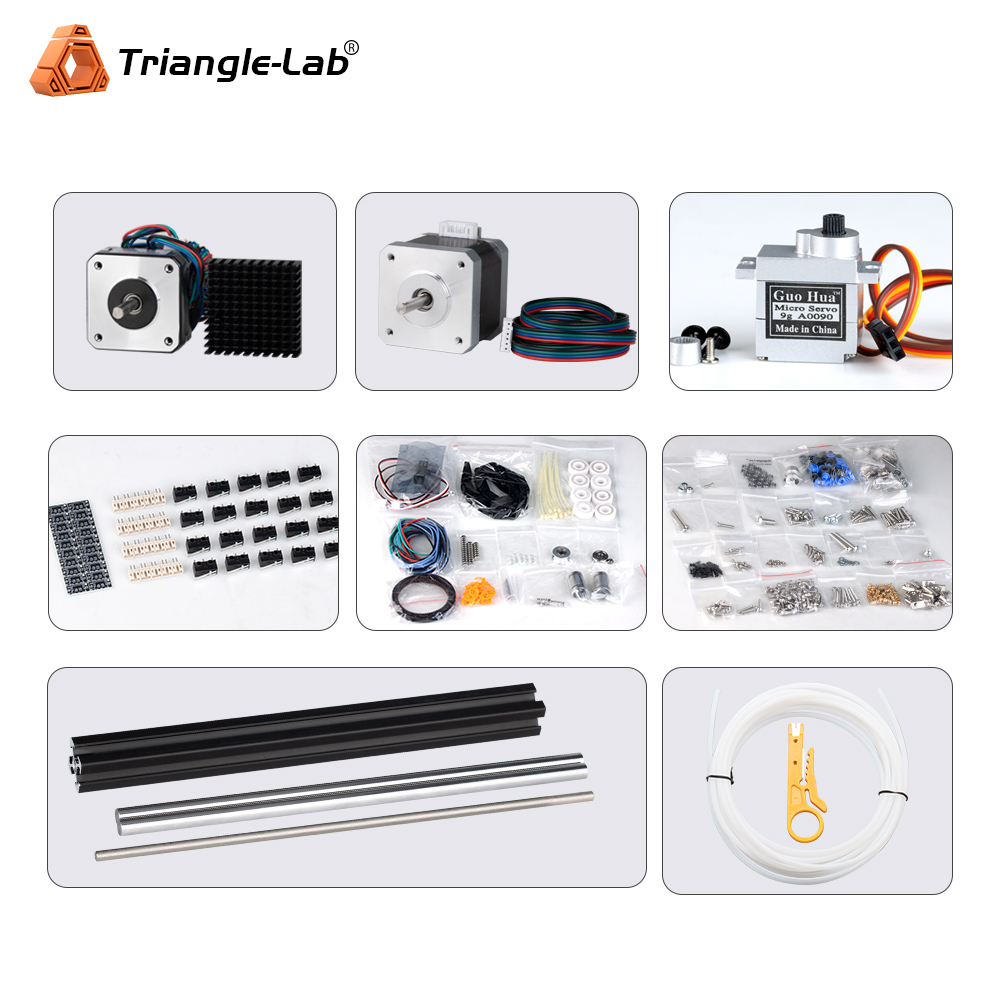

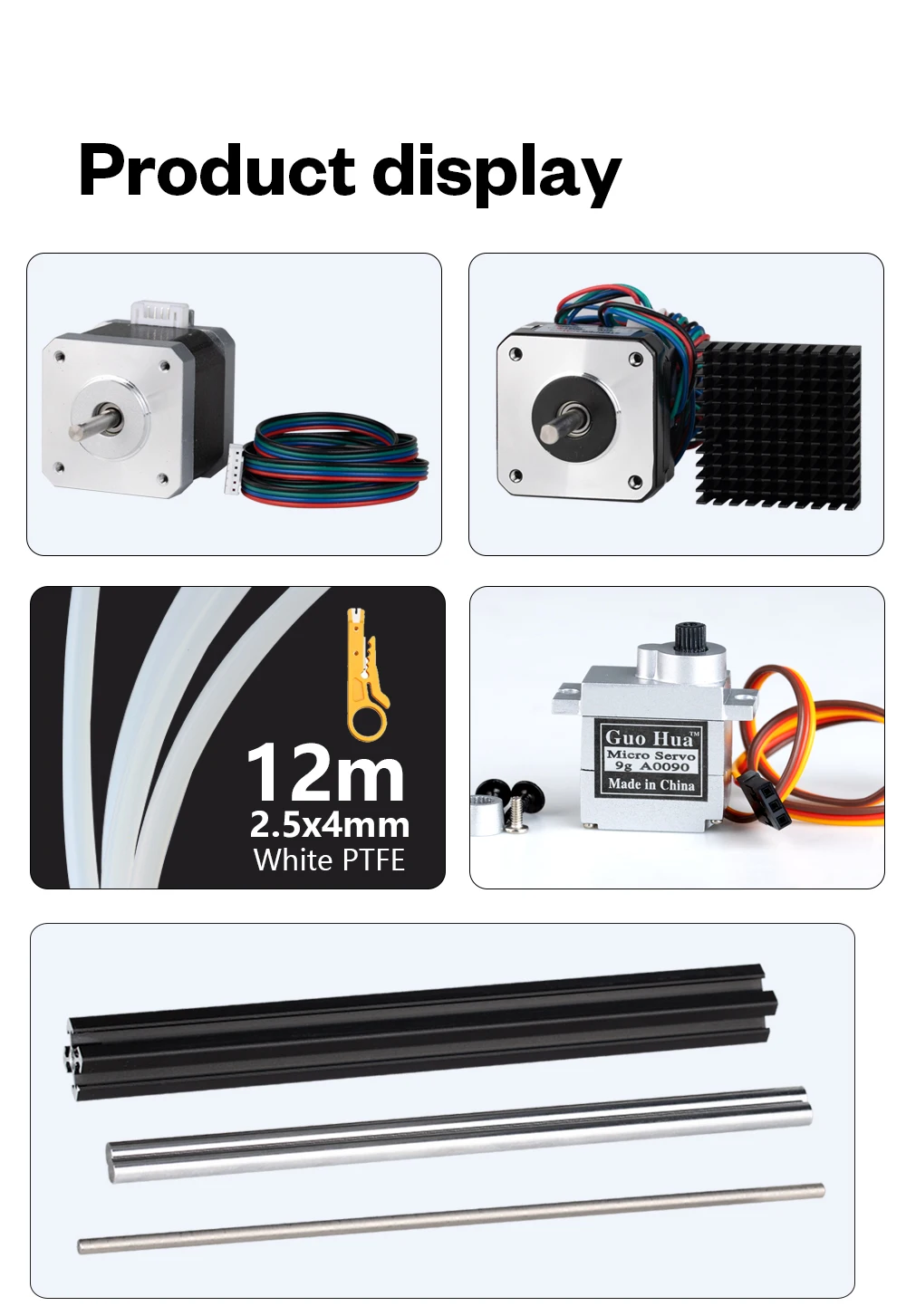

  What's in the set?

​


-
