Galileo 2 Extruder Kit / Z Drive Kit

SKU: CE03G2ETUKIT
Trianglelab LDO Galileo 2 Extruder 9: 1 tooth ratio directly drives extruder for VORON stealthburner afterburner Replace Sherpa
Flash Sale
1 sold
5.0 (1 Reviews)
189 Sold
$53.90 $42.05
-22%
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • SET:
    Galileo 2 Extruder Kit
    Galileo 2 Z Drive Kit
Quantity:
-
+
Add to Favorites (54)
  • Galileo 2 Extruder Kit / Z Drive Kit
  • Galileo 2 Extruder Kit / Z Drive Kit
  • Galileo 2 Extruder Kit / Z Drive Kit
  • Galileo 2 Extruder Kit / Z Drive Kit
  • Galileo 2 Extruder Kit / Z Drive Kit
  • Galileo 2 Extruder Kit / Z Drive Kit
  • Galileo 2 Extruder Kit / Z Drive Kit
  • Galileo 2 Extruder Kit / Z Drive Kit
  • Galileo 2 Extruder Kit / Z Drive Kit
  • Galileo 2 Extruder Kit / Z Drive Kit
  • Galileo 2 Extruder Kit / Z Drive Kit
  • Galileo 2 Extruder Kit / Z Drive Kit
  • Galileo 2 Extruder Kit / Z Drive Kit
  • Galileo 2 Extruder Kit / Z Drive Kit
  • Galileo 2 Extruder Kit / Z Drive Kit
  • Galileo 2 Extruder Kit / Z Drive Kit
1/1
  • Galileo 2 Extruder Kit / Z Drive Kit
  • Galileo 2 Extruder Kit / Z Drive Kit
  • Galileo 2 Extruder Kit / Z Drive Kit
  • Galileo 2 Extruder Kit / Z Drive Kit
  • Galileo 2 Extruder Kit / Z Drive Kit
  • Galileo 2 Extruder Kit / Z Drive Kit
  • Galileo 2 Extruder Kit / Z Drive Kit
  • Galileo 2 Extruder Kit / Z Drive Kit

ABOUT TAX

Prices for the US and EU are tax-inclusive. All prices are tax-exclusive.  For other countries/regions,（Except the EU and the US） import duties, VAT, and other charges are the recipient’s responsibility upon customs clearance.Any delays, returns, or fees resulting from failure to pay duties and taxes shall be borne by the recipient.
ABOUT TAX
Frequently Bought Together
more
Frequently Bought Together
  • Description

  • Before ordering, please note that all our products do not include tax, you need to declare your own tax!

  • If you need to send UPS/Fedex/TNT/DHL, please contact us. We need to discuss the freight with you.

  • Technical questions e-mail：support@trianglelab.net

  • Sales questions e-mail：sales@trianglelab.net

  • The trianglelab has always been concerned about product quality.We are developing products and working hard to improve the quality.We will not abandon our reputation because of many cheap products on the market.It is believed that only high quality products can ensure the quality of your work and bring safety to your work.

  • Some of our products may be more expensive than others,but please believe in our quality and believe that you will not regret when you receive the goods.

▊Name:Galileo 2

▊Galileo 2 Z Drive Kit

▊Advantages
Galileo 2 offers over Galileo 1, here's a shortlist of benefits:
Galileo 2 is a full redesign, moving to a 9:1 gear ratio and optimizing the gearbox design over Galileo 1. No parts from Galileo 1 are reused with Galileo 2.
Custom 9T stepper with a taller spur gear resulting in 20% higher contact surface area than existing 10T stepper designs, resulting in better wear characteristics and power transfer.
Proper meshing of gears due to number of stepper teeth being divisible by number of planets (9T sun / 3 planets), which gives even loading on the planets / sun gear and improves wear characteristics and power transfer. Previous designs with 10T steppers had uneven loading on the planet gears.

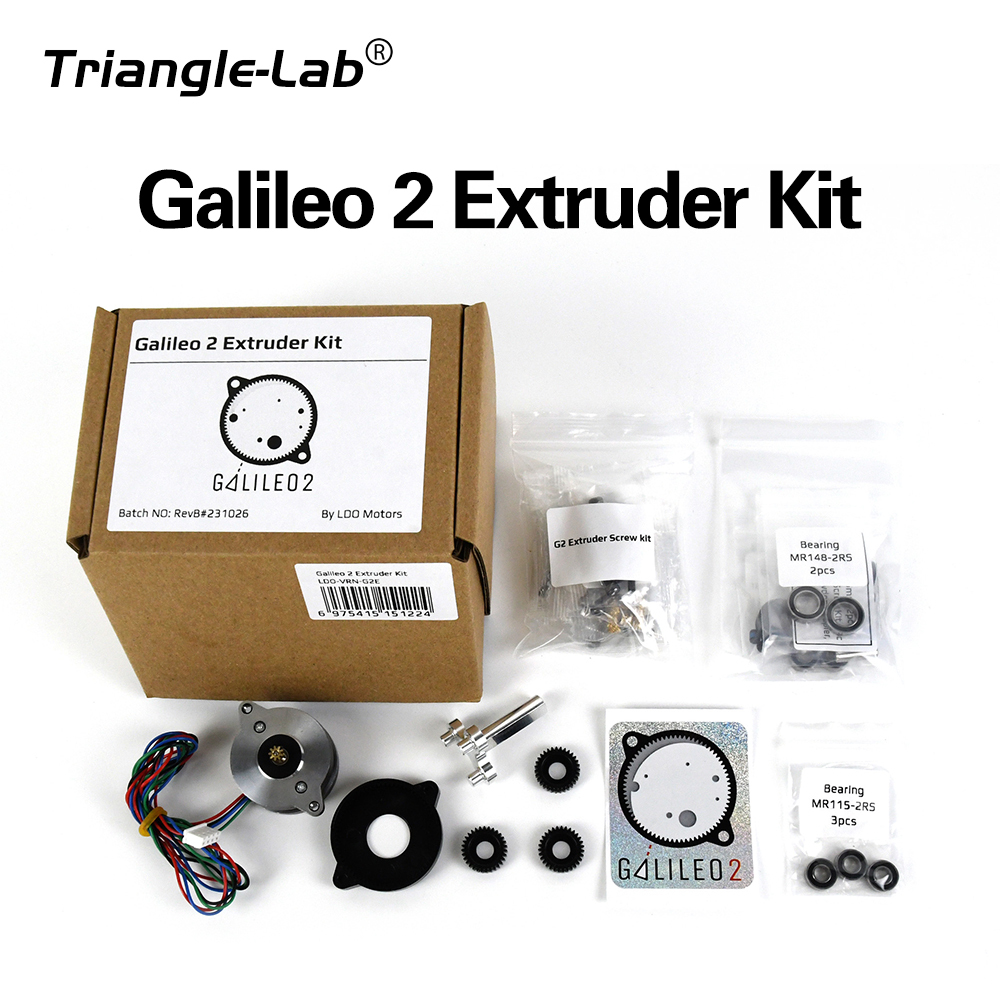

▊Galileo 2 Extruder Kit
The Galileo 2 Extruder (G2E) is designed as a drop-in replacement for Voron printers utilizing the Stealthburner toolhead.
G2E features a custom large drive gear (16mm diameter) mated to an idler bearing to help prevent extruder artifacting due to gear meshing,
and because it features a planetary gearbox, there's no issue with gear meshing vibrations/noise found with improperly adjusted CW2 extruders.

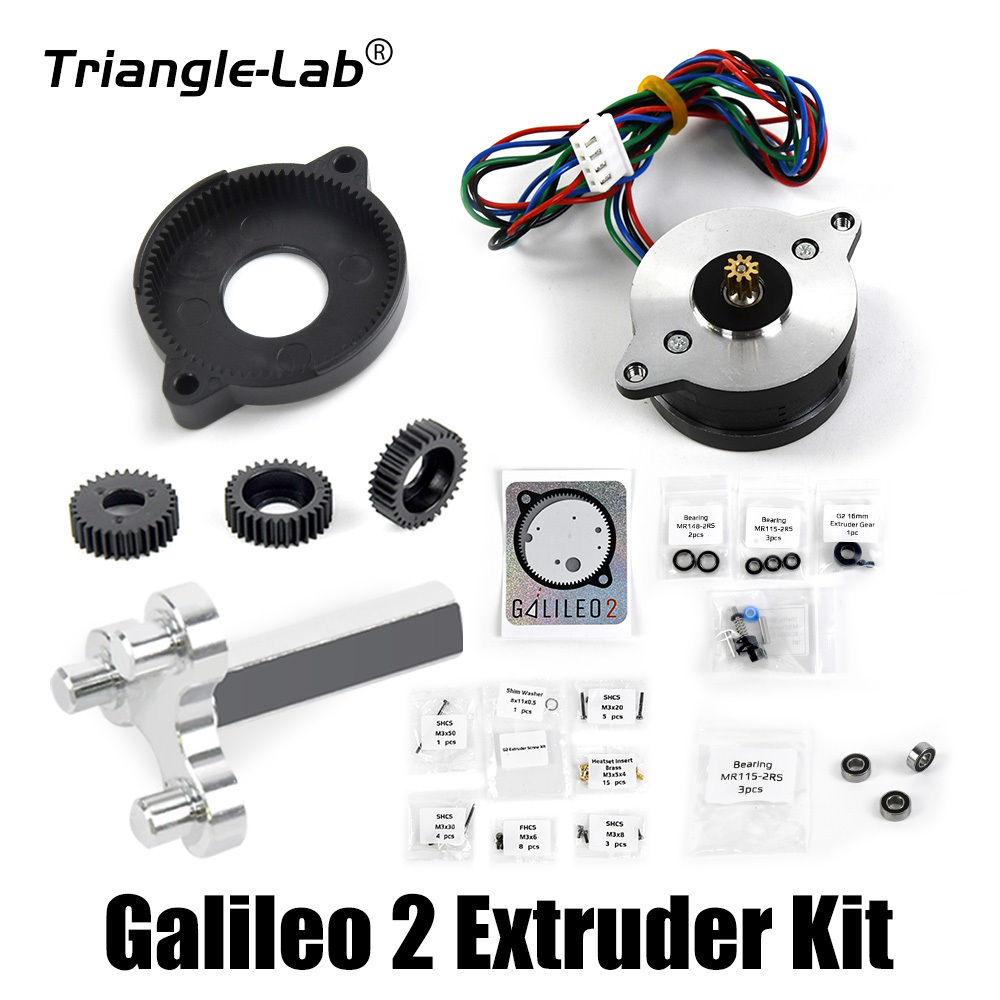

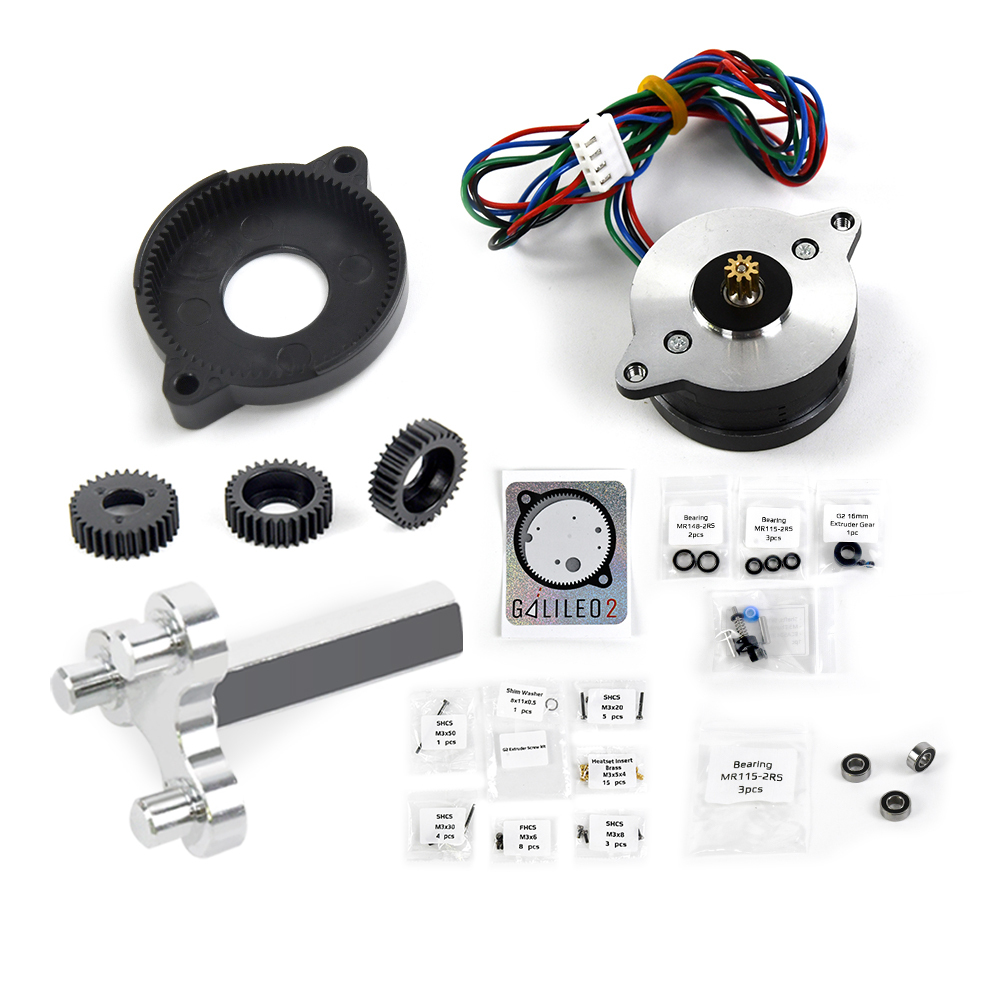

▊What' s in the package?

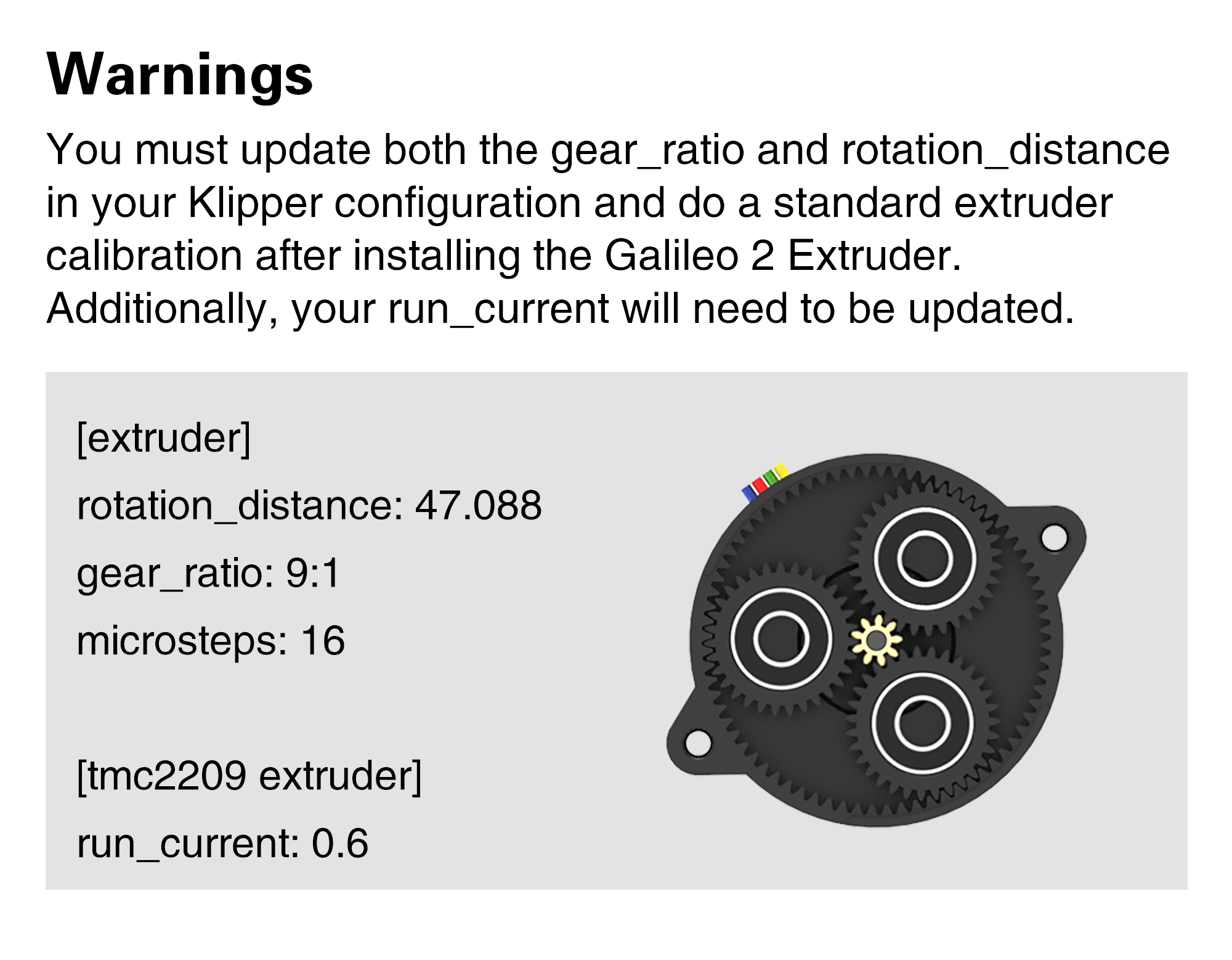

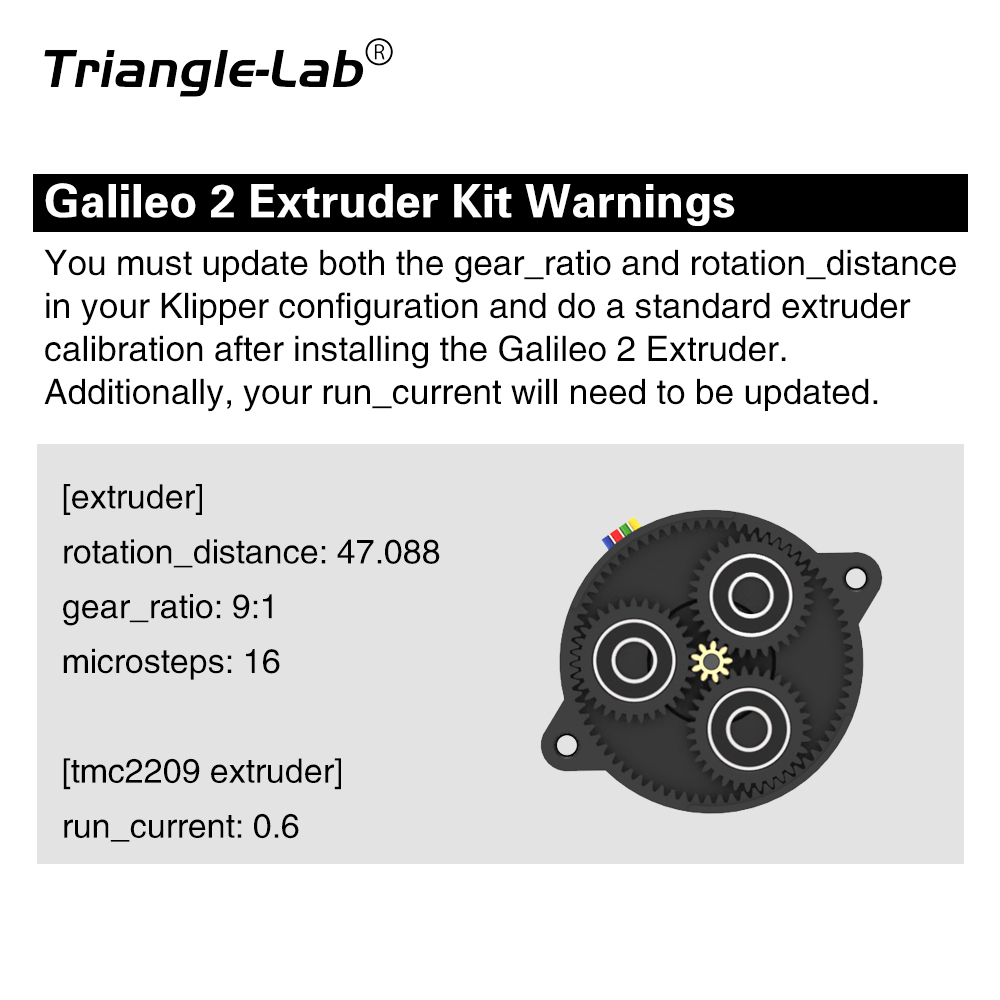

▊Warnings
You must update both the gear_ratio and rotation_distance in your Klipper configuration and do a standard extruder calibration after installing the Galileo 2 Extruder.
Additionally, your run_current will need to be updated.
[extruder]
rotation_distance: 47.088
gear_ratio: 9:1
microsteps: 16
[tmc2209 extruder]
run_current: 0.6

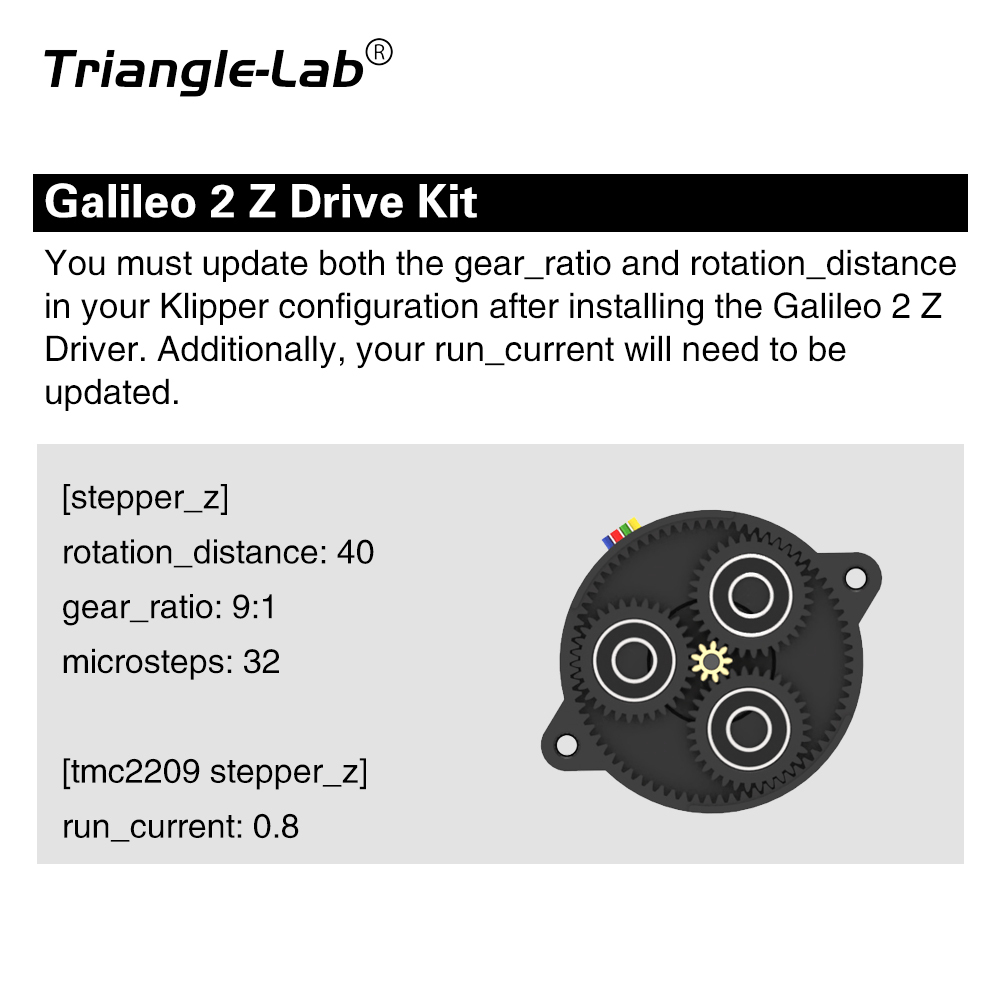

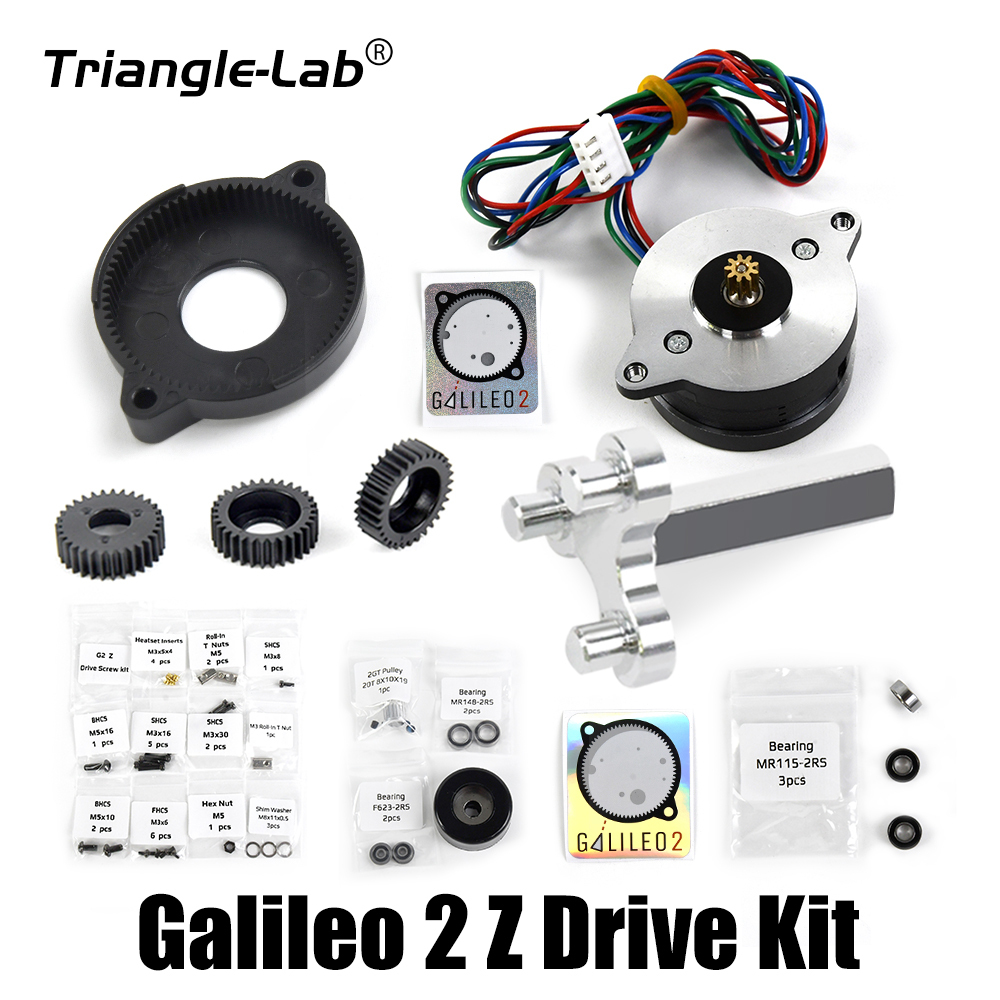

▊Galileo 2 Z Drive Kit

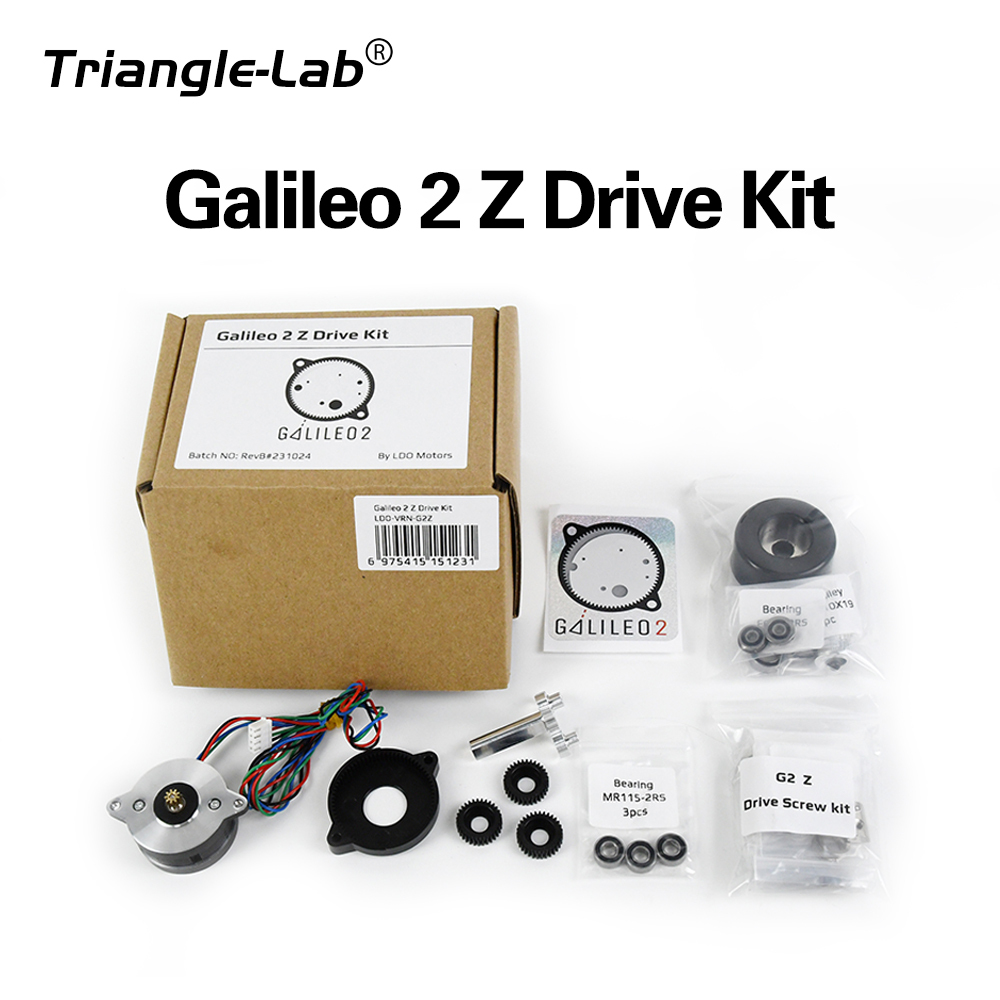

What' s in the package?

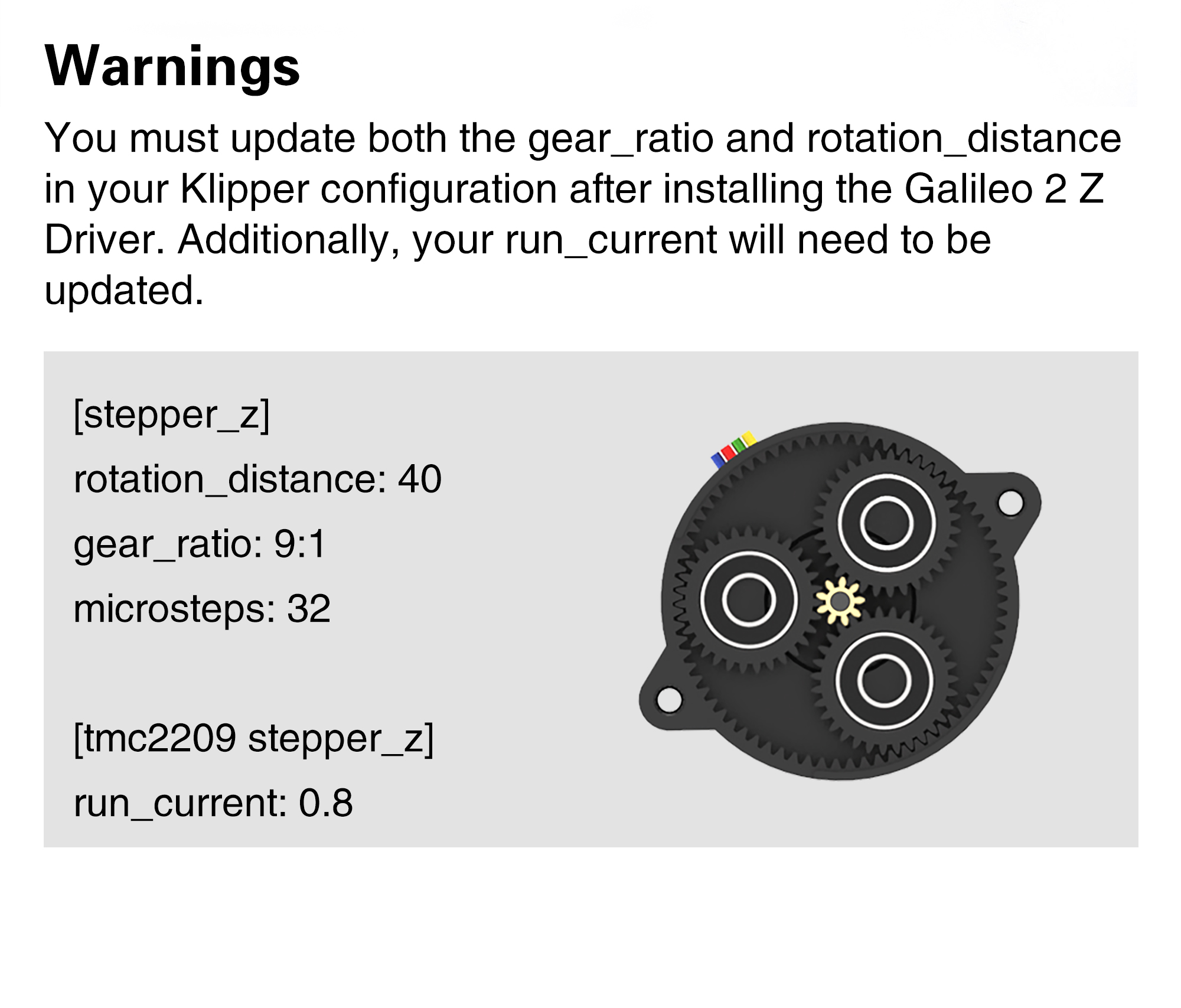

▊Warnings
You must update both the gear_ratio and rotation_distance in your Klipper configuration after installing the Galileo 2 Z Driver.
Additionally, your run_current will need to be updated.
[stepper_z]
rotation_distance: 40
gear_ratio: 9:1
microsteps: 32
[tmc2209 stepper_z]
run_current: 0.8
