Before ordering, please note that all our products do not include tax, you need to declare your own tax!
-
If you need to send UPS/Fedex/TNT/DHL, please contact us. We need to discuss the freight with you.
-
Technical questions e-mail：[email protected]
-
Sales questions e-mail：[email protected]
-
The trianglelab has always been concerned about product quality.We are developing products and working hard to improve the quality.We will not abandon our reputation because of many cheap products on the market.It is believed that only high quality products can ensure the quality of your work and bring safety to your work.
-
Some of our products may be more expensive than others,but please believe in our quality and believe that you will not regret when you receive the goods.
▉About Logistics Description:
Because the package contains strong magnets, ordinary logistics cannot be transported. So no matter which kind of logistics you choose. We will modify the logistics you choose. The package will be transported by air transportation of special dangerous goods, or other logistics. We will ensure that your package arrives as soon as possible. Thanks for your trust.
▉Name:

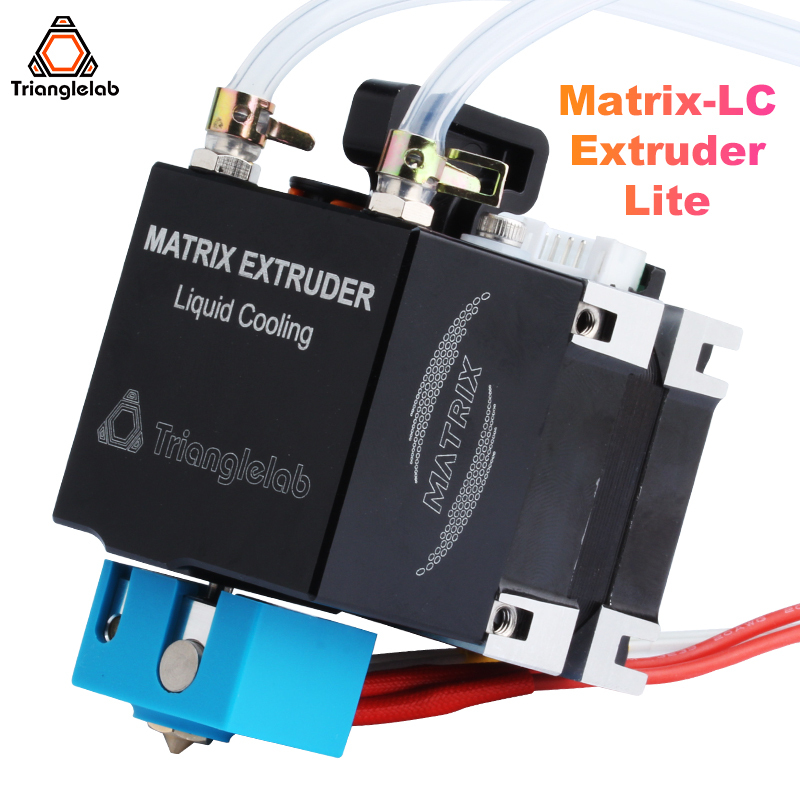

Triangle Lab - Matrix-LC Lite Extruder
▉Highlight:·120℃chamberworking temperature Guaranteed！·Hotside upgradable to 450°C·High temperature resistant motor wires·Dual drive with adjustable tension idler·Very short filament path·Compact extrusion system▉Coolant Selection:·Antifreeze/Coolant for cars （cheap and easy to get）·Coolant for PC（overpriced not recommend）▉Installation guide:https://drive.google.com/drive/folders/1BaA0yB884PwnFRJbrZf9LXR3cdbqjpFT?usp=sharing▉Compatible:Compatible with PrusaCompatible with Ender 3 /3 PRO/ 5Compatible with CR-10/CR-10SOther models can find brackets here. Search for the term HE?ER?(Sorry I have to cover this term. You should know how to search.)Because of the shortened length. Therefore, the LITE version can only lock 2 screws.But this will not affect your use.In our guide, we shared several common printer brackets (for Matrix LC LITE).Please remember to check.https://www.thingiverse.com/▉Summary:Drive type: Dual drive with adjustable tension idlerMax printing temperature: 285°C(upgradable to 450°C)Mass: 284g(including hotside)Nominal steps per mm(16x): 335.4 steps per mm(further calibration required)Motor current: 1.23Filament diameter and tolerances: 1.75±0.05mm
Max pushing force: 6.1kg Generic PLA 10mm/min @24V Driver
▉Size:
▉Note:
Matrix-LC Lite Heatbreak M4Thread(Please Note. This is different from the Matrix Lite air-cooled version)
If you buy M4 Thread HEATBREAK, please click here.
▉Hotside Compatibility:V6 / Volcano / Super Volcano.▉Electrical:Heater power 40W 12/24V optionalThermistor Semitec 104NT-4-R025H42G▉Motor:
▉What's in the box:
Trianglelab -Matrix-LC Lite ExtruderX 1

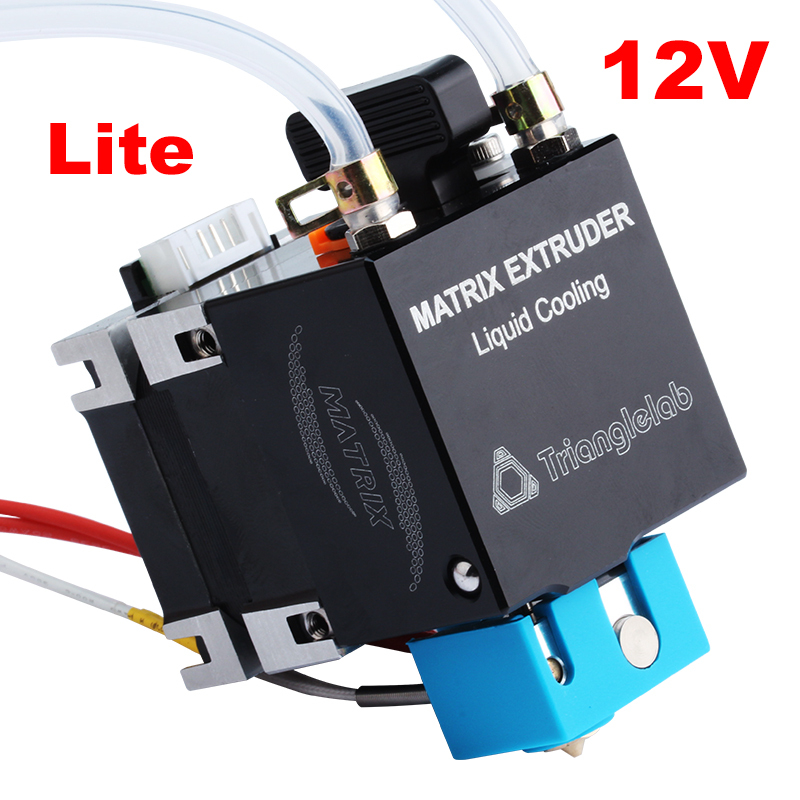

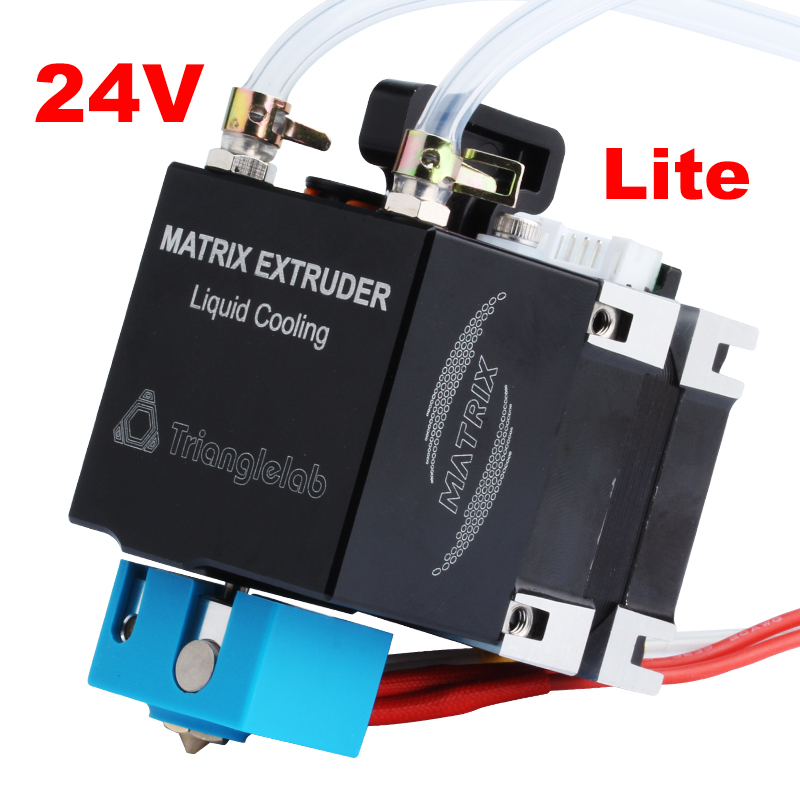

*Friendly reminder. Choose the right voltage*
MATRIX-LC LITE EXTRUDER PACKAGING LISTMatrix-LC Lite Extruder (pre-assembled) x1M3 square nuts x6M3x12 screw x3M3x10 screw x8M3x8 screw x8M3x6 screw x8M3 spring washer x8Hi-temp Extruder motor cables 90cm with connector x1Thermistor ATC Semitec 104NT-4-R025H42G x140W Heater cartridge (12/24V optional) x1Silicone Rubber Tube OD5 ID3MM L=200CM x1Spring Hose Clip x4Silicone Socks for heater blcok x1Heater block x10.4mm Nozzle Brass x1Allen key set (1.5 2.0 2.5) x1Wrench-8mm x1Zip-ties x3Filament guide tube 10cm x1Thermal paste x1Thermistor cartridge shell x1▉Weight:

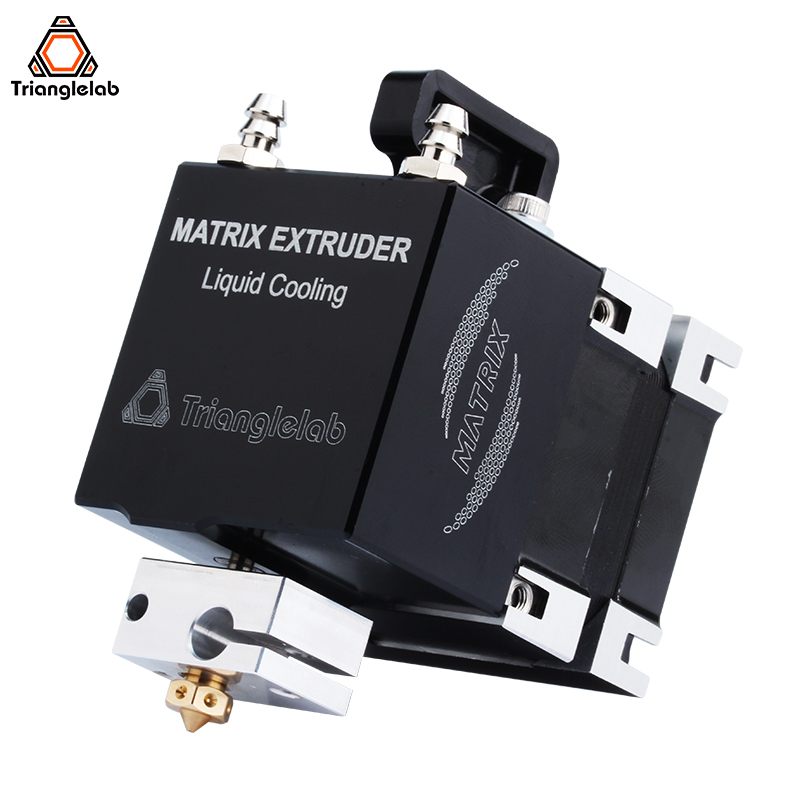

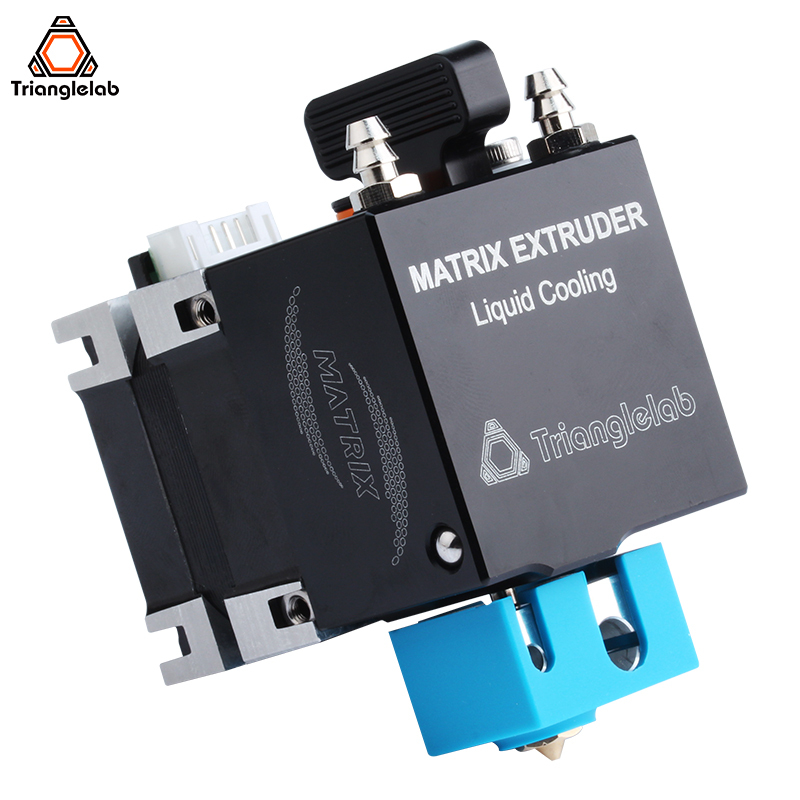

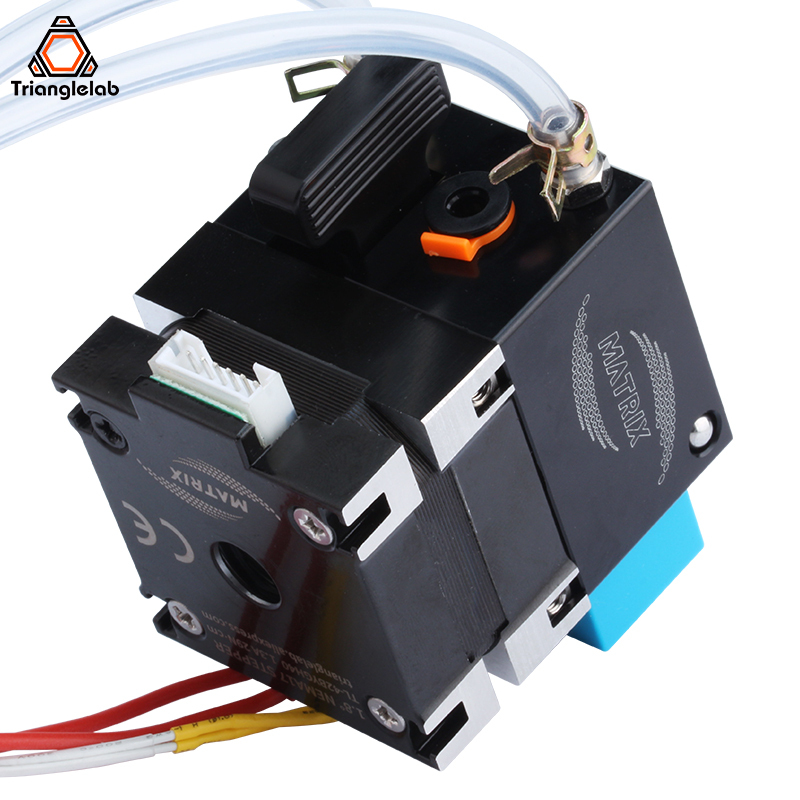

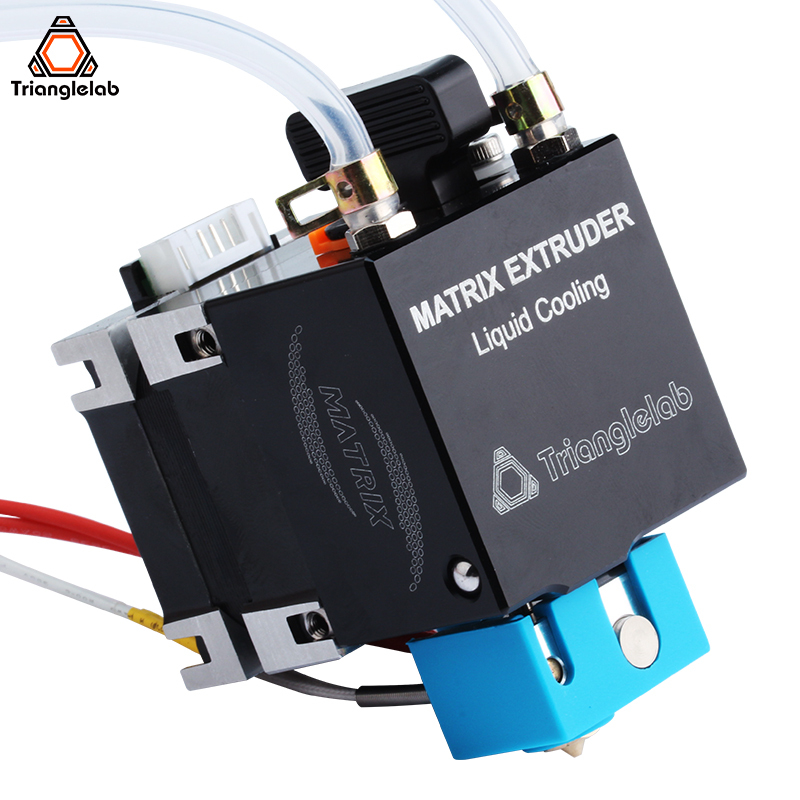

▉Photo display:
▉Test machine printing effect display:
*The machine models participating in the test are:
A:Ender 3
B:CR-10S
C:X1
