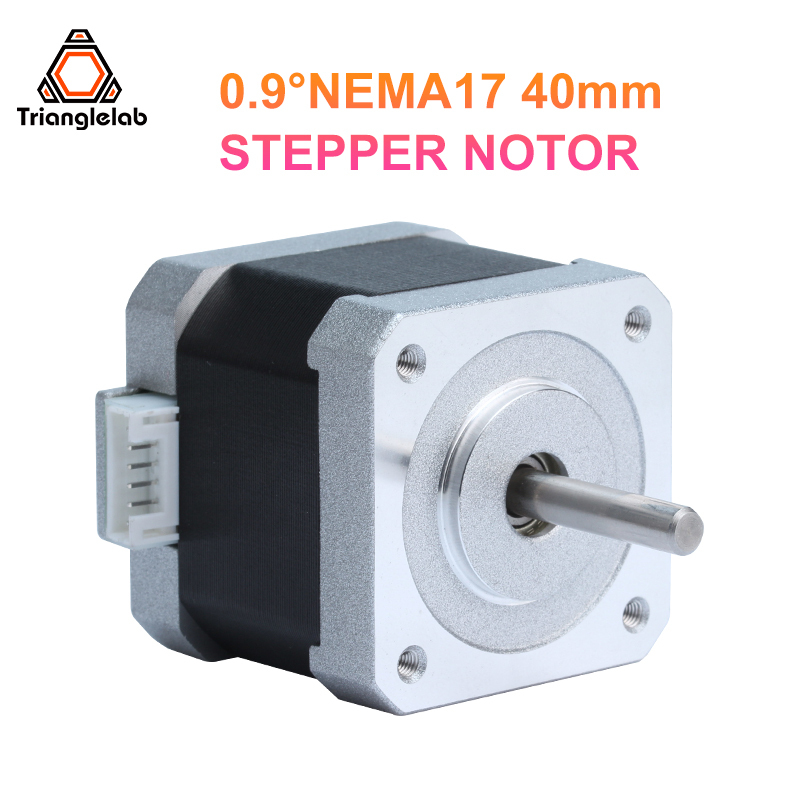

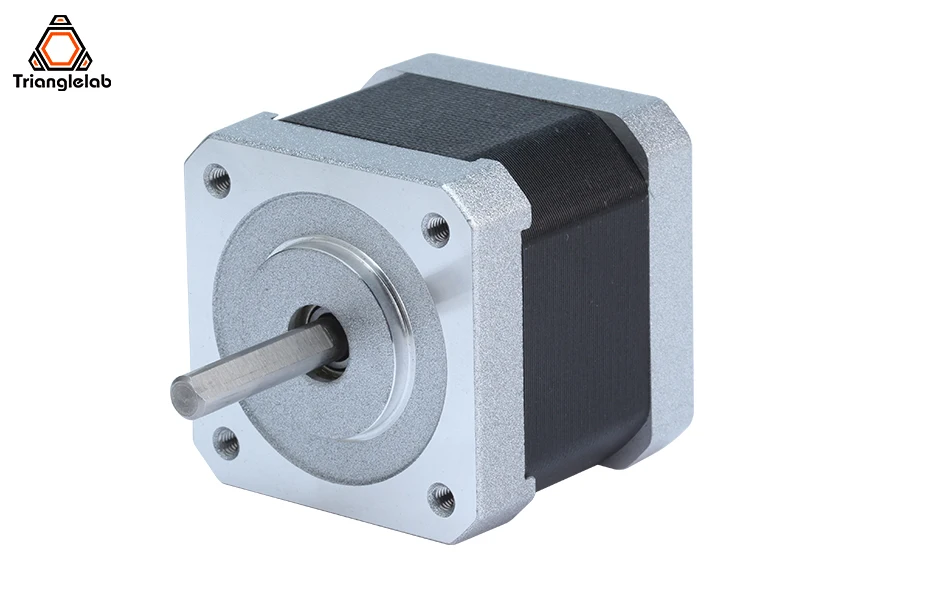

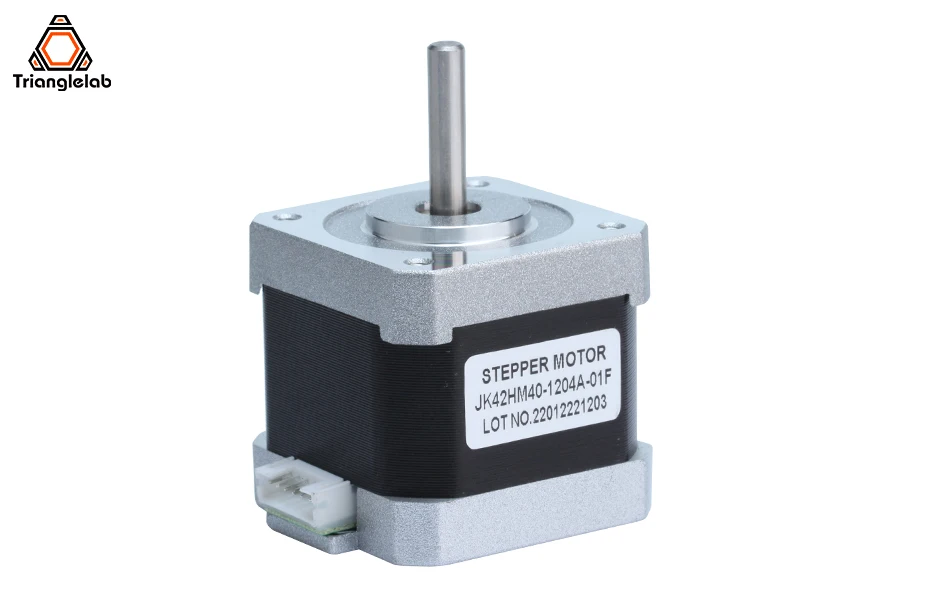

NEMA17 0.9 Stepper Motor

SKU:
Trianglelab 1PC Custom NEMA17 0.9 Stepper Motor L40MM for Extruder For 3D Printer 1.68A
Limited Offer!
0.0 (0 Reviews)
0 Sold
$12.31 $9.61
-22%
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
Add to Favorites (0)
  • NEMA17 0.9 Stepper Motor
  • NEMA17 0.9 Stepper Motor
  • NEMA17 0.9 Stepper Motor
  • NEMA17 0.9 Stepper Motor
  • NEMA17 0.9 Stepper Motor
  • NEMA17 0.9 Stepper Motor
  • NEMA17 0.9 Stepper Motor
  • NEMA17 0.9 Stepper Motor
  • NEMA17 0.9 Stepper Motor
  • NEMA17 0.9 Stepper Motor
1/1
  • NEMA17 0.9 Stepper Motor
  • NEMA17 0.9 Stepper Motor
  • NEMA17 0.9 Stepper Motor
  • NEMA17 0.9 Stepper Motor
  • NEMA17 0.9 Stepper Motor

ABOUT TAX

Prices for the US and EU are tax-inclusive. All prices are tax-exclusive.  For other countries/regions,（Except the EU and the US） import duties, VAT, and other charges are the recipient’s responsibility upon customs clearance.Any delays, returns, or fees resulting from failure to pay duties and taxes shall be borne by the recipient.
ABOUT TAX
Frequently Bought Together
more
Frequently Bought Together
  • Description
▉About logistics description:
Because the package contains strong magnets, ordinary logistics cannot be transported. So no matter which kind of logistics you choose. We will modify the logistics you choose. The package will be transported by air transportation of special dangerous goods, or other logistics. We will ensure that your package arrives as soon as possible. Thanks for your trust.
If you did not choose a magnetic product. Then your transportation will not be changed to a magnetic transportation route.
▉Description:
• NEMA 17
• Body Length: 40MM
• Holding Torque: 3.0 kg.cm
• Step Angle: 0.9°
• Phase current: DC 1.2 A/Phase
• 4 Port Connector Standard
• Phase Resistance: 3.4Ω±10%(20℃）
• Phase Inductance: 6.7mH
• Ambient Temperature: -20 to +50C
• Weight: 240g

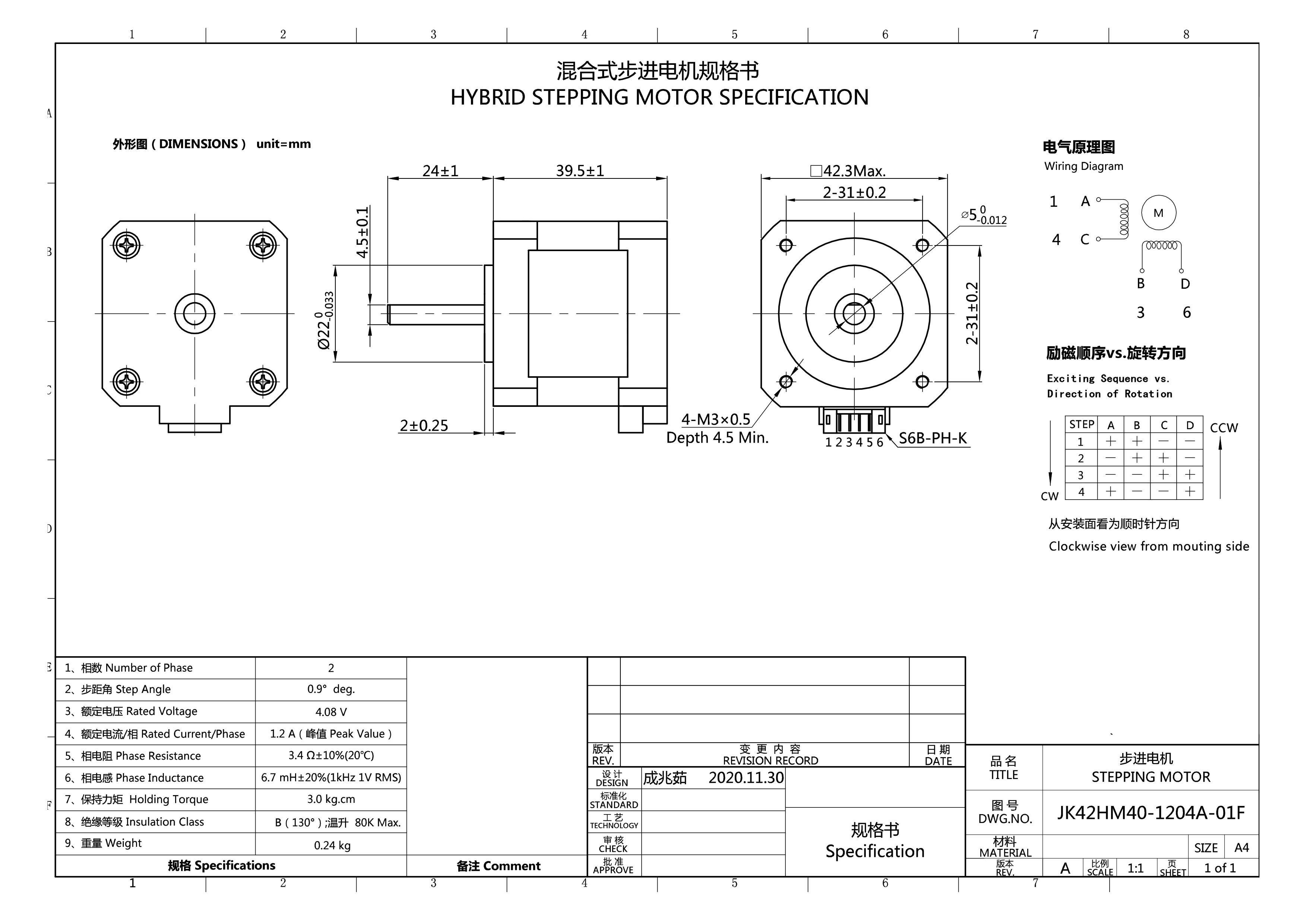

▉Dimension:

▉Display:
