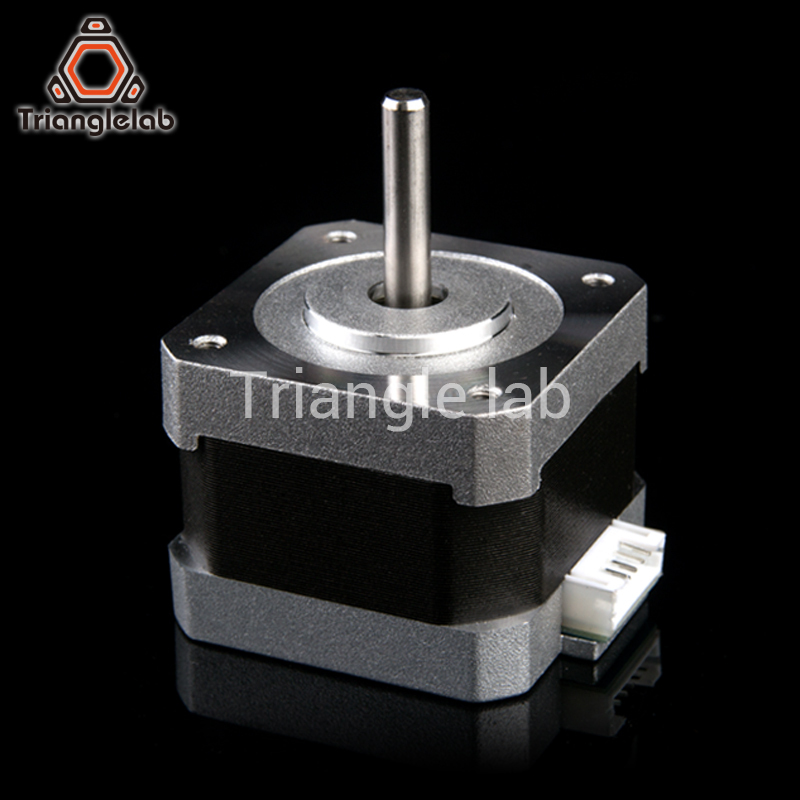

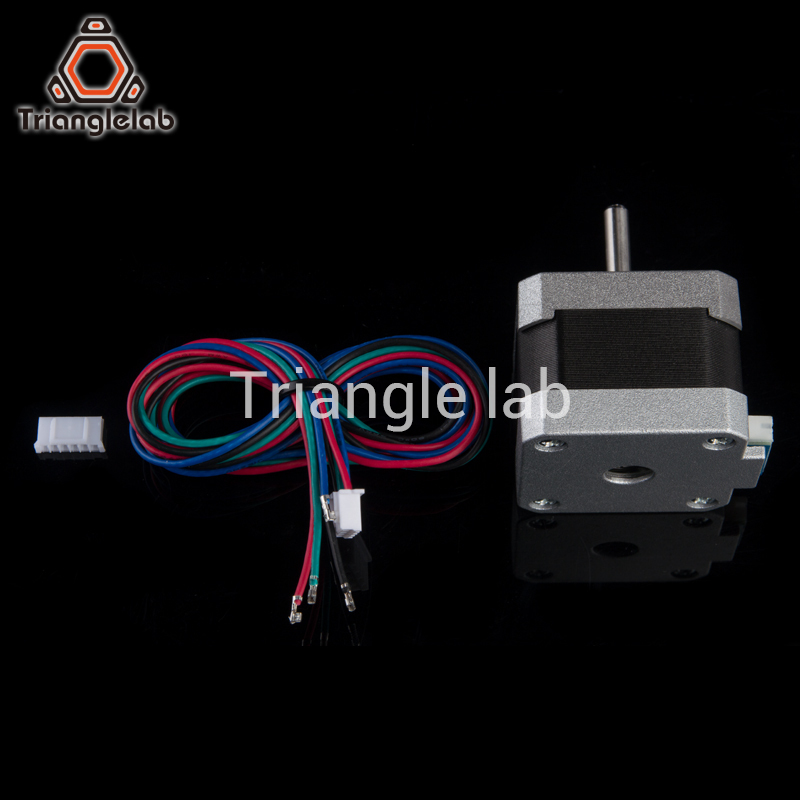

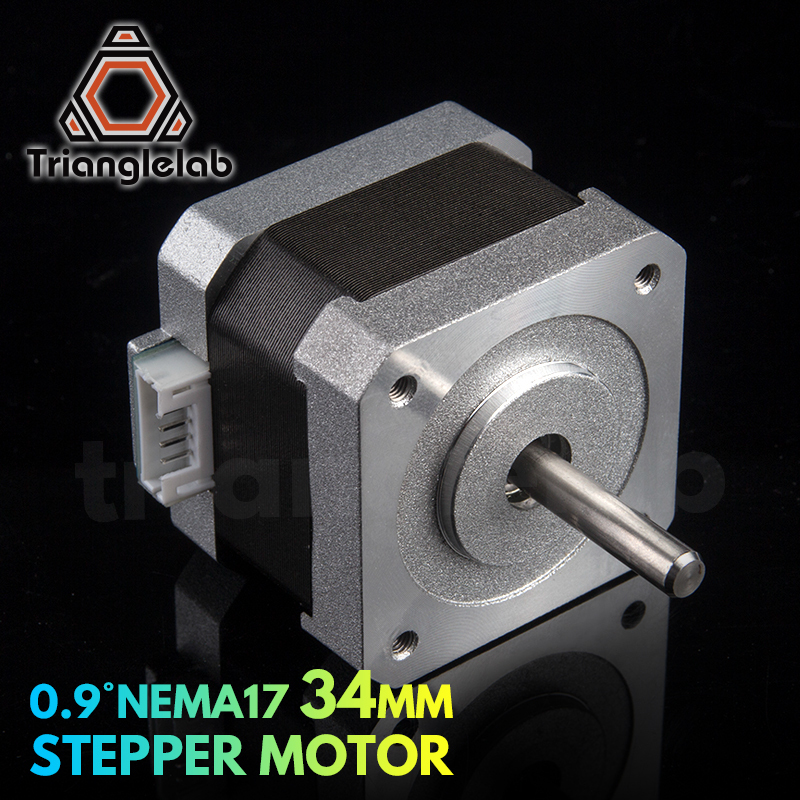

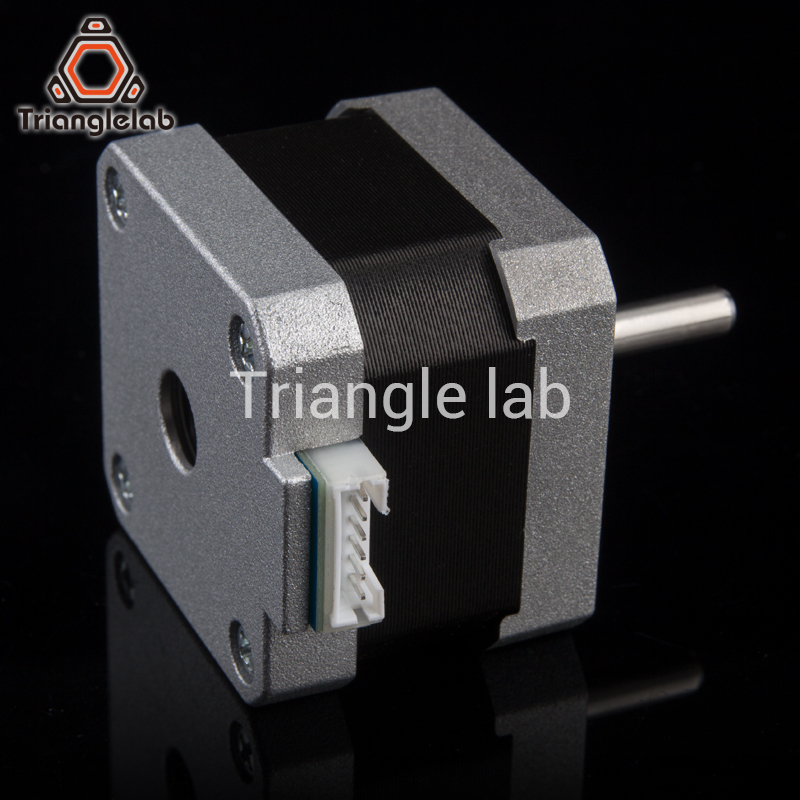

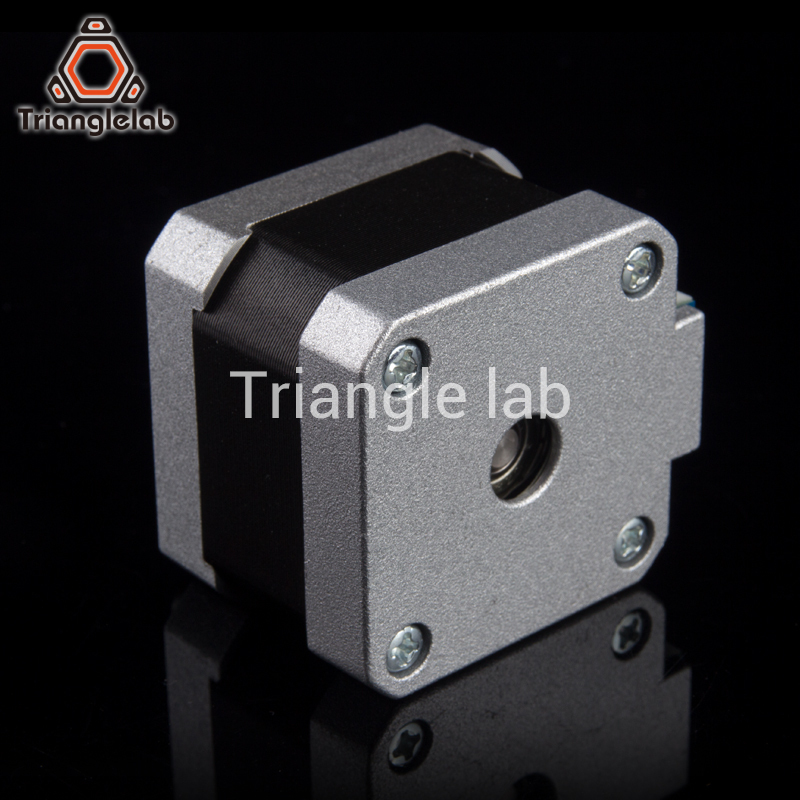

NEMA17 0.9 Stepper Motor 42 motor

0.0 (0)
$11.31 $11.90
NEMA17 0.9 Stepper Motor 42 motor L34MM for TITAN Extruder 1 PC FOR 3D Printer
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
Availability: In Stock
  • Description

Transport instructions:

Because MOTOR is a strong magnetic product. No matter what kind of logistics you choose, we will modify its transportation into a special aviation logistics. The reason why we provide a lot of transportation options. It is to make the products available to as many countries as possible. If you encounter countries that cannot be reached by special logistics. We have to contact you to cancel the order. Thank you for your understanding. We have made great efforts for this. Magnetic products are very difficult to transport.

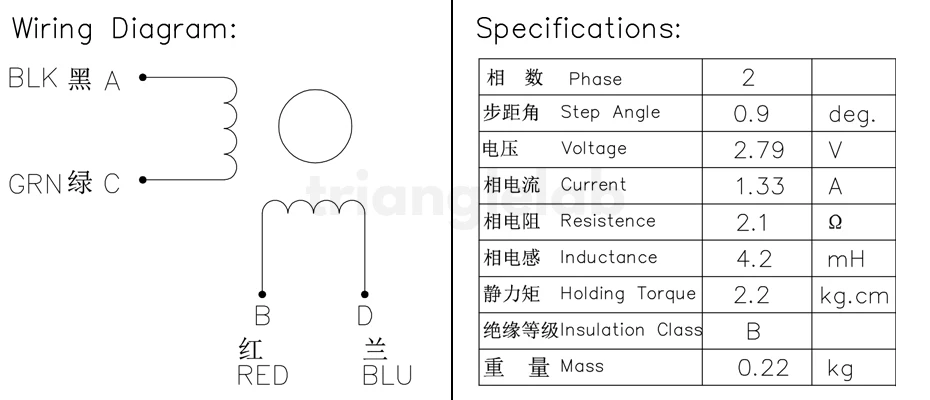

•NEMA 17
•Body Length: 34MM
•Shaft Size: 5mm
•Holding Torque: 2.2 kg-cm
•Step Angle: 0.9°
•400 Steps Per Revolution.
•Phase current: DC 1.33 A/Phase
•4 Port Connector Standard
•Phase Resistance: 2.1Ohm
•Phase Inductance: 4.2mH
•Temperature Rise: 80Cmax
•Ambient Temperature: -20 to +50C
•Max radial force: 28N(20MM from the flange)
•Max axial force: 10N
•Weight:220g

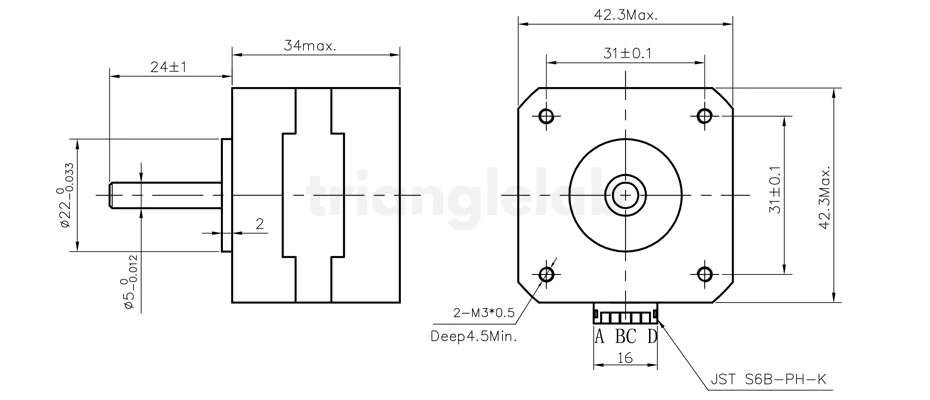

Dimension:





a
