Home > Motor > NEMA17 0.9 Stepper Motor L48MM
  • NEMA17 0.9 Stepper Motor L48MM
  • NEMA17 0.9 Stepper Motor L48MM
  • NEMA17 0.9 Stepper Motor L48MM
1/1
  • NEMA17 0.9 Stepper Motor L48MM
  • NEMA17 0.9 Stepper Motor L48MM
  • NEMA17 0.9 Stepper Motor L48MM

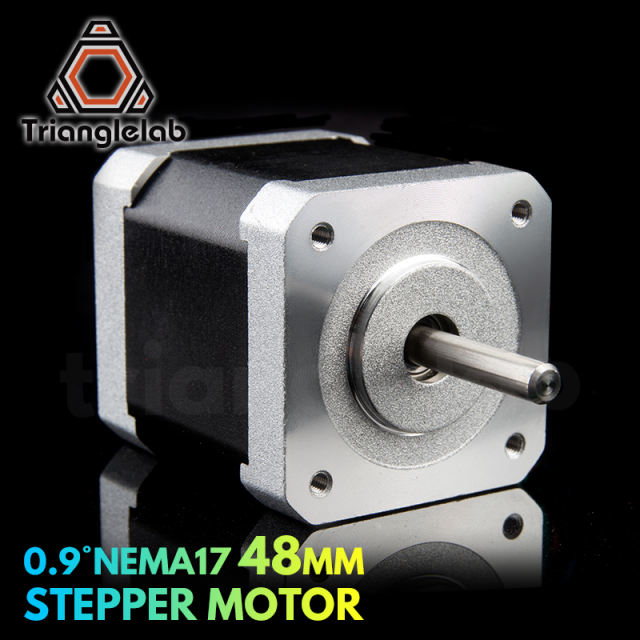

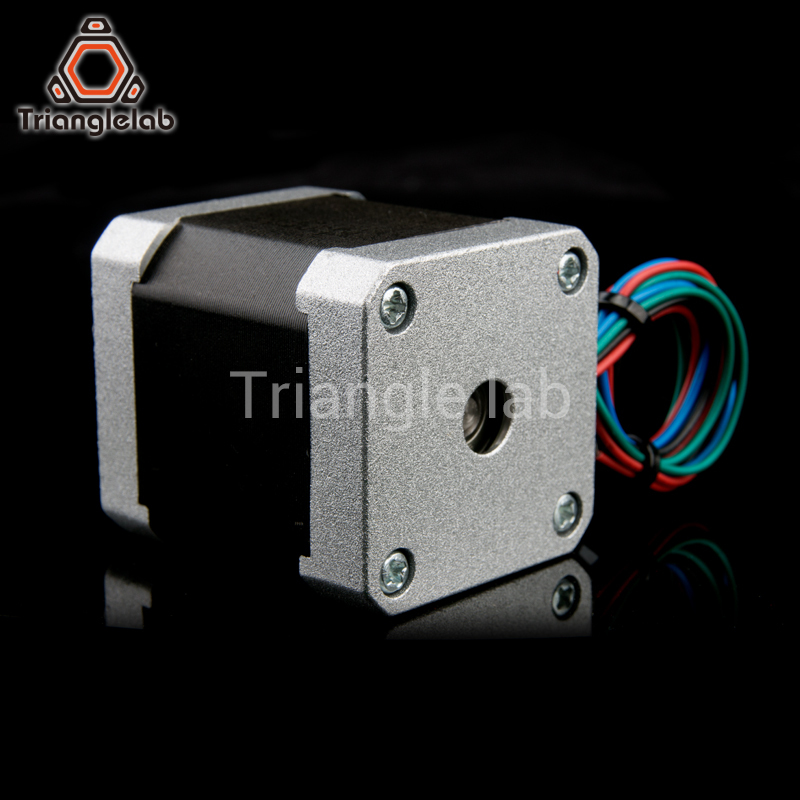

NEMA17 0.9 Stepper Motor L48MM

SKU:
1PCS Trianglelab Custom NEMA17 0.9 Stepper Motor L48MM for TITAN Extruder AQUA For 3D Printer EXtruder 1.68A
Limited Offer!
0.0 (0 Reviews)
1 Sold
$14.23 $11.10
-22%
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
Add to Favorites (0)
  • NEMA17 0.9 Stepper Motor L48MM
  • NEMA17 0.9 Stepper Motor L48MM
  • NEMA17 0.9 Stepper Motor L48MM
  • NEMA17 0.9 Stepper Motor L48MM
  • NEMA17 0.9 Stepper Motor L48MM
  • NEMA17 0.9 Stepper Motor L48MM
1/1
  • NEMA17 0.9 Stepper Motor L48MM
  • NEMA17 0.9 Stepper Motor L48MM
  • NEMA17 0.9 Stepper Motor L48MM

ABOUT TAX

Prices for the US and EU are tax-inclusive. All prices are tax-exclusive.  For other countries/regions,（Except the EU and the US） import duties, VAT, and other charges are the recipient’s responsibility upon customs clearance.Any delays, returns, or fees resulting from failure to pay duties and taxes shall be borne by the recipient.
ABOUT TAX
Frequently Bought Together
more
Frequently Bought Together
  • Description
If you need to send UPS/Fedex/TNT/DHL, please contact us. We need to discuss the freight with you.
The trianglelab has always been concerned about product quality.We are developing products and working hard to improve the quality.We will not abandon our reputation because of many cheap products on the market.It is believed that only high quality products can ensure the quality of your work and bring safety to your work.
Some of our products may be more expensive than others,but please believe in our quality and believe that you will not regret when you receive the goods.


▉About logistics description:
Because the package contains strong magnets, ordinary logistics cannot be transported. So no matter which kind of logistics you choose. We will modify the logistics you choose. The package will be transported by air transportation of special dangerous goods, or other logistics. We will ensure that your package arrives as soon as possible. Thanks for your trust.
If you did not choose a magnetic product. Then your transportation will not be changed to a magnetic transportation route.

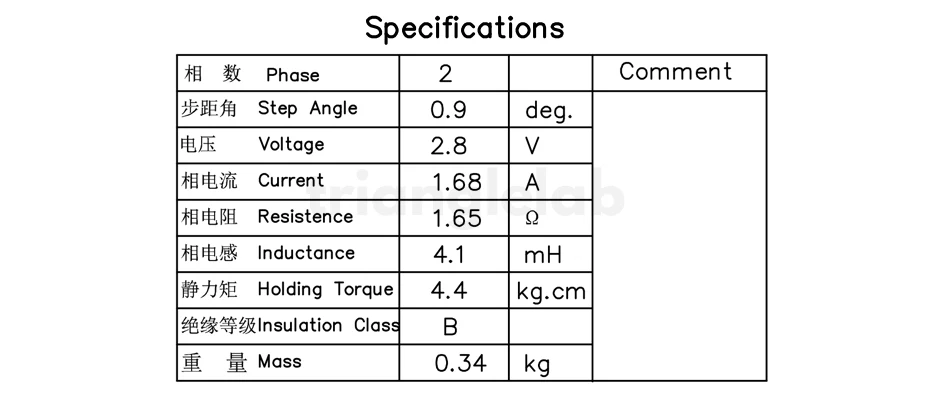

• NEMA 17
• Body Length: 48MM
• Shaft Size: 5mm
• Holding Torque: 4.4 kg-cm
• Step Angle: 0.9°
• 400 Steps Per Revolution
• Phase current: DC 1.68 A/Phase
• 4 Port Connector Standard
• Phase Resistance: 1.65Ohm
• Phase Inductance: 4.1mH
• Temperature Rise: 80Cmax
• Ambient Temperature: -20 to +50C
• Max radial force: 28N(20MM from the flange)
• Max axial force: 10N
• Weight: 340g

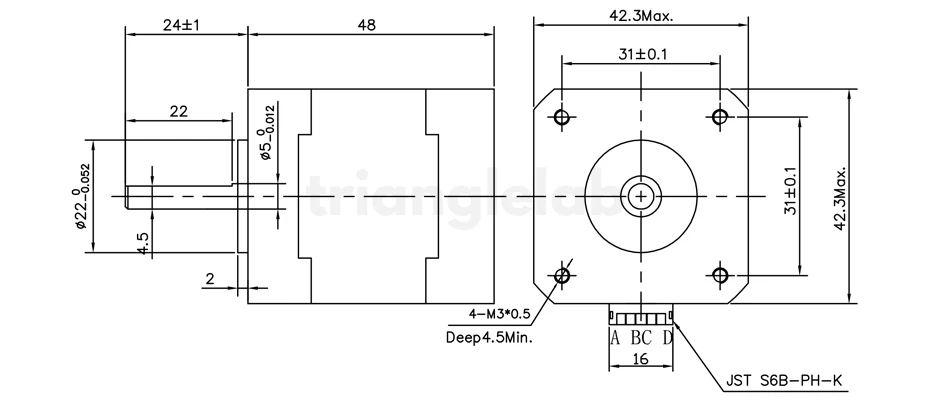

Dimension:

▼
