Rapido ACE Hotend

Trianglelab Rapido ACE HOTEND High flow high speed high temperature direct drive or bowden Compatible Voron DDE RAPIDO extruder
Limited Offer!
1 sold
0.0 (0 Reviews)
$0.00 $75.11 6% OFF
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Dragon Ace:
    104NT-4 HF
    104NT-4UHF
    PT1000 HF
    PT1000 UHF
    K500 HF
    K500 UHF
Quantity
-
+
  • Description
  • Before ordering, please note that all our products do not include tax, you need to declare your own tax!

  • If you need to send UPS/Fedex/TNT/DHL, please contact us. We need to discuss the freight with you.

  • Technical questions e-mail:[email protected]

  • Sales questions e-mail:[email protected]

  • The trianglelab has always been concerned about product quality.We are developing products and working hard to improve the quality.We will not abandon our reputation because of many cheap products on the market.It is believed that only high quality products can ensure the quality of your work and bring safety to your work.

  • Some of our products may be more expensive than others,but please believe in our quality and believe that you will not regret when you receive the goods.

▉Name:

 Triangle-lab®      Rapido ACE®       Hotend

▉Highlight:

1. Smaller heatsink size, but still compatible with previous Rapido or Dragon mounting parts using a spacers.
2. Multiple mounting holes on the top allow for multi-angle mounting of your print head.

3. Longer melt zone and higher flow rate in the even smaller overall size.

4. Ceramic heating element is replaceable and more cost-effective to maintain.

5. Carefully designed internal temperature sensor for more accurate and stable heater block temperature readings.

6. The split stainless steel flange design reduces heat loss from the heating block and also reduces the potential for damage to the filament capillary path during tightening.

7. Two-stage insulated heatsink design prevents heat from the heating block mounting screws from being conducted further upwards. (See infrared image)

8. The tapered heatsink cooling section ensures effective and tight contact. The cold end of the heat breaker only comes into contact with the coldest top of the heatsink, ensuring that the cold end temperature of the heat breaker is as low as possible, reducing the likelihood of heat creep.

9. Maximum practical flow rate of 65mm³/S. (PETG@265℃ φ1.2mm nozzle)

▉Compatibility:
1.Installed to the mounting position designed for Dragon or Rapido original through a 3MM spacer.
2.With the V6 adapter it can be mounted in the position originally designed for a V6 style hotend.
3.Mounting parts are available specifically designed for Rapido Ace.
▉Material detail:

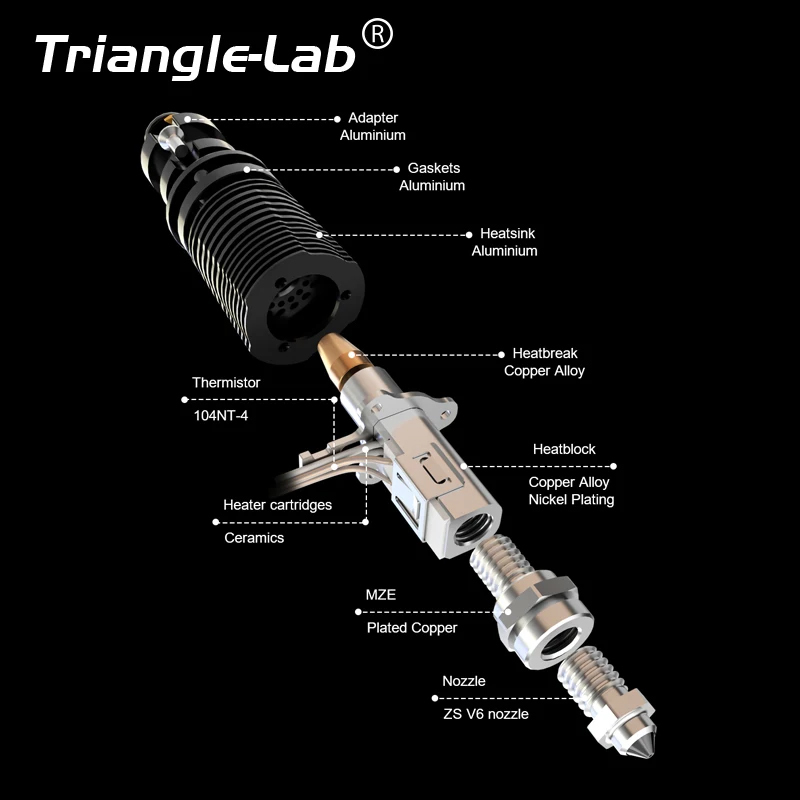

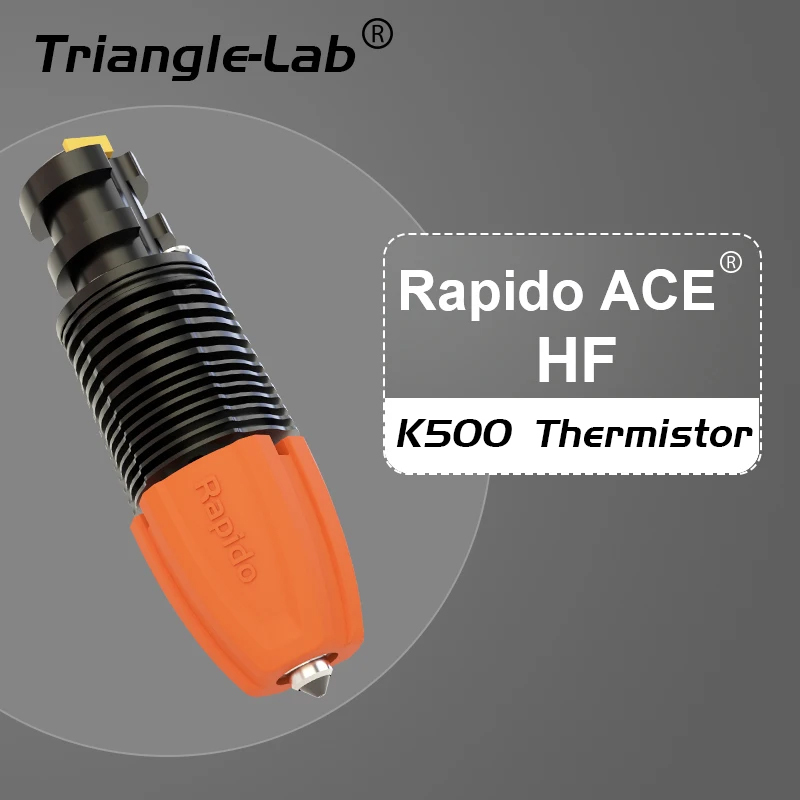

Rapido ACE HF

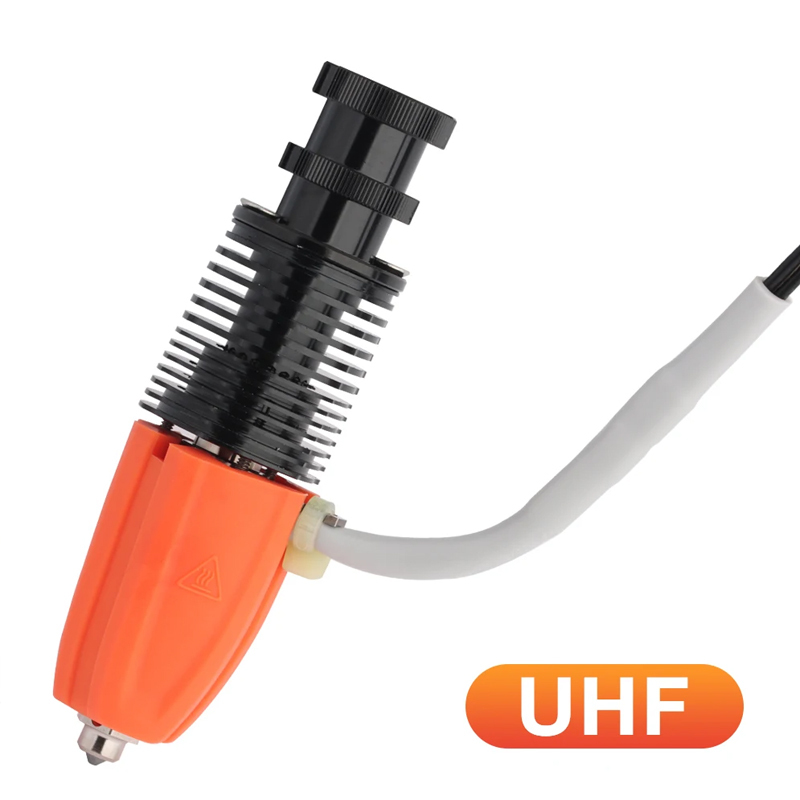

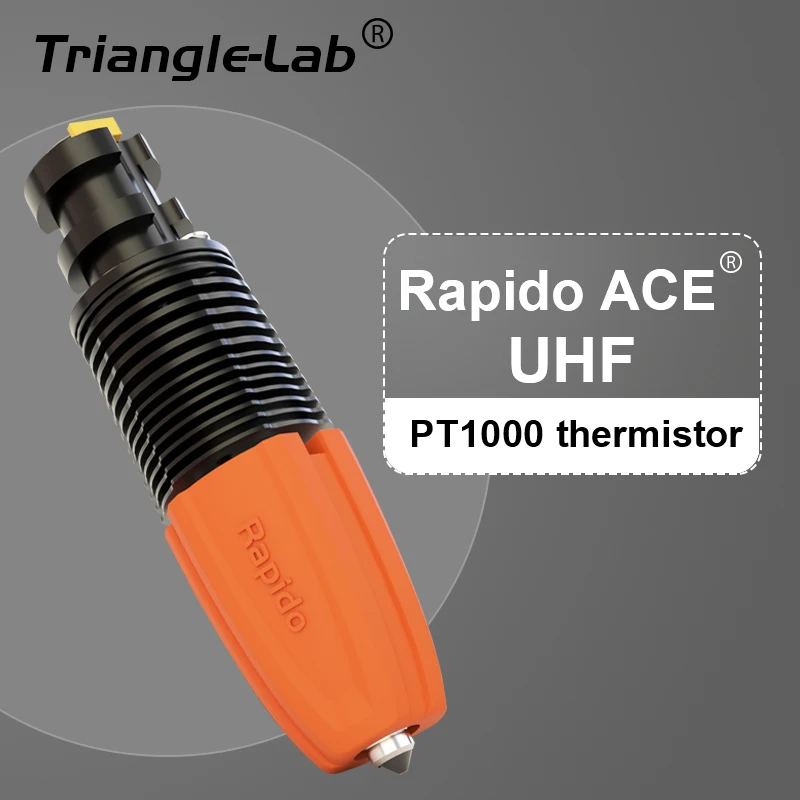

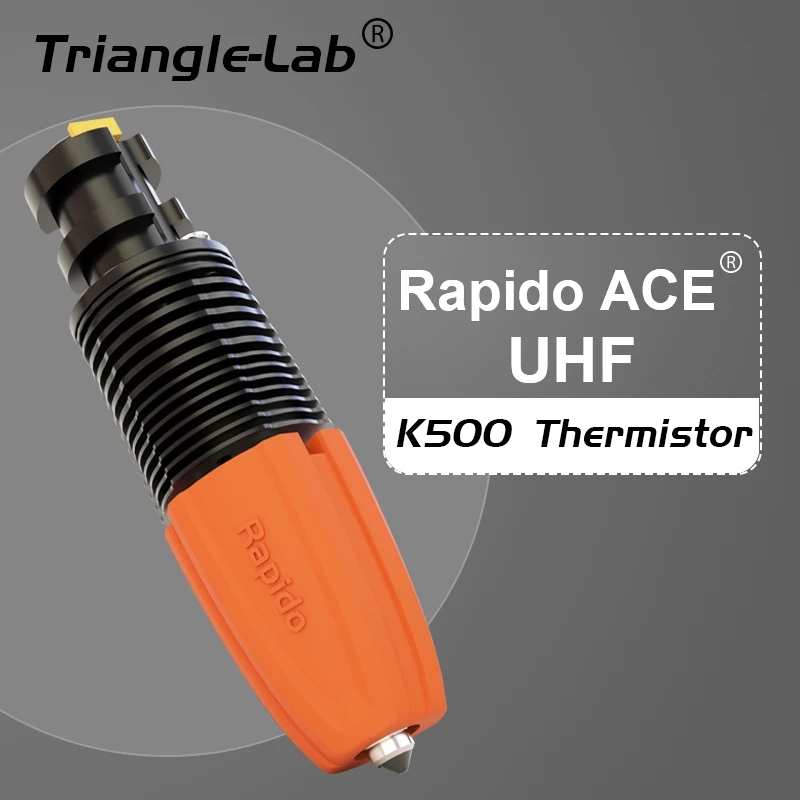

Rapido ACE UHF

About Heatsink

Carefully designed internal temperature sensor formore accurate and stable heater block temperature readings.

The tapered heatsink cooling section ensures effective and tight contact. The cold end of the heat breaker only comes into contact with the coldest top of the heatsink, ensuring that the cold end temperature of the heat breaker is as low as possible, reducing the likelihood of heat creep.

About Flange Insulation

The split stainless steel flange design reduces heat loss from the heating block and also reduces the potential for damage to the filament capillary path during tightening.

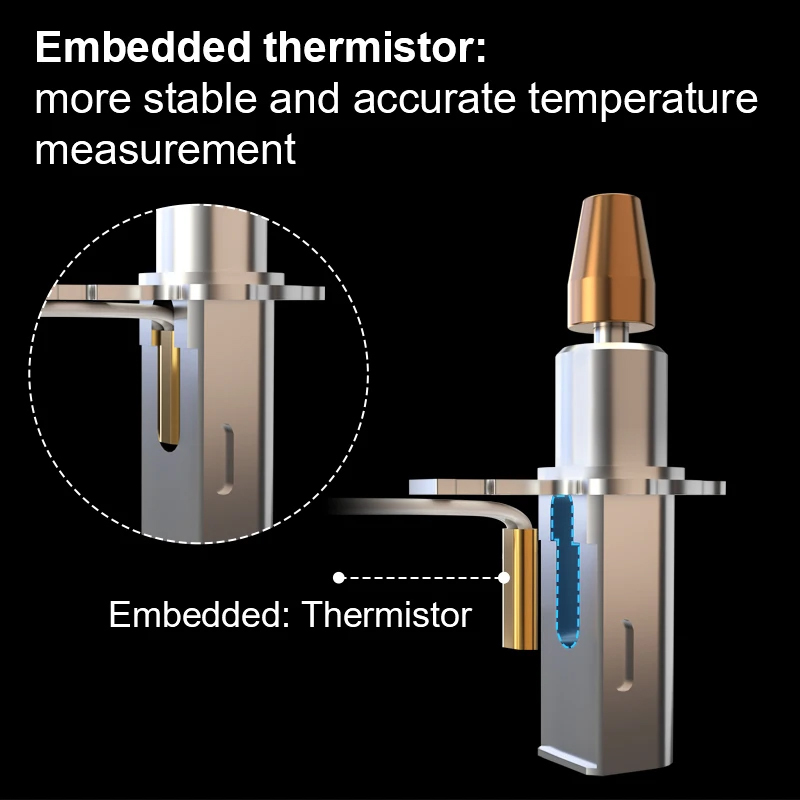

Embedded temperature sensor

It can measure the temperature more accurately.

▉Specification:
Nominal resistance: 6.5 +-0.5Ω @25℃
Nominal power: 24V 88.6W
Temperature vs Power

▉Dimensions:

▉Test Report 01:

For detailed documentation, please see the following link:

https://drive.google.com/drive/folders/1JpKY0K64ezeTtLR7X6bPHKADfP-oV6TX

Rapido Ace & Rapido Original Flowrate Comparison Test

Introduction to the experiment:

The model and slicing parameters close to the practicalization were used for this print comparison test. In order to facilitate the observation of the experiment The slicing software increases the speed from low to high at fixed height intervals, performs the printing and then records the maximum flow rate that can be achieved by both hot-end under exactly the same conditions by observing until the printing results are unacceptable.

Test conditions:

Slicing software: PrusaSlicer 2.6.0

Model: Flow Rate Test Geometry from E3D online (Figure 1)


Nozzle V6 style brass 0.6mm

Slicer settings:

layer height 0.3mm

perimeter 1

extrusion width 0.75mm

PETG@260°C

Speed For every 2mm increase in height, the speed increases by 5%.

Flow Rate Calculation Observe and record the maximum flow rate achieved before the print becomes unacceptable.

Test Results:

▉Test Report 02:

Rapido ACE & Rapido original heat breaker working temperature Comparison

Experimental overview:

In the same fixed and heat dissipation conditions, the temperature difference between the two hot-end in the same position in the cold end of the heat breaker is compared and tested.

Temperature measurement method:

Measure the temperature inside the nozzle of the heater block with a thermocouple and compare it with the temperature set by the printer at that time, and record the actual temperature of the printer when the thermocouple measurement reaches 250 degrees Celsius to be used in the comparison experiment. For example, if the temperature inside the nozzle is 250 degrees Celsius when it is set and stabilized at 241 degrees Celsius in the printer, the hot-end will be set at 241 degrees Celsius in the next steps, and then the temperature will be measured again to confirm the stabilization, and then a comparative experiment will be conducted on this premise.

Conclusion The measured temperature at the critical cold end of the heat breaker of the TL Rapido Ace is significantly lower than that of the TL Rapido original. This means that the TL Rapido Ace has a better ability to block heat transfer and has a better thermal design, which can have the potential benefit of preventing thermal creep from occurring and reducing the chance of filament paths becoming clogged, thus improving print success rate.
