Swiss MK10 nozzle

SKU:
Super high quality Micro Swiss MK10 All Metal Hotend Kit MK10 Nozzle M7 3D printer kit Threaded Nozzle three kinds of material
4.9 (6 Reviews)
58 Sold
$12.96 $12.31
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • mode:
    0.2 Hotend Kit
    0.4 Hotend Kit
    0.6 Hotend Kit
    0.8 Hotend Kit
Quantity
-
+
  • Swiss MK10 nozzle
  • Swiss MK10 nozzle
  • Swiss MK10 nozzle
  • Swiss MK10 nozzle
  • Swiss MK10 nozzle
Frequently Bought Together
more
Frequently Bought Together
Credit Card Payment Notice If you want to pay by credit card or debit card (not PayPal), please click "check out" to enter the next page and fill in the complete and accurate delivery information.Then select the first one "Credit or Debit Cards" in the payment method.
Credit Card Payment Notice
  • Description
  • Before ordering, please note that all our products do not include tax, you need to declare your own tax!

  • If you need to send UPS/Fedex/TNT/DHL, please contact us. We need to discuss the freight with you.

  • Technical questions e-mail:[email protected]

  • Sales questions e-mail:[email protected]

  • The trianglelab has always been concerned about product quality.We are developing products and working hard to improve the quality.We will not abandon our reputation because of many cheap products on the market.It is believed that only high quality products can ensure the quality of your work and bring safety to your work.

  • Some of our products may be more expensive than others,but please believe in our quality and believe that you will not regret when you receive the goods.

This is an all metal hotend upgrade kit for MK10 style extruders. Thermal barrier tube is made from 2 different materials. The lower thermal break is made from stainless steel, and the colder upper part is made from aluminum. Stainless steel was used for thermal break because it offers low thermal conductivity, and aluminum was used for the upper portion because it has a lot better thermal conductivity, to carry away any heat from the filament. All metal hotend will let you print at much higher temperature than possible with original PTFE lined one. Another benefit of an all metal hotend design is more consistent melt chamber control. During slow extrusion rate, in PTFE lined hotend, transition zone from solid to molten plastic tends to creep upward creating more stringy prints. With all metal design a transition zone is always constant, being located right at the heat break. With fast extrusion rate, PTFE tube doesn't have enough thermal conductivity to properly melt all the plastic coming out. On MK10 extruders that limitation happens around 60 mm/s, depending on nozzle size. All metal hotend solves this problem, plastic is surrounded by thermally conductive nozzle throughout its length.
Size:
0.2mm/1.75mm Filament
0.4mm/1.75mm Filament
0.6mm/1.75mm Filament
0.8mm/1.75mm Filament
Compatible:
FlashForge Creator Pro
FlashForge Creator X
FlashForge Dreamer
Qidi Tech X-One
Qidi Tech I
Dremel Idea Builder
Dremel 3D40 Idea Builder
PowerSpec 3D Pro
PowerSpec 3D X
Wanhao Duplicator 4S
Wanhao Duplicator 4X
Wanhao i3
Monoprice Maker Select 3D Printer v2
Monoprice Maker Select Plus
Cocoon Create 3D Printer
▉What's in the box:

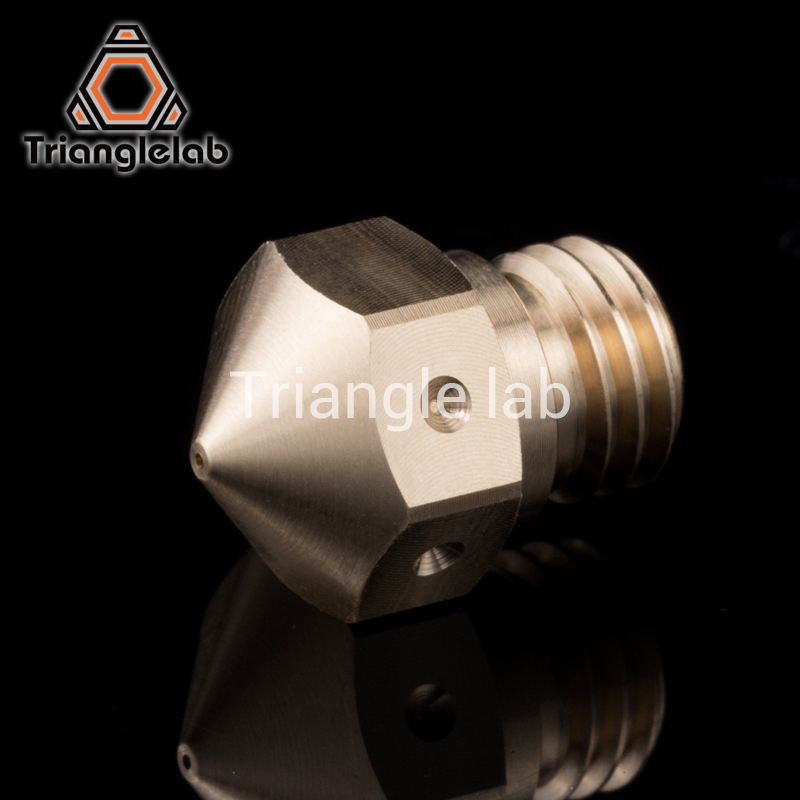

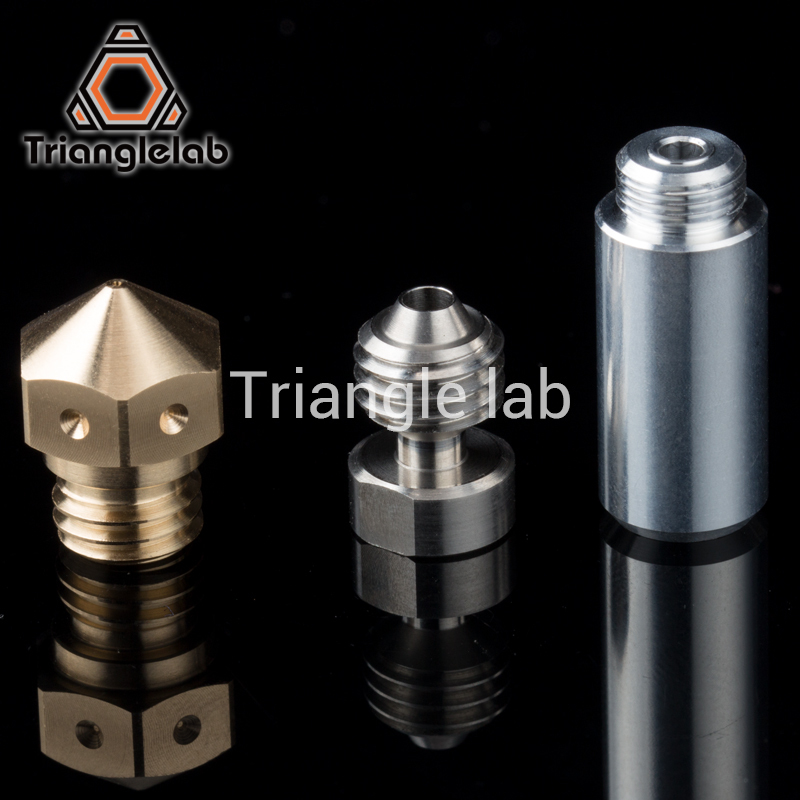

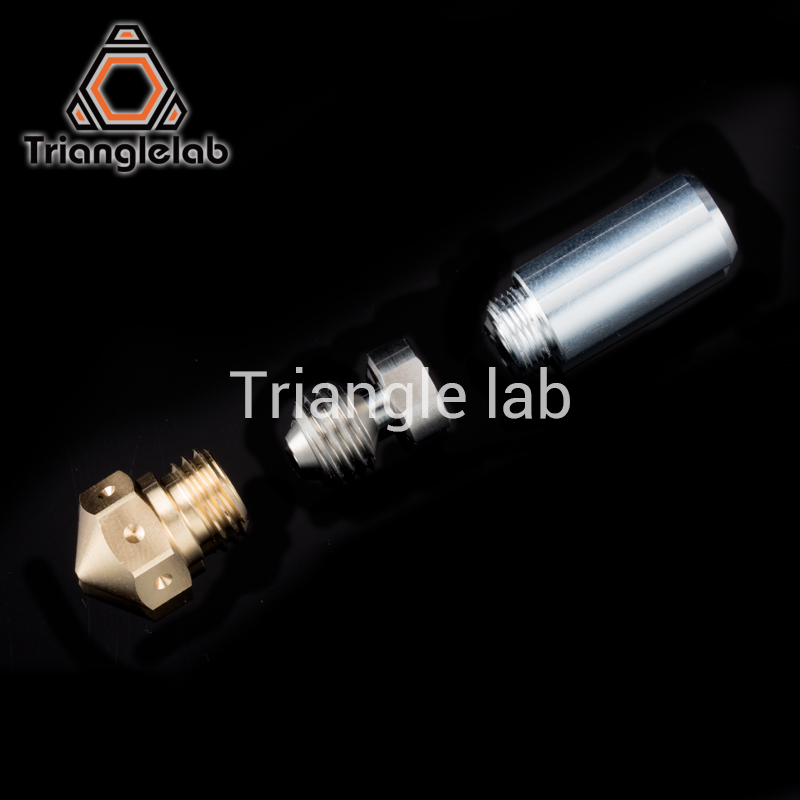

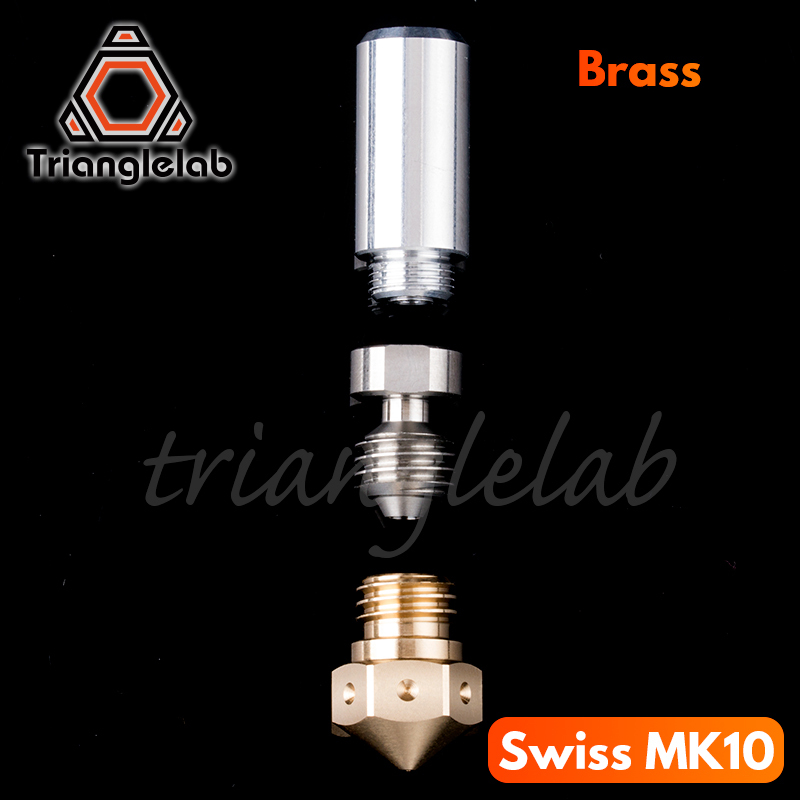

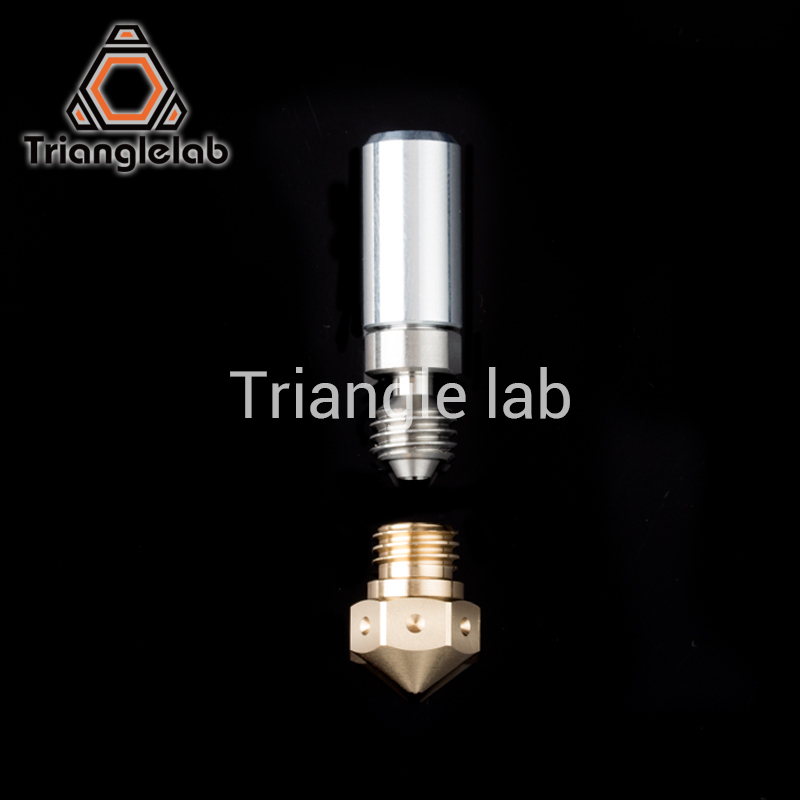

Swiss MK10 Nozzle (ID2.0MM) X 1

Swiss MK10 Heat Break (Thermal tube + Thermal Compound) X 1

▉NOTE:

We found that many customers do not know how to properly install the nozzle.
Remember the core issues in the installation process.
Just make sure your nozzle and HEAT BREAK front end are tight and sealed. Otherwise, the melted consumables will leak along the screw holes.
  • (Support 1.75MM Filament)
    (Swiss Heat Break = Thermal tube + Thermal compoud)
  • 1 Brass Nozzle

  • 1 Thermal tube

  • 1 Thermal compound

If you want to buy a Micro Swiss MK10 brass nozzle,please click here.
If you want to buy a Micro Swiss MK10 Thermal tube & Thermal compound,please click here.
If you want to buy a Micro Swiss MK10 All Metal Hotend Kit(all kit),please chick here.
