TCHC TD6 PT1000 Hotend

• Before ordering, please note that all our products do not include tax, you need to declare your own tax!

• If you need to send UPS/Fedex/TNT/DHL, please contact us. We need to discuss the freight with you.

• Technical questions e-mail：[email protected]

• Sales questions e-mail：[email protected]

• The trianglelab has always been concerned about product quality.We are developing products and working hard to improve the quality.We will not abandon our reputation because of many cheap products on the market.It is believed that only high quality products can ensure the quality of your work and bring safety to your work.

• Some of our products may be more expensive than others,but please believe in our quality and believe that you will not regret when you receive the goods.

This is the TCHC TD6 PT1000 Honted,Built-in PT1000 Thermistor!

This is the TCHC TD6 PT1000 Honted,Built-in PT1000 Thermistor!

This is the TCHC TD6 PT1000 Honted,Built-in PT1000 Thermistor!

PT1000 PRO *All information can refer to PT1000 information：Trianglelab Thermistor Cartridge PT1000 Upto 450 degrees.

▉Description:

PT1000 sensors are able to measure higher temperatures than thermistors - upto 400°C,and are more accurate then both thermistors and thermocouples in general.
PT1000 sensors can direct replace the thermistors in your printer  without adding an amplifier board like PT100's sensors.
but whith the default 4.7K pullup resister on board you will get lower resolution than other sensors.
PT1000 sensors are compatible with most firmwares in the field.
PT1000 sensors are potentially a good cost and performance compromise between thermistors and PT100 sensors.
If you want release potential abilities of the PT1000 sensors,you need to replace the 4.7Kpullup resister of the thermistor pins with a 1K 0.1% resister.
Continuous 500 degree Celsius Guaranteed

▉Technical Information:

operating temperature range 0-450 degrees
lead 1Meter length fiberglass High temperature resistant wire
RESISTANCE VALUE CHART PER 1C PT1000:http://www.hayashidenko.co.jp/en/info14.html

One Piece Design
Heatbreak and Nozzle in one design
If you don't know how to install Heatbreak and nozzle, choose this Hotend, which is a great way to avoid material leaks during printing. It extends the life of the Hotend.

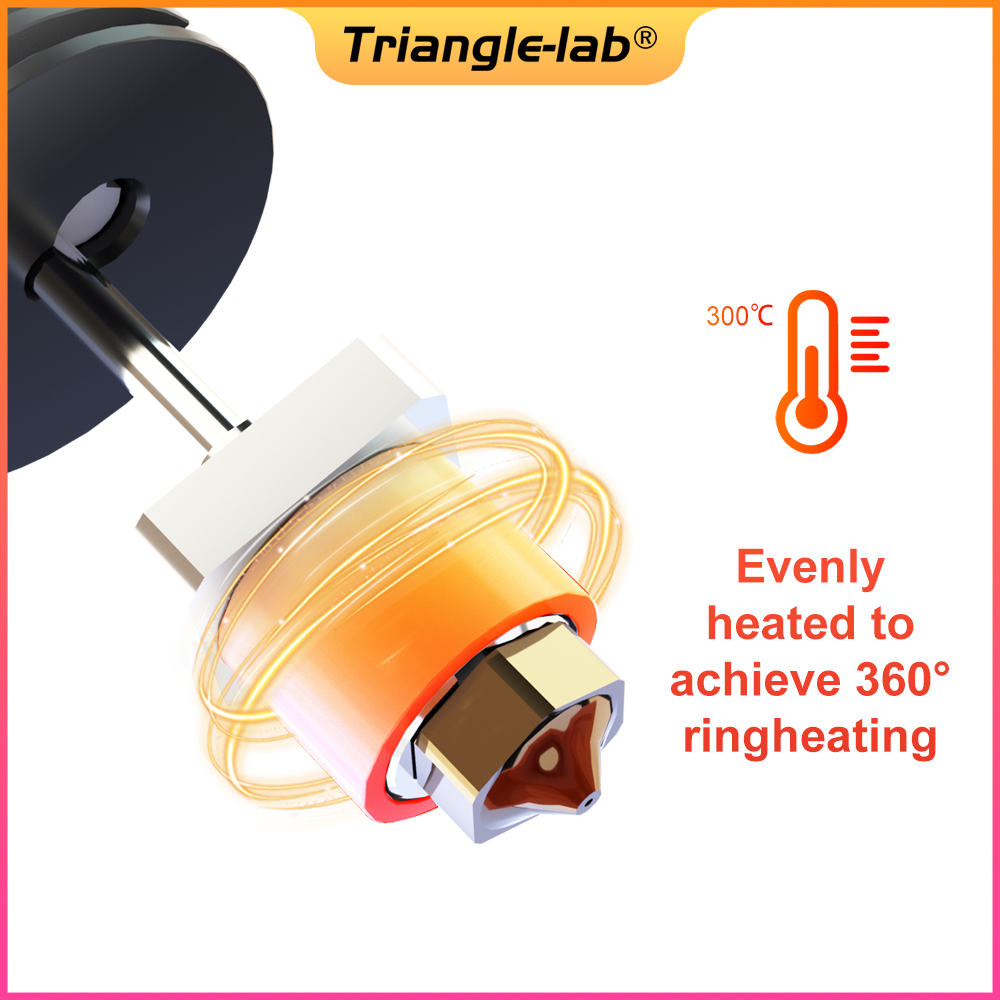

Ring Heating
Evenly heated to achieve 360° ring
heating

High temperature resistant, suitable for all types of filament:

PLA ABS ASA PETG PA PA+CF

High quality printing accuracy, good durability. Very slow thermal

conductivity to the cold end. High heat dissipation. Suitable for filaments in

the full temperature range.

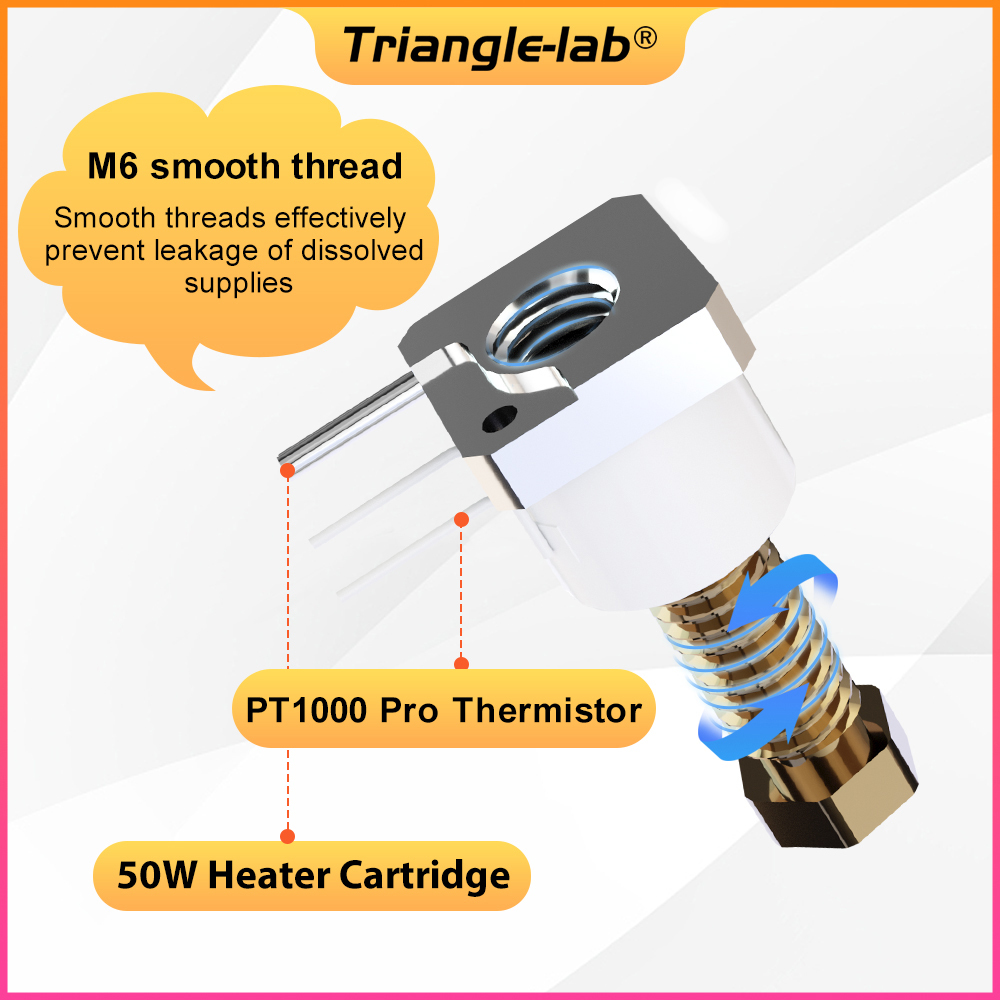

Smooth thread
M6 smooth thread design
The throat threads are tightly integrated with the copper-plated heating ring threads to prevent consumables from leaking out.Using a PT1000 thermistor 50W Heater Cartridge

High Strength Heat Resistance
Extremely thin Heatbreak walls for effective heat rejection

Split Dismantling

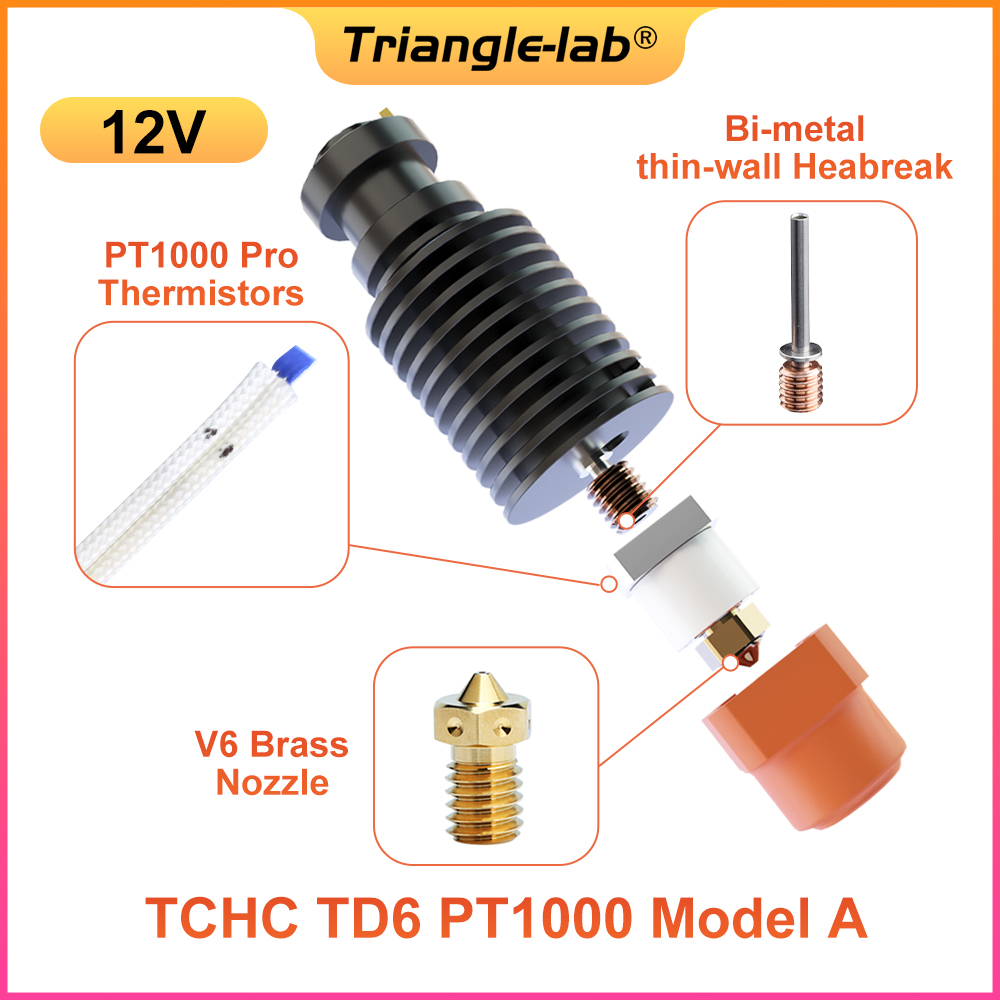

Using copper alloy Bi-Metal Heatbreak. Ceramic Heating Ring E3D V6 Brass Nozzle.
