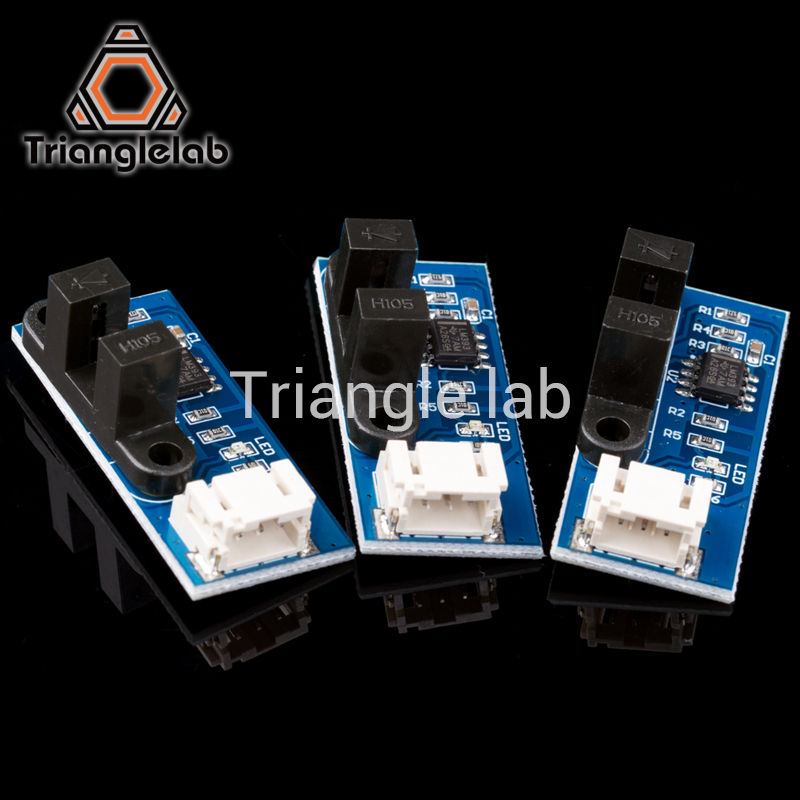

Trianglelab TL-Limit Switch High sensitivity Optical Endstop Light Control Limit Switch
Sorry,we strive to make high-quality accessories,and the price will be more expensive than others.Please understand that an excellent 3D printer starts with an excellent accessory.
TL-Limit Switch:Repeat positioning is in high accuracy.Triggering is sensitive and quiet.
Optical limiting switches are widely used,and can be used in all kinds of 3D printers,CNC machines,and all kinds of 3D tools of DIY.

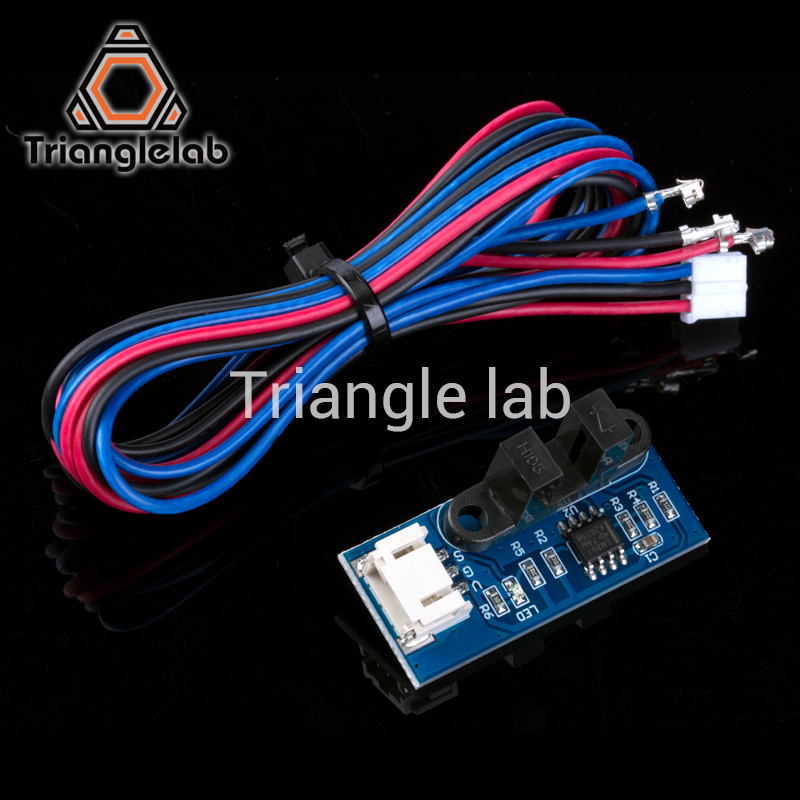

Each optical limit switch is equipped with a wire harness of 90cm

Using 5mm interrupter maker more clearance.Such as using a M2.5 screw head to trigger the switch.

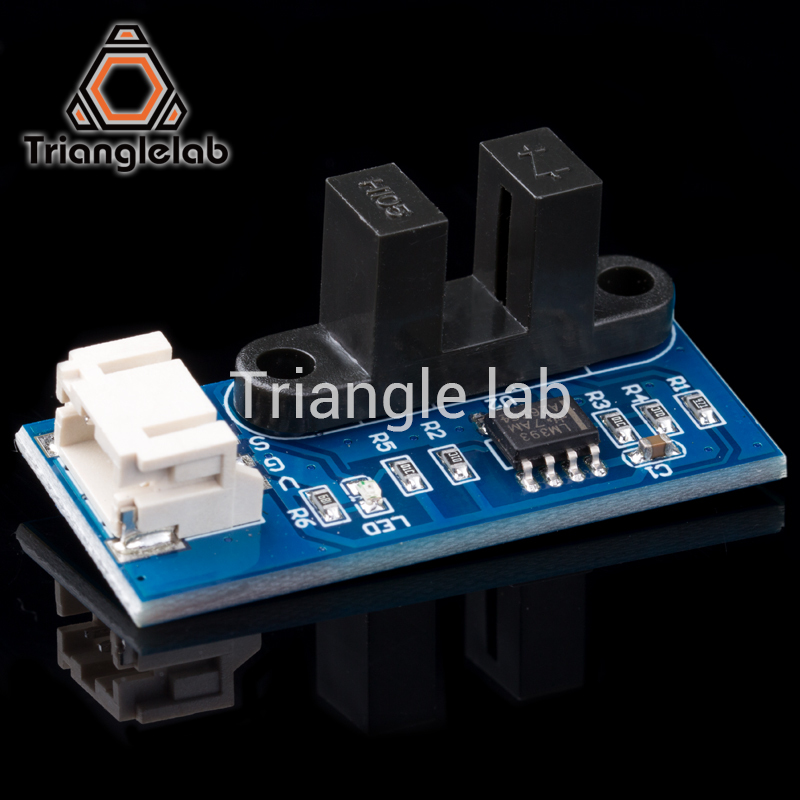

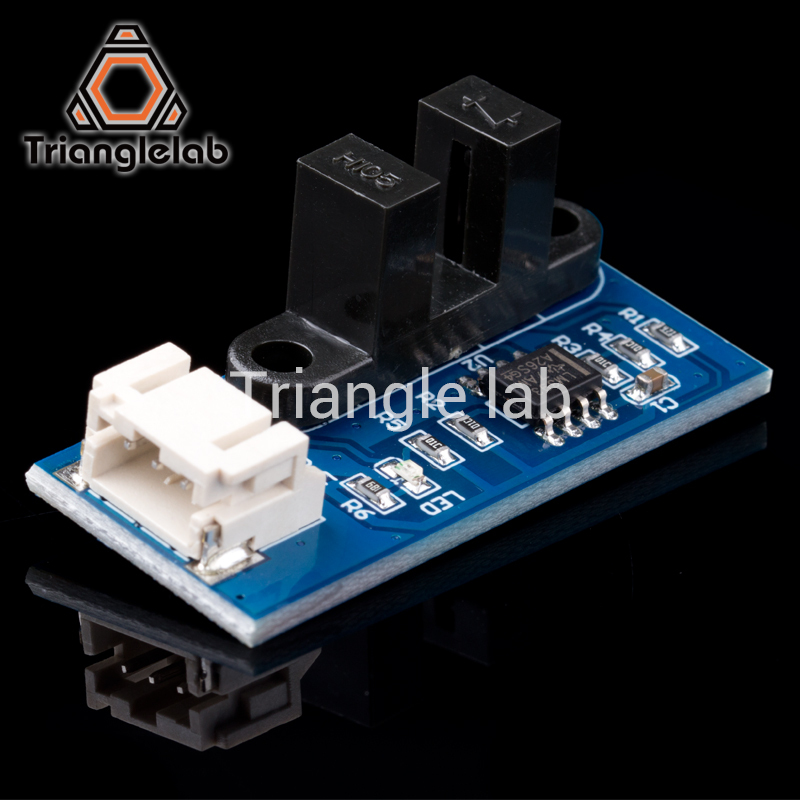

A LED indicator shows status
A voltage comparator insures the switch repeatability


Cable color
Red                   +3-6V
Black                 GND
Yellow/Blue       Signal

Supply Voltage                      3-6V
Operating Temperature         below 80℃
Signal Voltage when limit switch is OPEN / L / 0            LOW
Signal Voltage when limit switch is TRIGGERED / H / 1   HIGH(equal to Supply Voltage)

//======================================================================================
//============================== Endstop Settings ========================================
//======================================================================================
// @section homing
// Specify here all the endstop connectors that are connected to any endstop or probe.
// Almost all printers will be using one per axis.Probes will use one or more of the
// extra connectors.Leave undefined any used for non-endstop and non-probe purposes.
#define USE_XMIN_PLUG
#define USE_YMIN_PLUG
#define USE_ZMIN_PLUG // a Z probe
#define USE_XMAX_PLUG
#define USE_YMAX_PLUG
#define USE_ZMAX_PLUG
// coarse Endstop Settings
#define ENDSTOPPULLUPS // Comment this out(using // at the start of the line) to disable the endstop pullup resistors
#if DISABLED(ENDSTOPPULLUPS)
  // fine endstop settings:Individual pullups.will be ignored if ENDSTOPPULLUPS is defined
  //#define ENDSTOPPULLUP_XMAX
  //#define ENDSTOPPULLUP_YMAX
  //#define ENDSTOPPULLUP_ZMAX
  //#define ENDSTOPPULLUP_XMIN
  //#define ENDSTOPPULLUP_YMIN
  //#define ENDSTOPPULLUP_ZMIN
  //#define ENDSTOPPULLUP_ZMIN_PROBE
#endif
// Mechanical endstop with COM to ground and NC to Signal uses 'false' here(most common setup).
#define X_MIN_ENDSTOP_INVERTING false  // set to true to invert the logic of the endstop.
#define Y_MIN_ENDSTOP_INVERTING false  // set to true to invert the logic of the endstop.
#define Z_MIN_ENDSTOP_INVERTING false  // set to true to invert the logic of the endstop.
#define X_MAX_ENDSTOP_INVERTING false  // set to true to invert the logic of the endstop.
#define Y_MAX_ENDSTOP_INVERTING false  // set to true to invert the logic of the endstop.
#define Z_MAX_ENDSTOP_INVERTING false  // set to true to invert the logic of the endstop.
