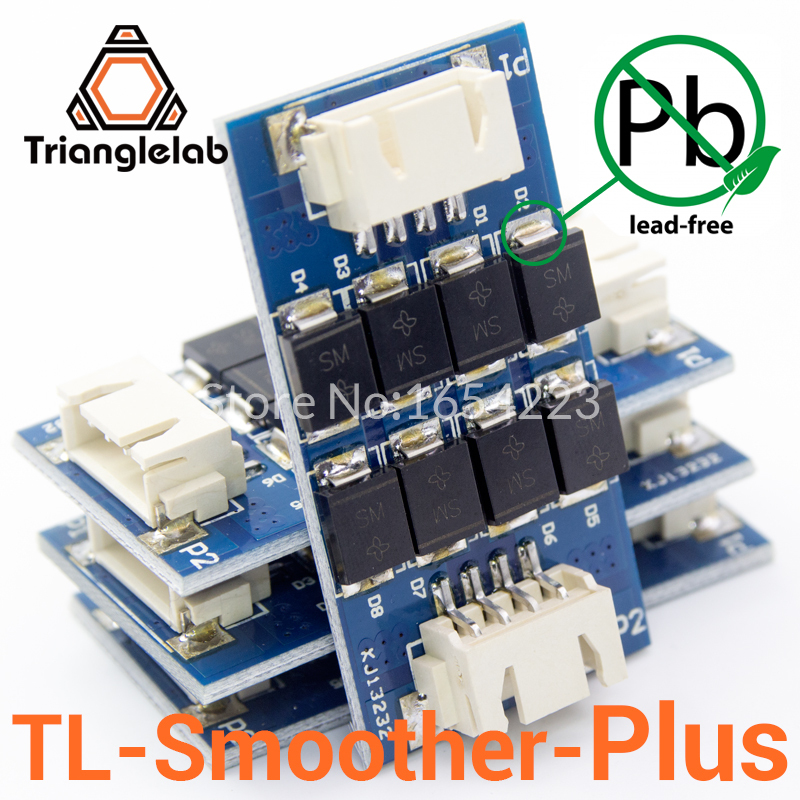

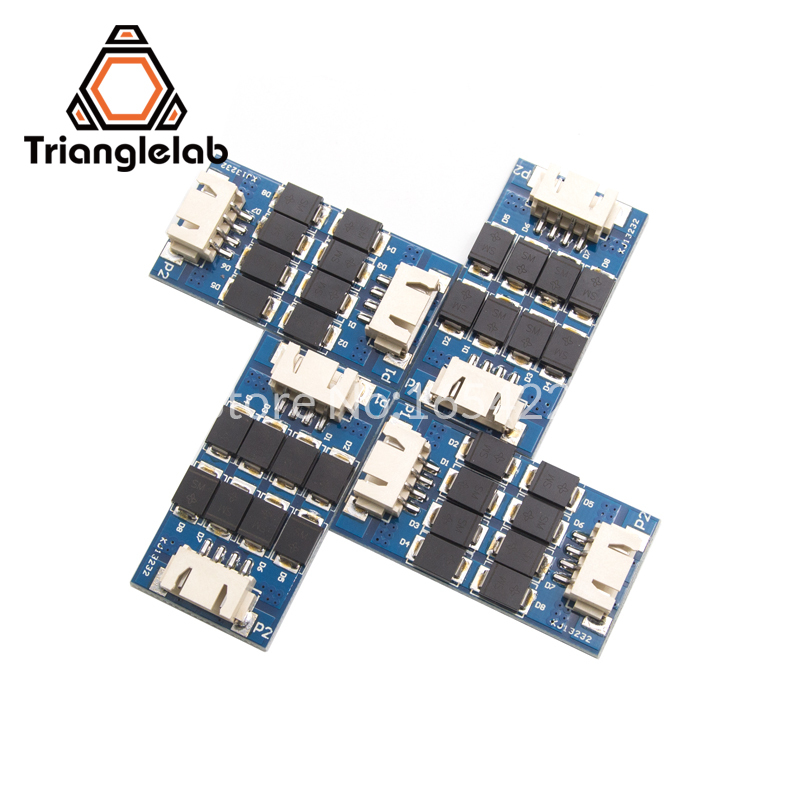

TL-Smoother PLUS:4 pieces/pack
TL-Smoother assembly instructions
https://drive.google.com/open?id=1Kdq4FKcv4PRkuYbeoWxF_myPKDdfZud9XCIloQEaLqs
The color of the product is based on actual conditions.

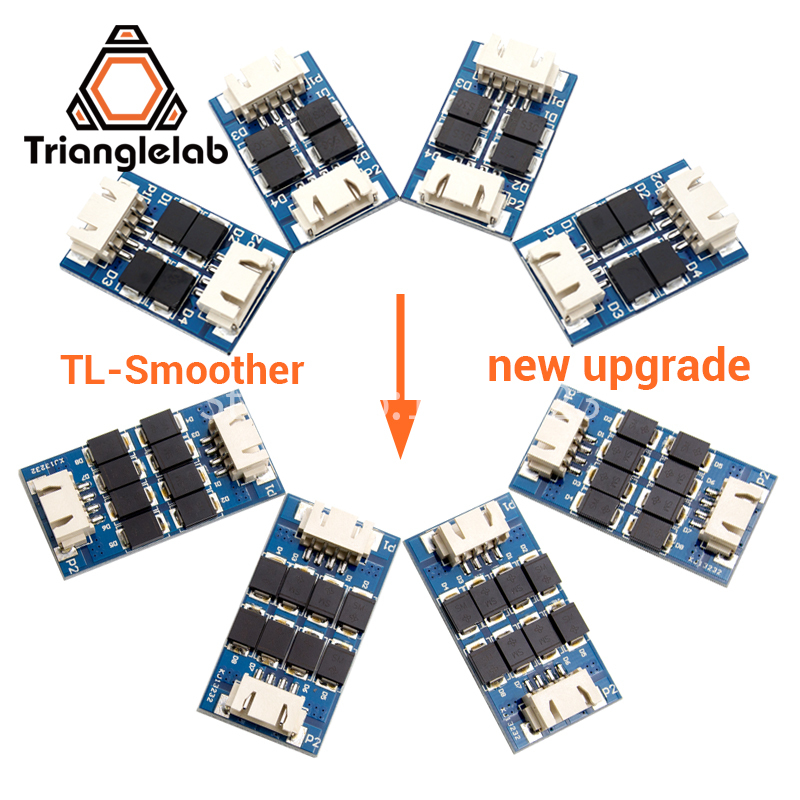

8 big Package(SMC)diodes provides better heat dissipation performance
that can handle bigger motor than small diodes.
Lower vibration lower noise smoother result！

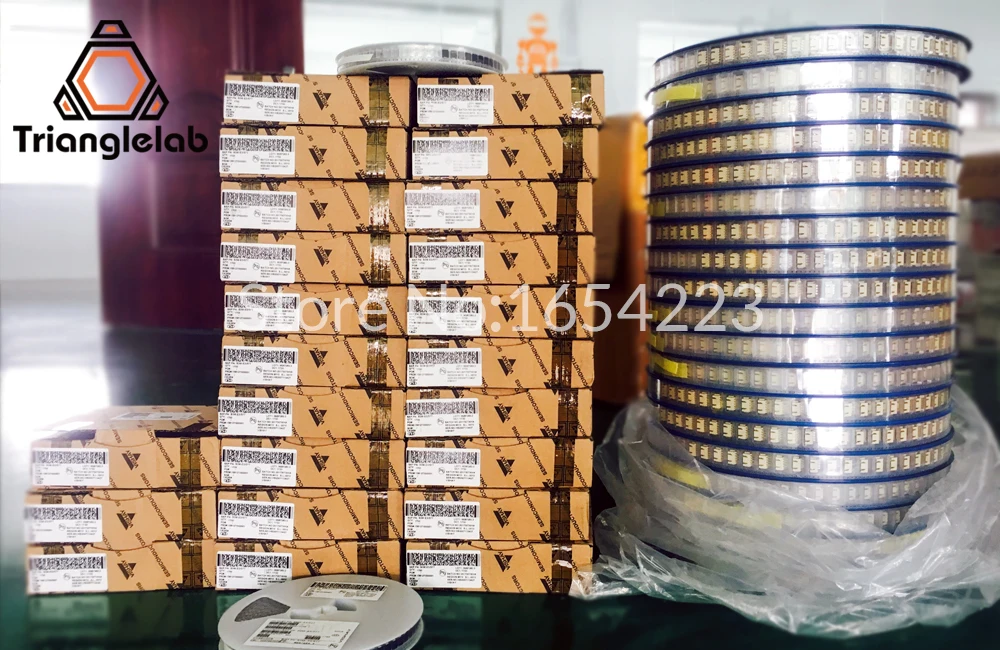

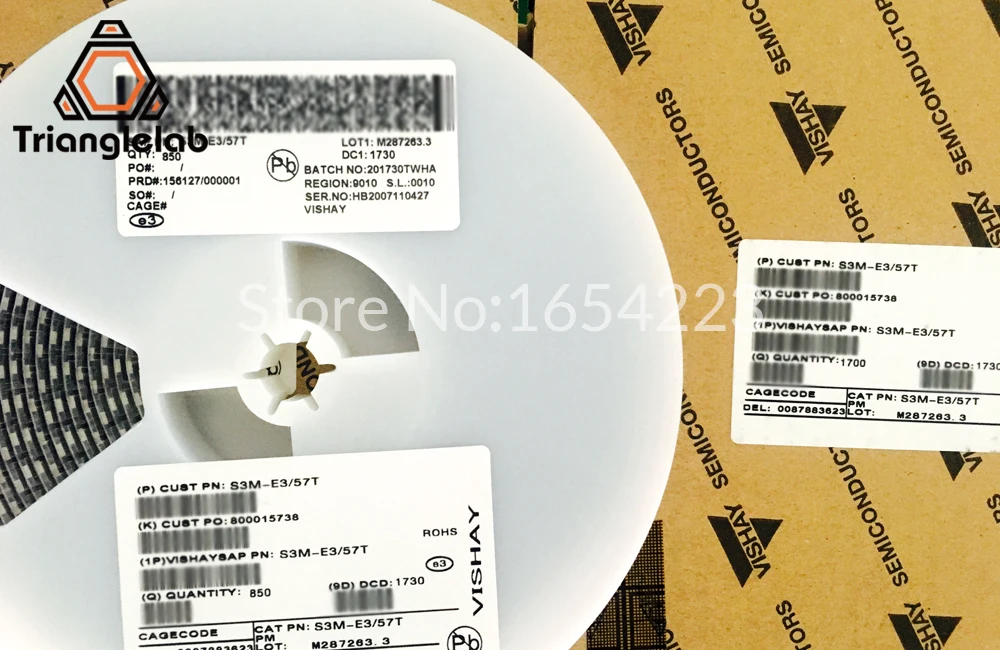

Genuine VISHAY diode guaranteed

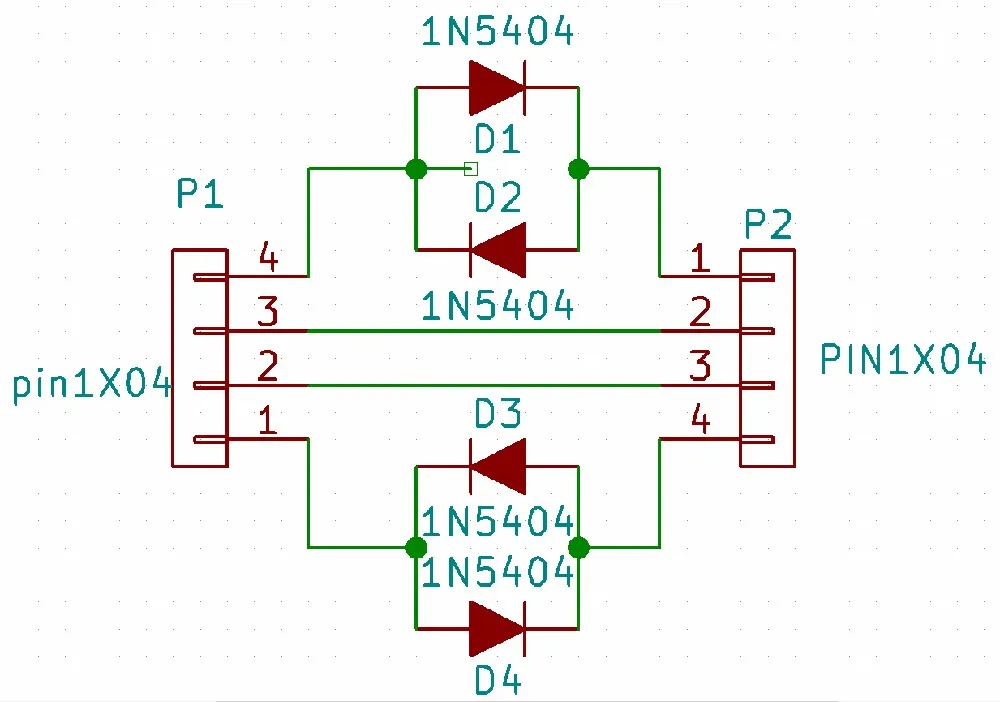

Wiring Instructions

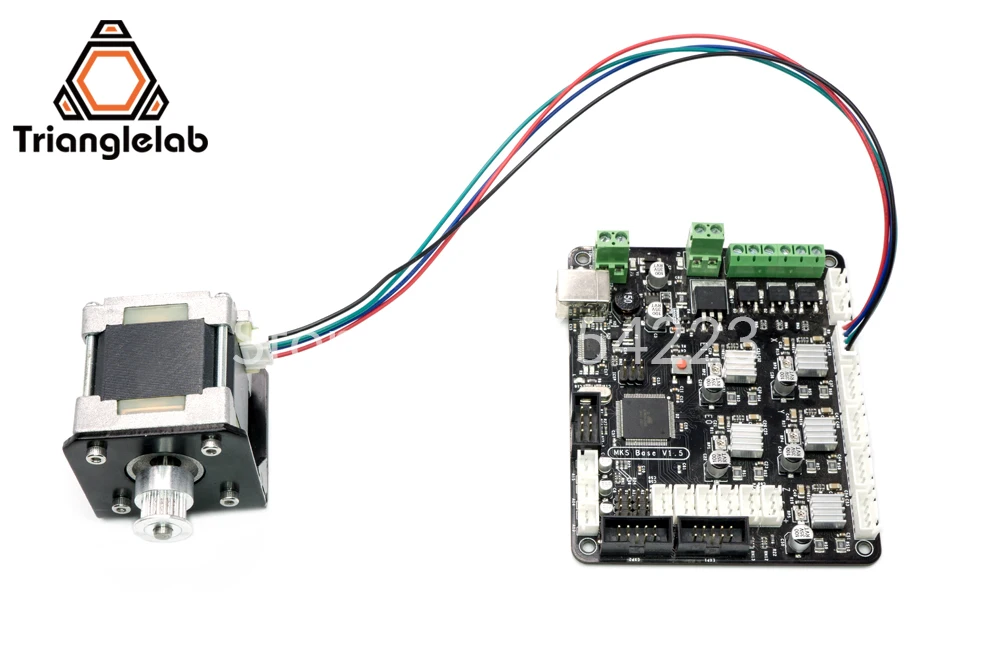

Before

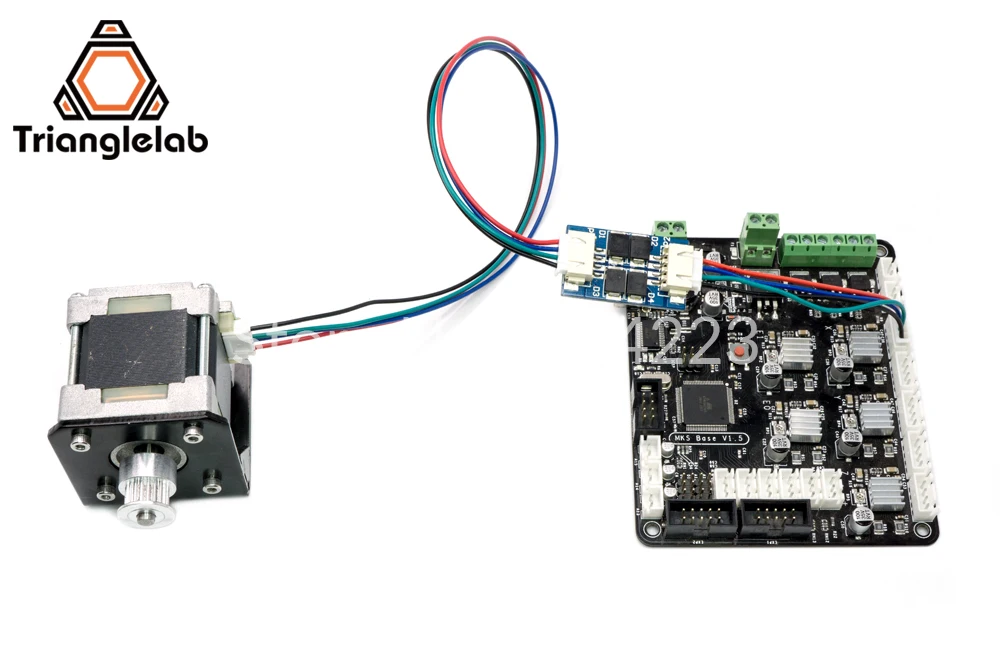

After

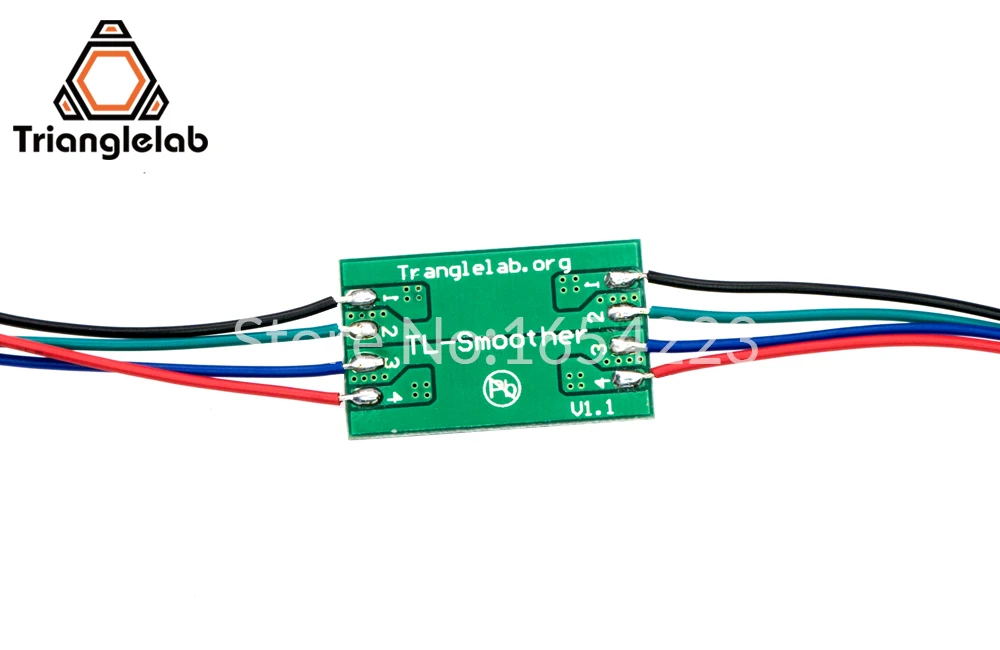

You can also cut the motor wire into half and soldering the board in between it will make better condutivity.

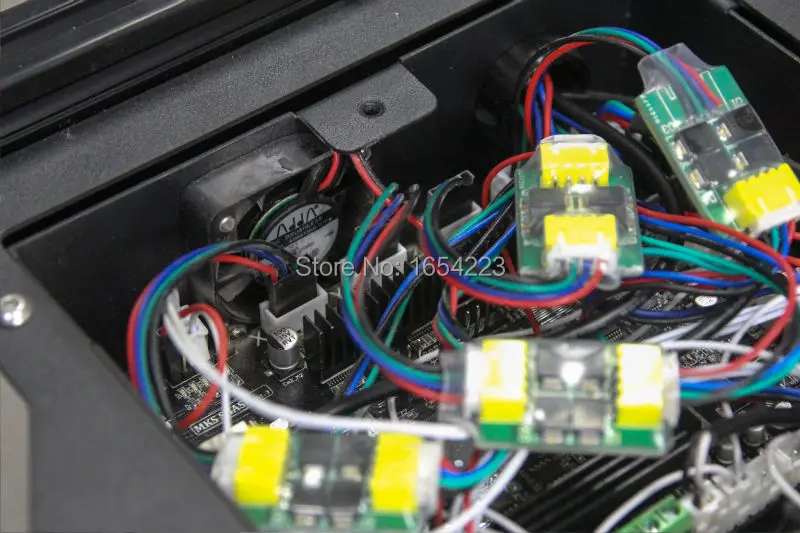

D-froce Delta 3D printer Board:MKS-SBASE with DVR8825 Drivers
D-froce Delta 3D printer Board:Ramps1.4 with A4988/2 drivers
