Trianglelab TBG-AIR Extruder Hotend

SKU:
Trianglelab TBG-AIR Extruder Hotend compatible TUN Nozzle CHC Kit V6 Heatblock LDO Motor For ENDER3 CR10 Prusa artillery X1 X2
Limited Offer!
5.0 (2 Reviews)
17 Sold
$79.96 $68.40
-9%
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Type:
    SET2 V6
    SET1 CHC B
    SET3 V6 and CHC
Quantity
-
+
  • Trianglelab TBG-AIR Extruder Hotend
  • Trianglelab TBG-AIR Extruder Hotend
  • Trianglelab TBG-AIR Extruder Hotend
  • Trianglelab TBG-AIR Extruder Hotend
  • Trianglelab TBG-AIR Extruder Hotend
  • Trianglelab TBG-AIR Extruder Hotend
  • Trianglelab TBG-AIR Extruder Hotend
Frequently Bought Together
more
Frequently Bought Together
Credit Card Payment Notice If you want to pay by credit card or debit card (not PayPal), please click "check out" to enter the next page and fill in the complete and accurate delivery information.Then select the first one "Credit or Debit Cards" in the payment method.
Credit Card Payment Notice
  • Description
    • Before ordering, please note that all our products do not include tax, you need to declare your own tax!

    • If you need to send UPS/Fedex/TNT/DHL, please contact us. We need to discuss the freight with you.

    • Technical questions e-mail:[email protected]

    • Sales questions e-mail:[email protected]

    • The trianglelab has always been concerned about product quality.We are developing products and working hard to improve the quality.We will not abandon our reputation because of many cheap products on the market.It is believed that only high quality products can ensure the quality of your work and bring safety to your work.

    • Some of our products may be more expensive than others,but please believe in our quality and believe that you will not regret when you receive the goods.

    Name:

    TBG-AIR Extruder Hotend

    ▉More information:

    https://drive.google.com/drive/folders/10oaf_JKIFIPbKWLJnUDA1cEeA0Clbekh?usp=drive_link



    ▉Advantages:
    Lightweight , Compact size

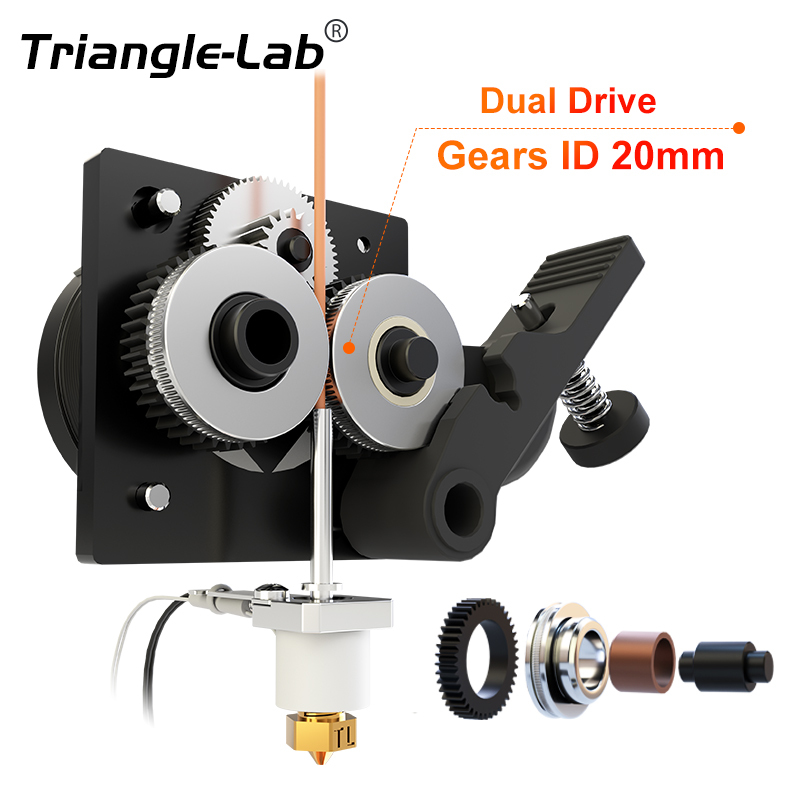

    Hardened steelprecision cut Dual Gear drive
    Large size drive gear greater grip force (20MM DIA)
    Short filament path
    Flexible Filament Friendly
    All Metal Hotend Integrate



    ▉Summary:

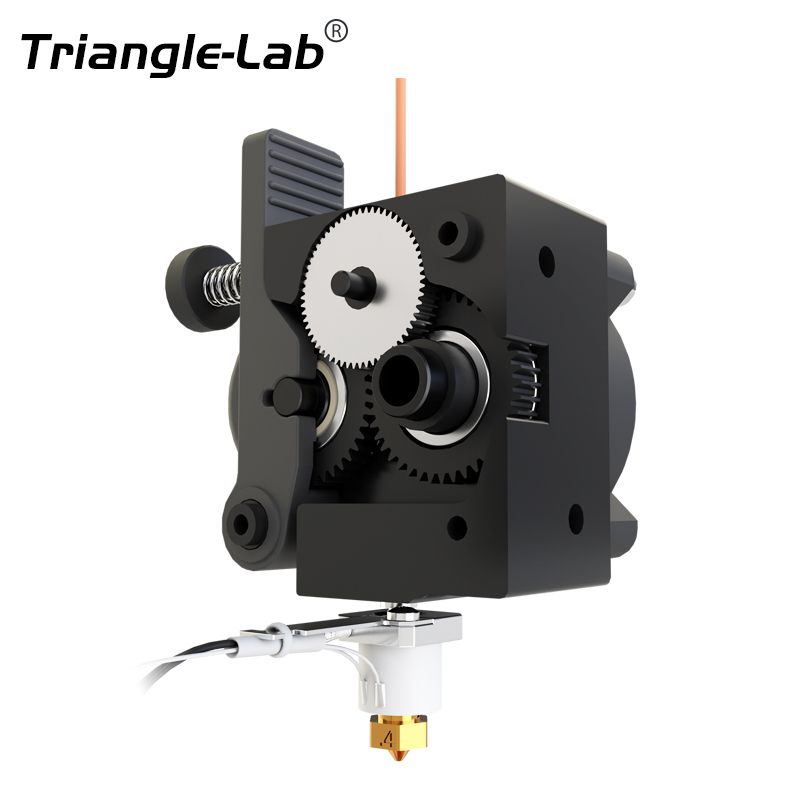

    Drive type: large dual drive with adjustable tension idler
    Max printing temperature: 290°C (upgradable to 450°C)
    Mass: 212g (including V6 hot-side)
    Gear ratio:8.44 : 1
    Nominal steps per mm (16x): 446.9 steps per mm (further calibration required)
    Motor current: 1.0A LDO-36STH20-1004AHG
    Filament diameter and tolerances: 1.75±0.05mm
    Max pushing force: 4.6kg Generic PLA 10mm/min @24V Driver
    Maximum static pushing force that the heat breaker tube clamping system
    can withstand:15KG 147N

    ▉Hotside Compatibility:Ender3 CR10/ Prusa /ArtilleryX1/Artilleryx2
    V6,Volcano,super volcano,CHC, CHC Pro

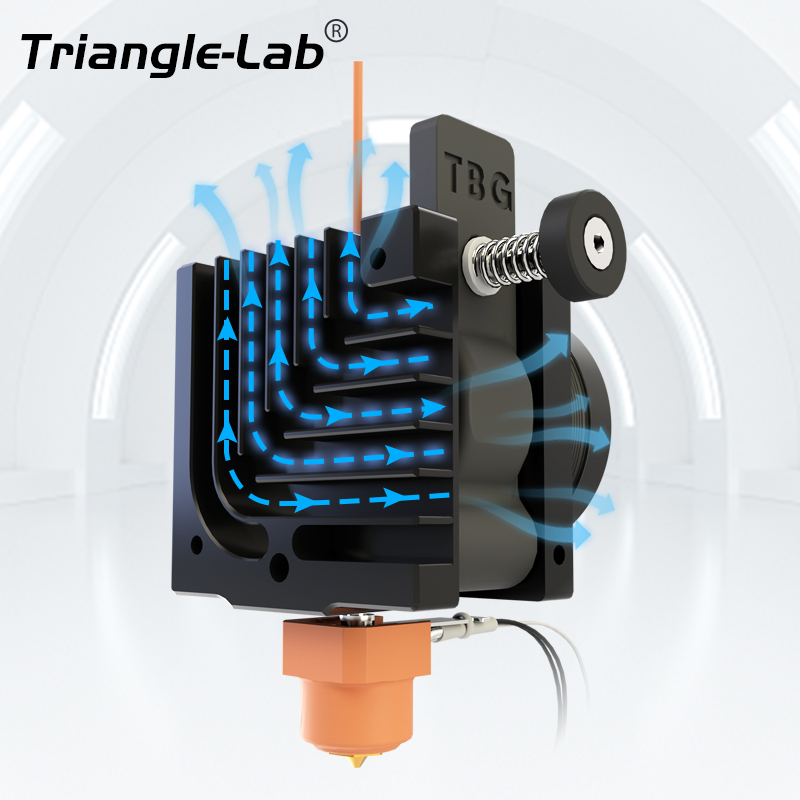

    About heatsink
    Retractable heat sink structure
    Increased heat dissipation area. The middle structure of each part reduces theweight of the heat sink body.





    ▉Disassembly
    4010 Double ball bearing Fan

    Retractable heat sink structure
    Increased heat dissipation area. The middle structure of each part reduces theweight of the heat sink body.
    Rated Speed:7000
    Rated input Power:2.16Maximum Air FlowRated:6.9
    FlowRated Static Pressure:5.5





    Ceramic Ring
    M6 smooth thread design.
    Evenly heated to achieve 360°ring heating
    Compatible with M6 threaded nozzles

    ▉Temperature
    High temperature resistantceramic ring
    High temperature resistant design. Can withstand higher printing temperatures.

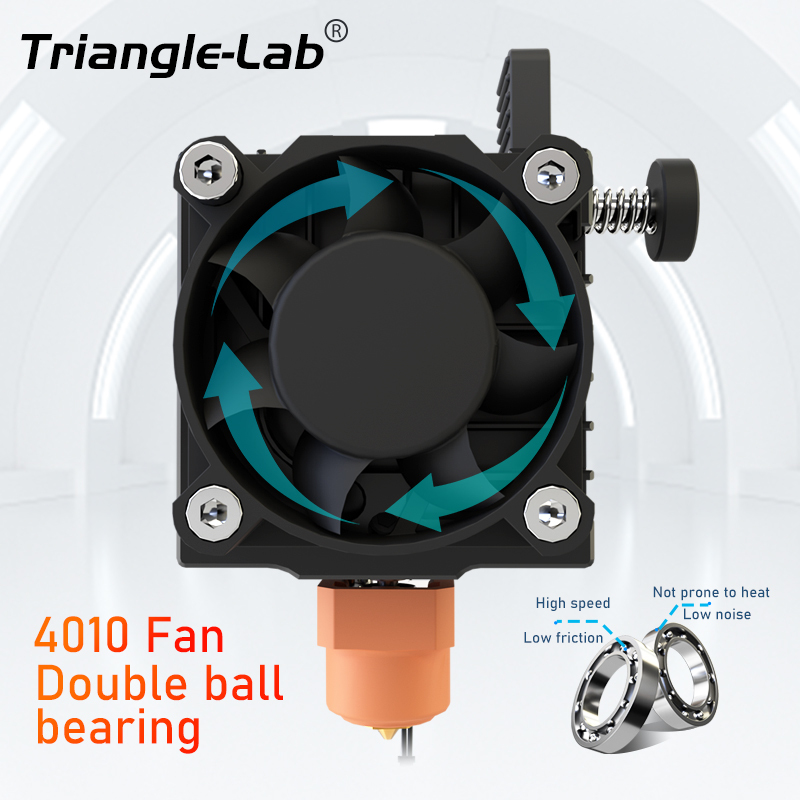

    ▉About the fan
    4010 Double ball bearing Fan





    ▉What's in the box:

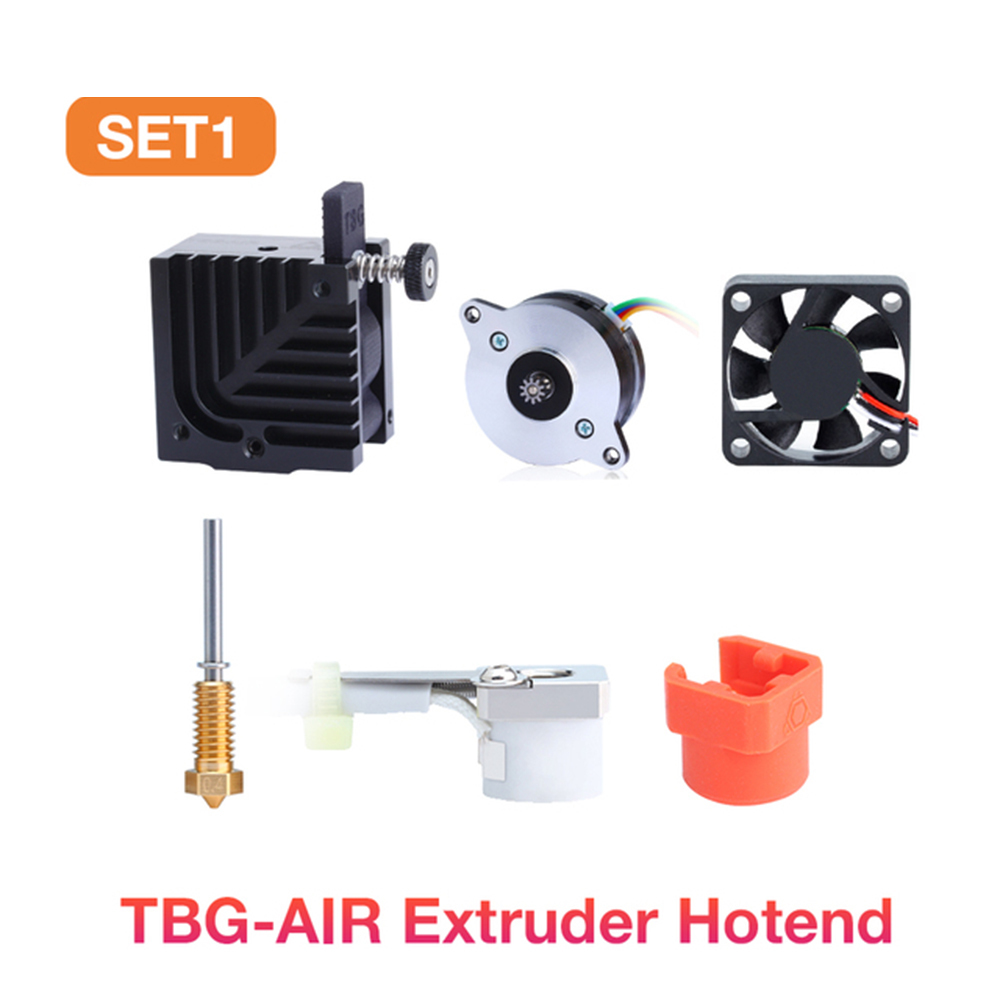

    SET1▶   ●TBG-AIR Extruder(Pre-installed)   ●LDO Motor   ●4010 Fan   ●CHC Kit
    ●TUN Brass Nozzle 0.4mm   ●CHC Silicone Sock ●Screw Pack ●Tool kits

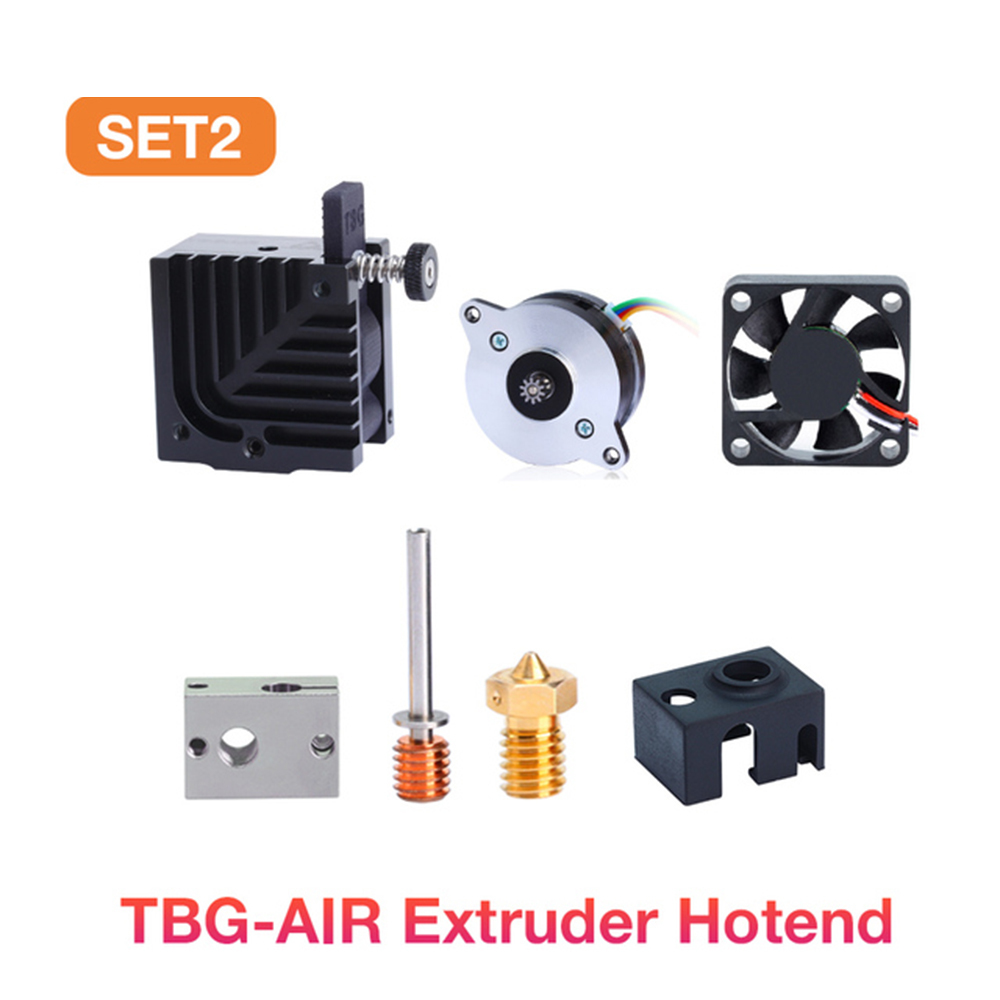

    SET2▶   ●TBG-AIR Extruder(Pre-installed)   ●LDO Motor   ●4010 Fan
    ●V6 Aluminium Heatblock   ●Matrix Heatbreak   ●V6 Brass Nozzle 0.4mm   ●V6 Silicone Sock

       ●40W Heater Cartridge   ●104NT-4-R025H42G Thermistor Cartridge   ●Screw Pack   ●Tool kits

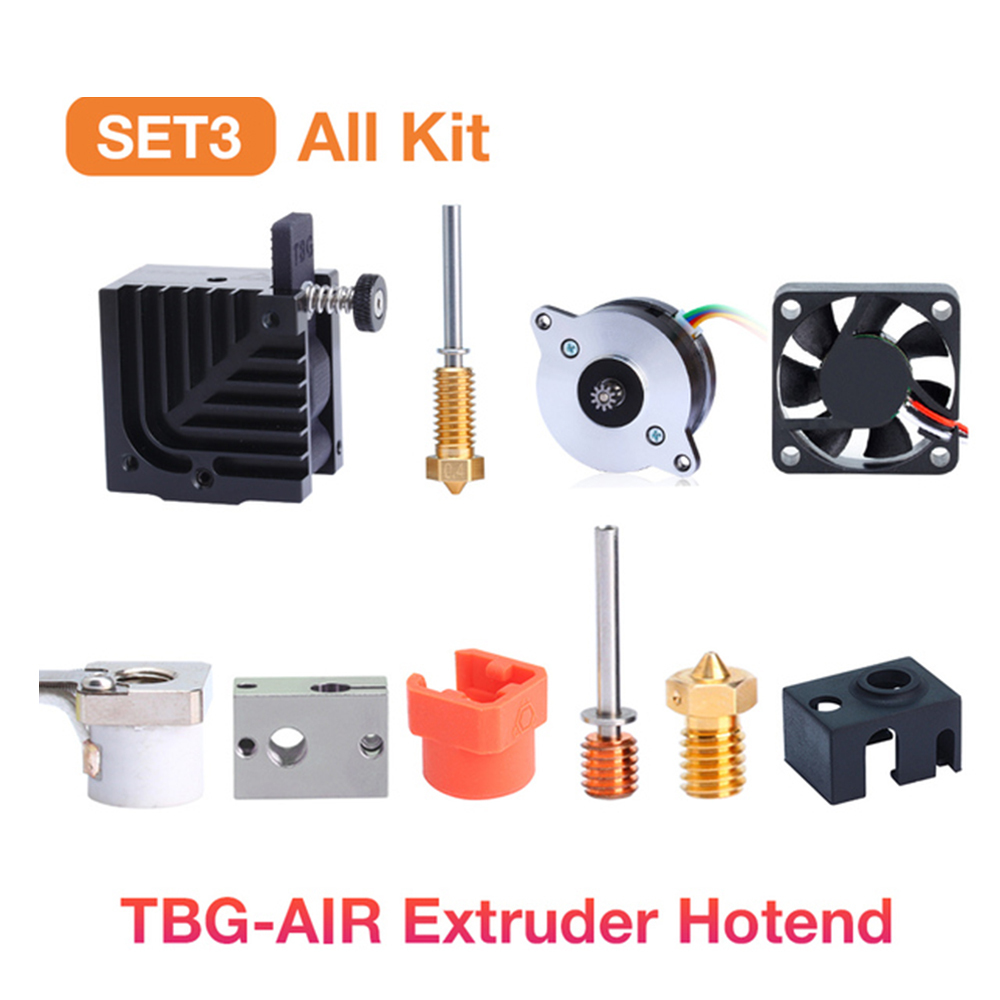

    SET3▶   ●TBG-AIR Extruder(Pre-installed)   ●LDO Motor   ●4010 Fan

    ●V6 Aluminium Heatblock   ●Matrix Heatbreak   ●V6 Brass Nozzle 0.4mm   ●V6 Silicone Sock
    ●40W Heater Cartridge   ●104NT-4-R025H42G Thermistor Cartridge

     ●CHC Kit   ●TUN Brass Nozzle 0.4mm  ●CHC Silicone Sock   ●Screw Pack   ●Tool kits



    ▉Display:
