The trianglelab has always been concerned about product quality.We are developing products and working hard to improve the quality.We will not abandon our reputation because of many cheap products on the market.It is believed that only high quality products can ensure the quality of your work and bring safety to your work.
Some of our products may be more expensive than others,but please believe in our quality and believe that you will not regret when you receive the goods.

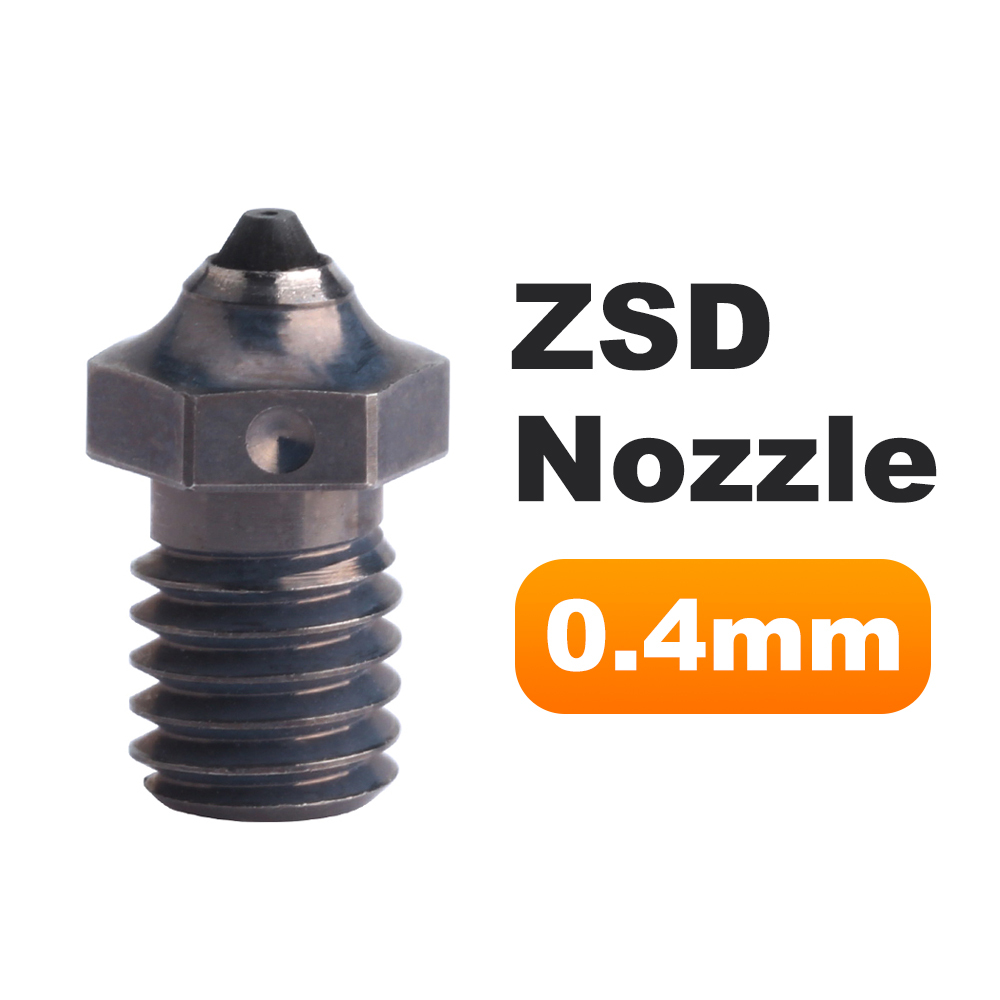

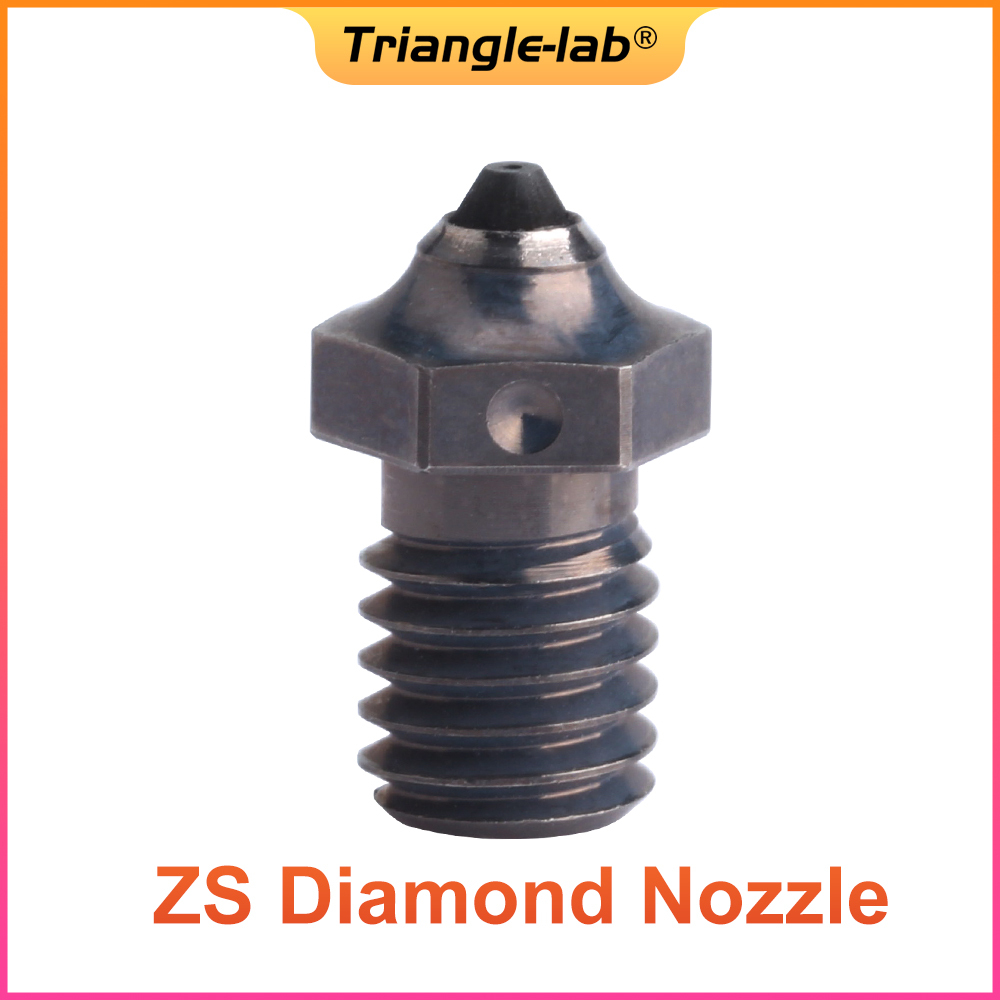

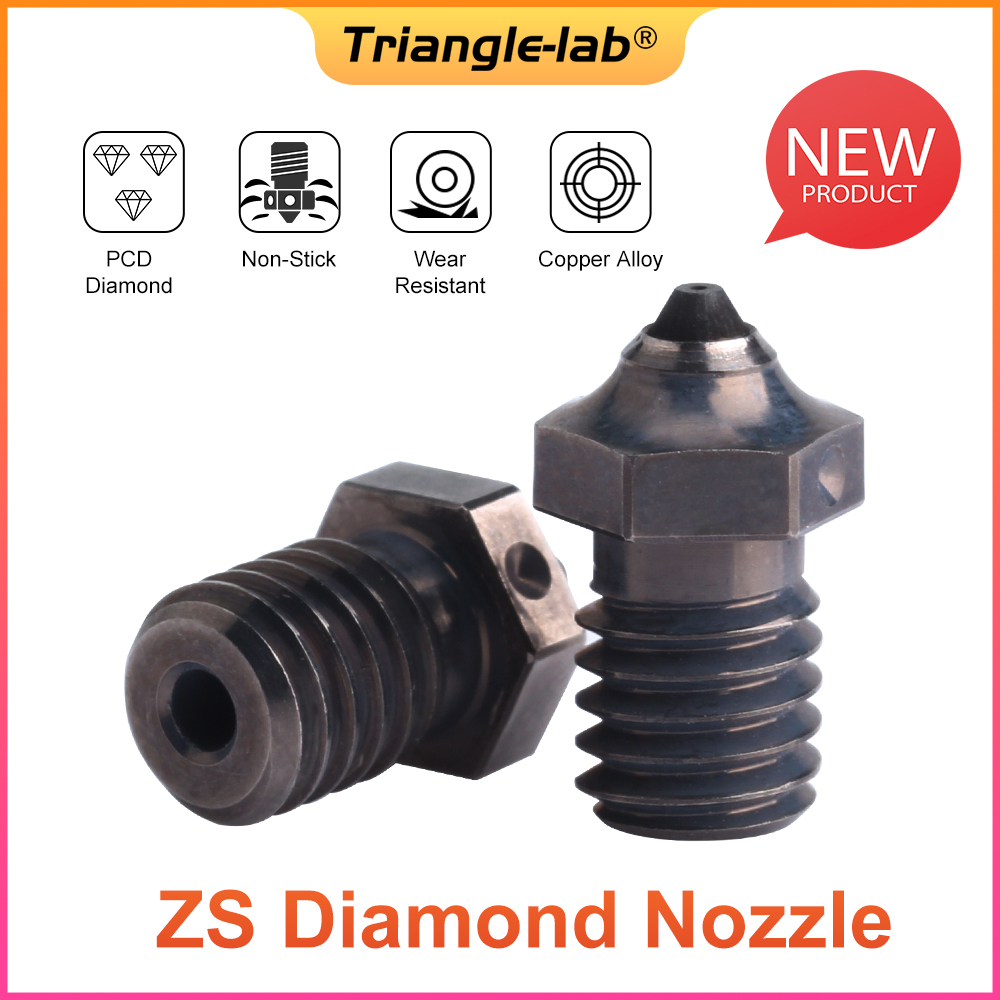

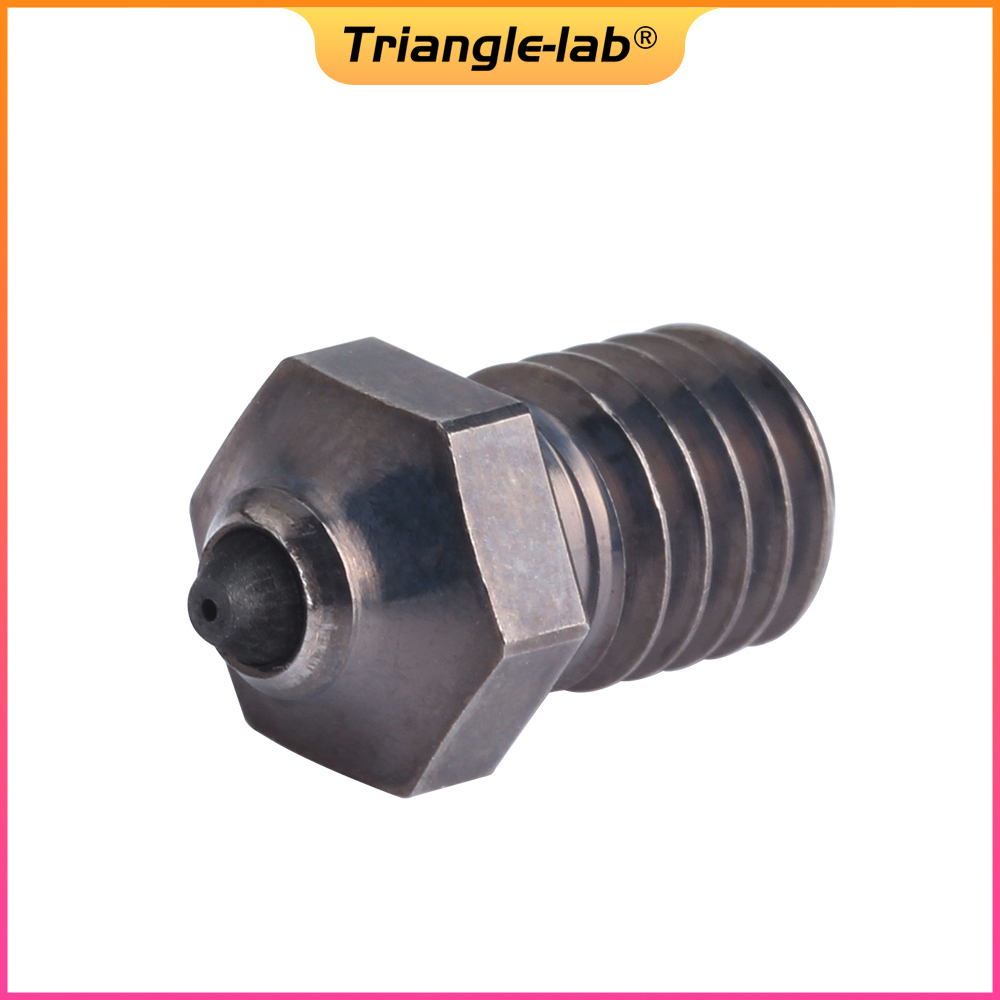

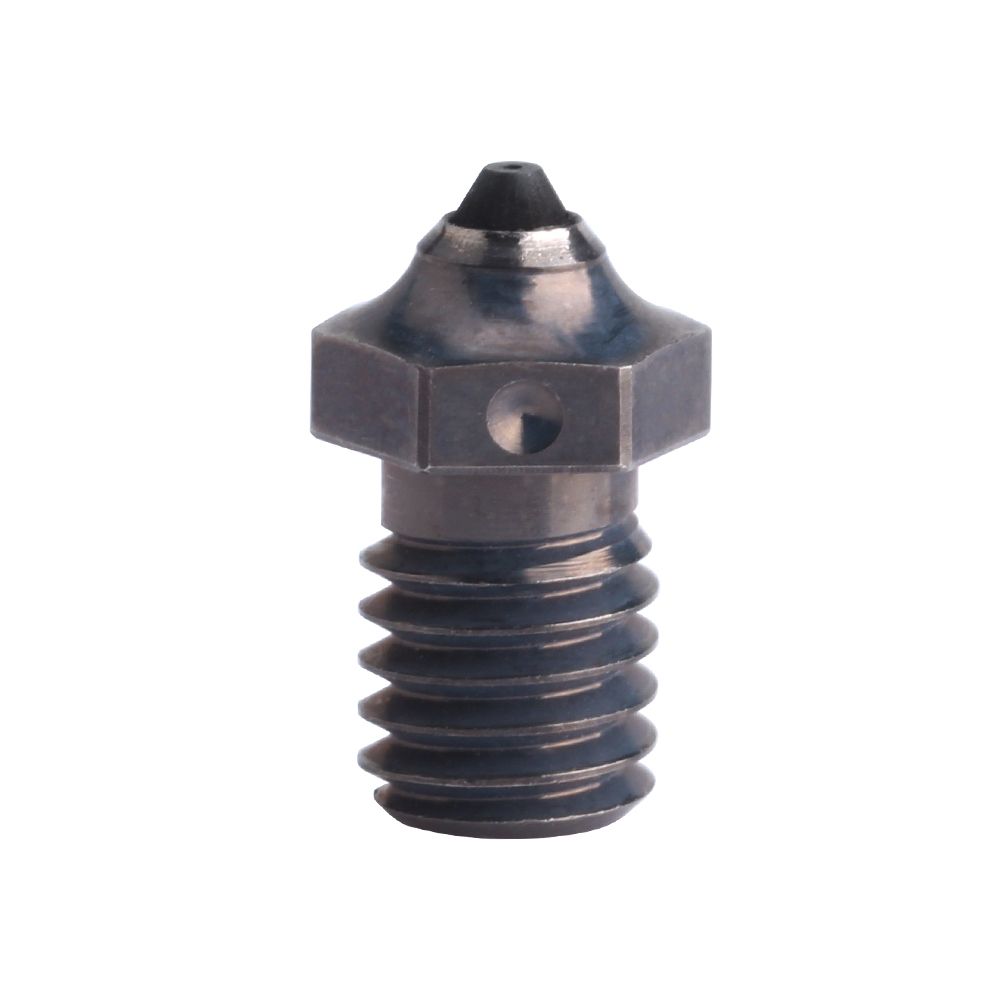

Trianglelab ZS Diamond Nozzle

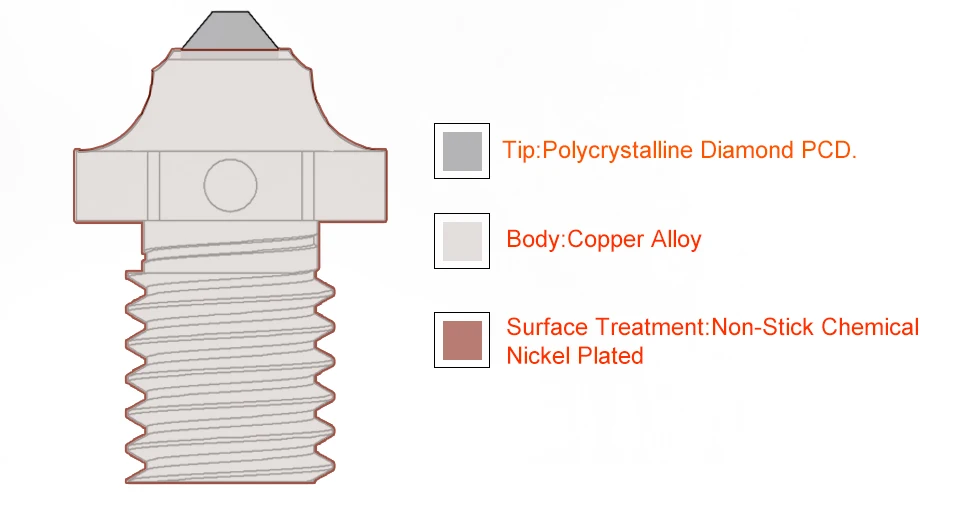

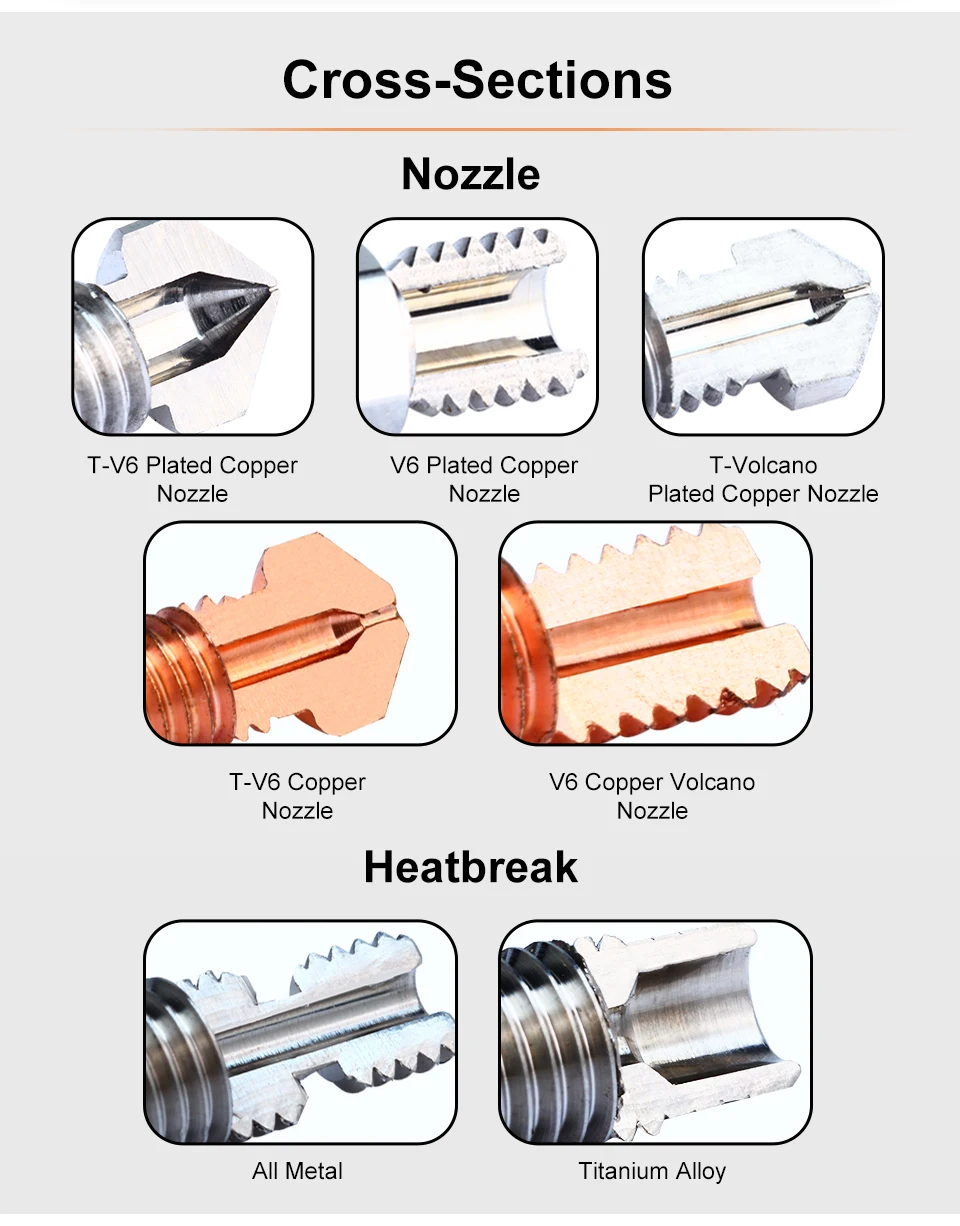

Cross-Sections
The cross-sections of some products have not been processed. If you do not believe our photos, please cut our products and you will witness our high-quality workmanship.

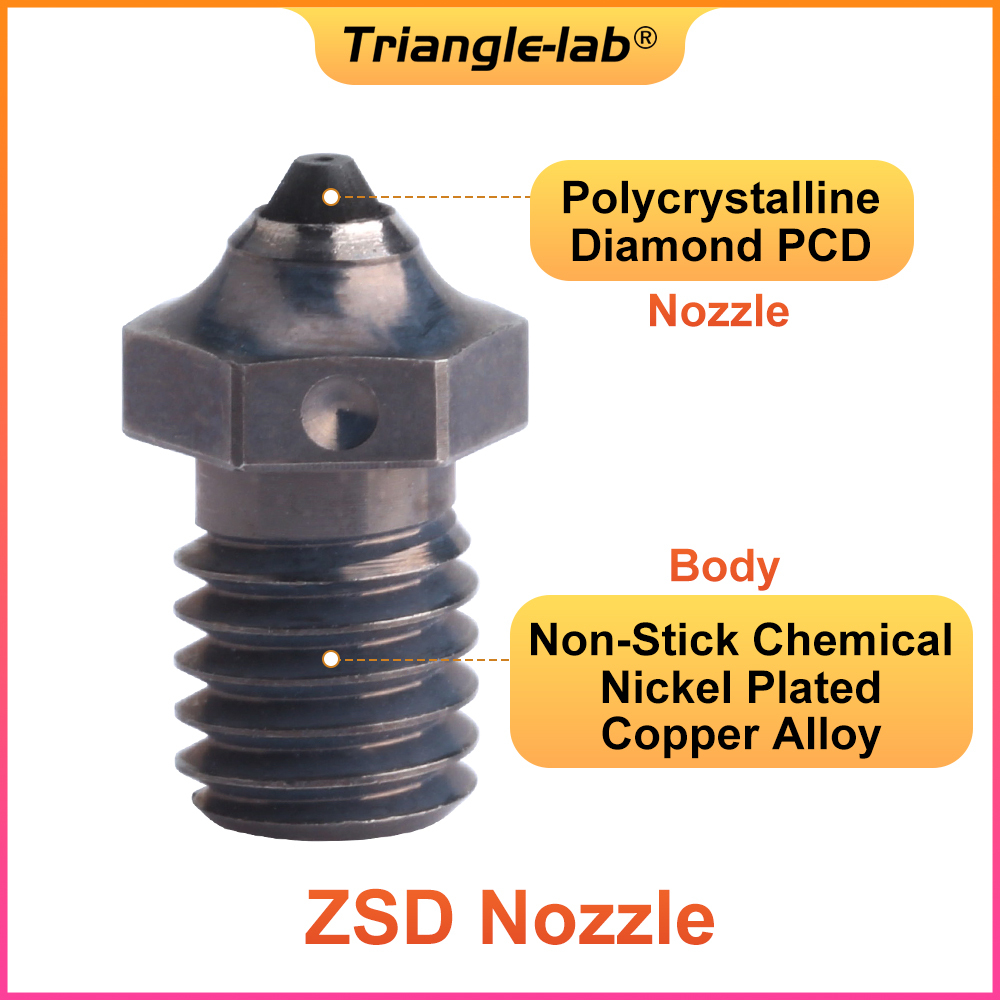

Features
1.Body: Copper Alloy.

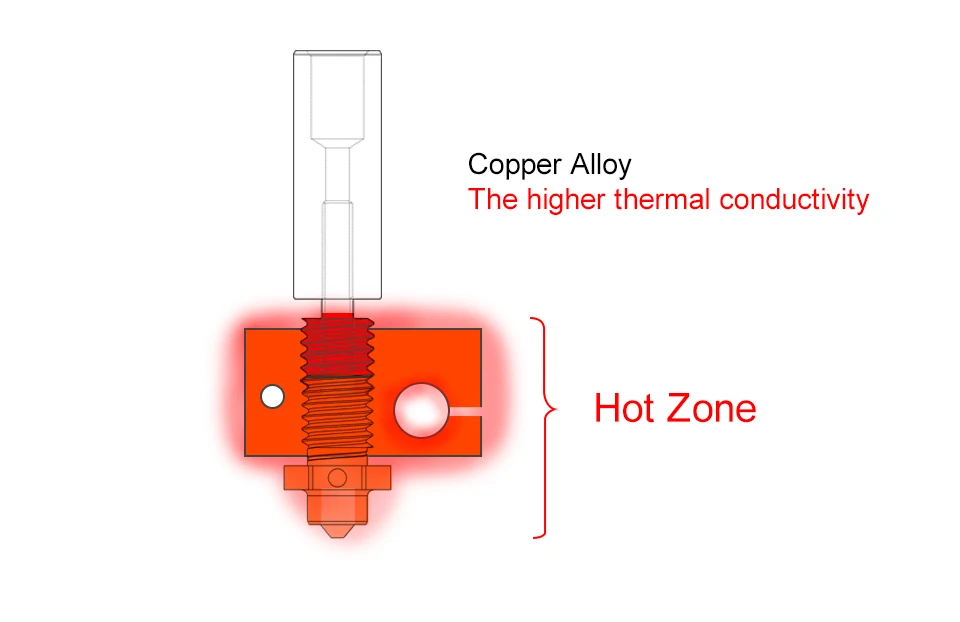

Copper alloys have 10 times the thermal conductivity of steel.Replacing this nozzle does not require an increase in print temperature like hardened steel nozzles to achieve the same print flow and results as brass or copper nozzles.

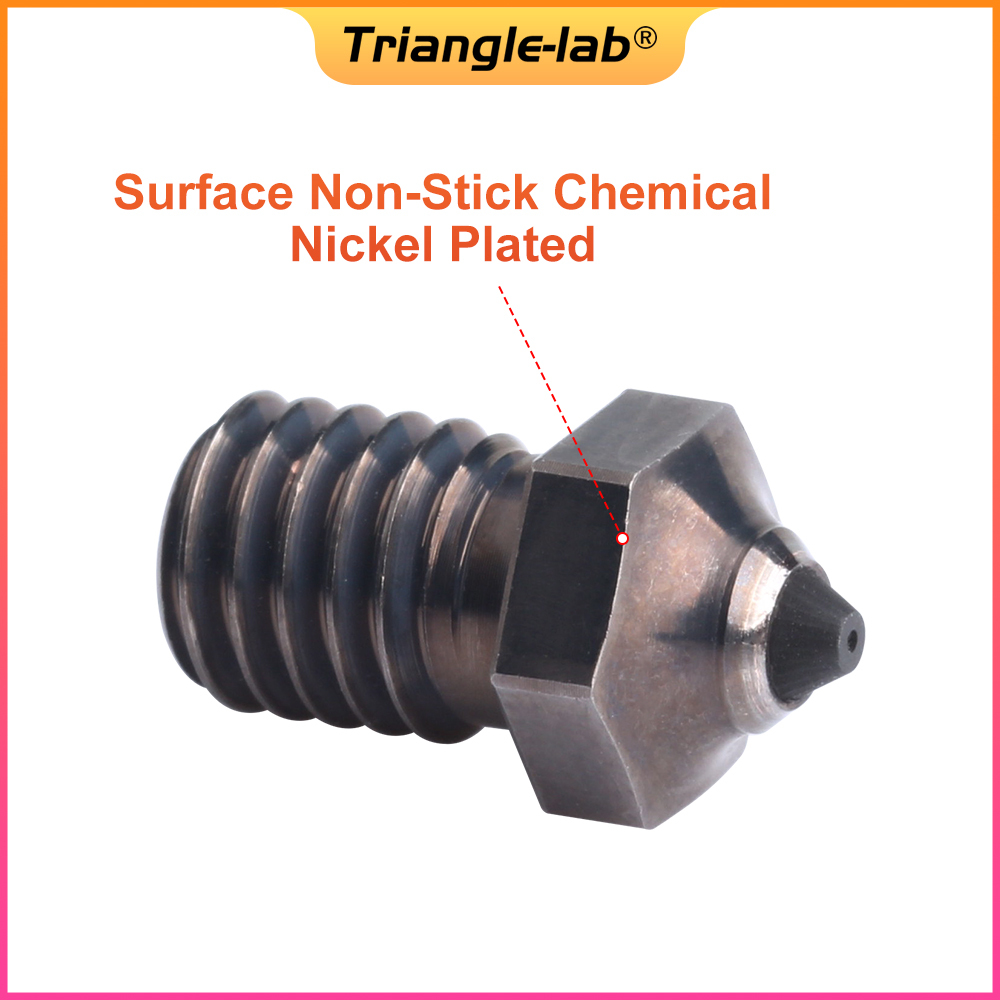

2.Surface Treatment:Non-Stick Chemical Nickel Plated
Note:Do not exceed 300℃, as this will damage the Plating.
NON-STICK nicel plated finishing protects the copper alloy surface while preventing the accumulation of residual hot melt plastic on the nozzle surface, thereby preventing the quality of the printed result from being reduced and improving the printing success rate. It also has very low frictional resistance, which can make the melt plastic flow more smoothly, reduce feeding resistance and improve printing quality.
3.Tip:Polycrystalline Diamond PCD.
Polycrystalline Diamond PCD material has extremely high hardness (twice that of ruby) and wear resistance and is generally used to make precision CNC cutting tools. It can easily handle a variety of carbon fiber glass fiber ceramic fiber or metal powder filled polymers. PCD material also has extremely high thermal conductivity (30% higher than pure copper) and extremely low coefficient of friction, making it an ideal material for extruding hot melt plastics.

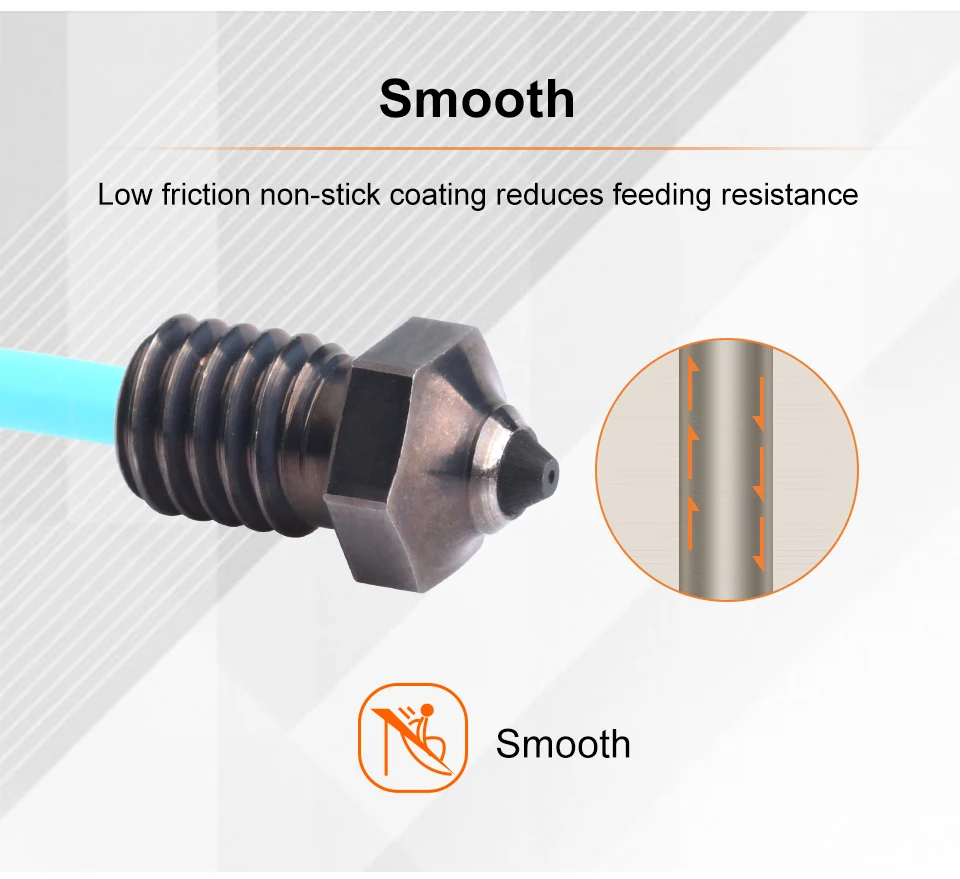

Smooth
Low friction non-stick coating reduces feeding resistance
Details

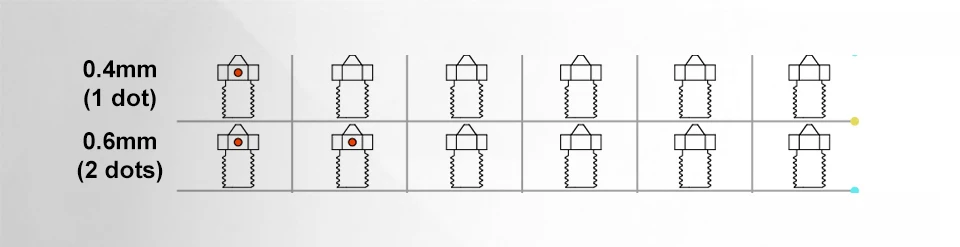

Nozzles are identifiable with markings on the flats of the hex head, please see the table below for identification.

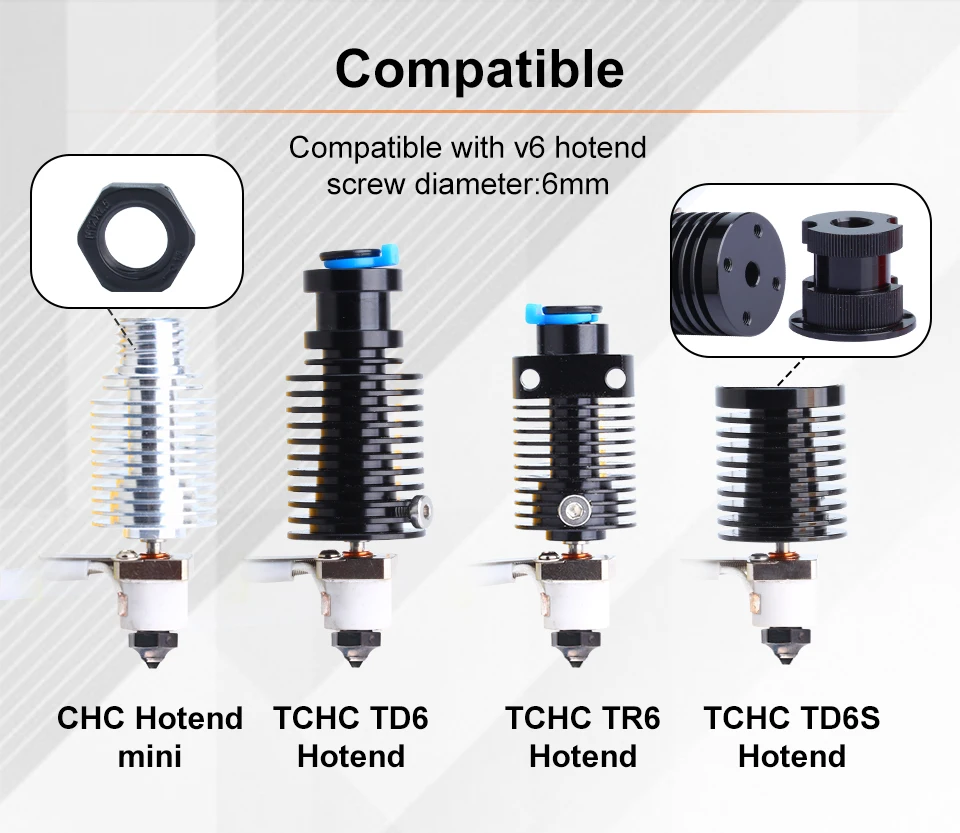

Compatible
V6 Hotend,CHC Hotend mini,TCHC TD6 Hotend,TCHC TR6 Hotend,TCHC TD6S Hotend,CHC Matrix Extruder.

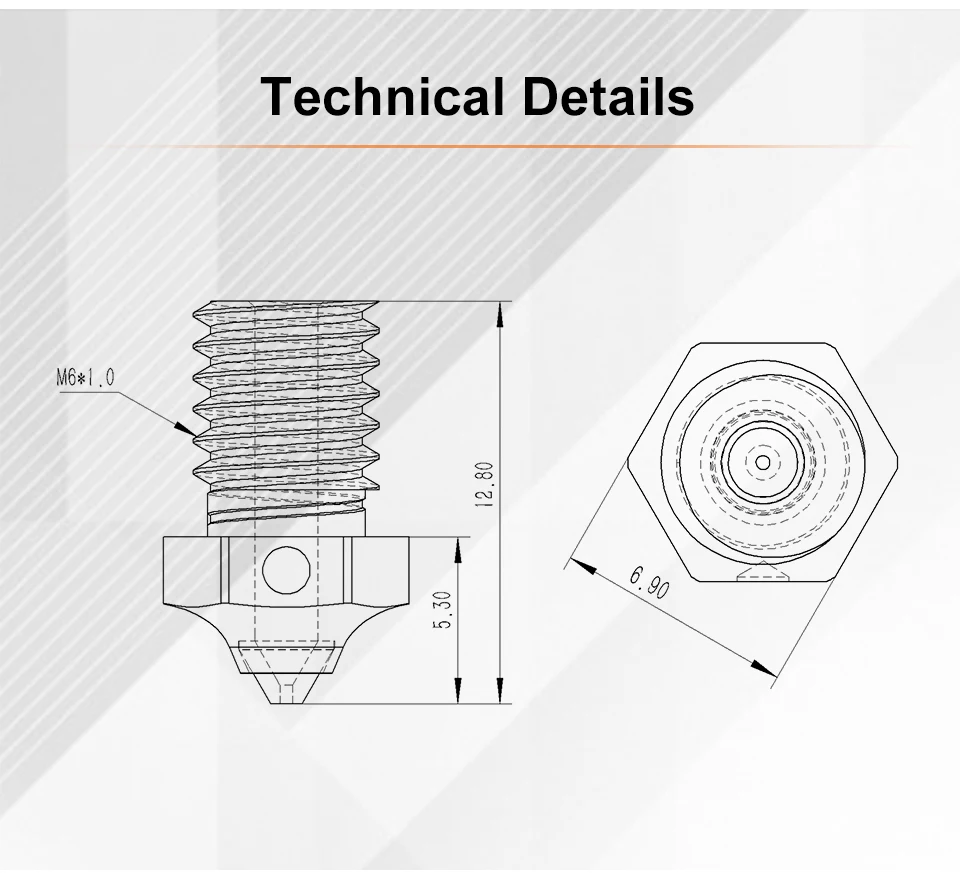

Technical Details
https://telconpcd.com/what-is-polycrystalline-diamond-pcd/
Polycrystalline Diamond also known as PCD is produced synthetically by sintering together many (Poly) diamond particles, usually in the size of 2 to 30 microns of a meter, with a metal binder (mostly Cobalt) at high temperature and high pressure.That is to say, the tip made of PCD will contain a small amount of cobalt.Cobalt is a ferromagnetic material and can be attracted by magnets.
