Z-Probe

Name: Z-Probe
Brand: Trianglelab Official Website
Price: 14.09 USD
Availability: InStock

Precision Piezo Piezo20 Z-Probe Sensor Z-probe for 3D printers revolutionary auto bed leveling sensor 3D printer accessories

Limited Offer!

4.7 (52 Reviews)

71 Sold

~~$17.80~~ $14.09

-8%

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (97)

Description

Before ordering, please note that all our products do not include tax, you need to declare your own tax!
If you need to send UPS/Fedex/TNT/DHL, please contact us. We need to discuss the freight with you.
Technical questions e-mail：[email protected]
Sales questions e-mail：[email protected]
The trianglelab has always been concerned about product quality.We are developing products and working hard to improve the quality.We will not abandon our reputation because of many cheap products on the market.It is believed that only high quality products can ensure the quality of your work and bring safety to your work.
Some of our products may be more expensive than others,but please believe in our quality and believe that you will not regret when you receive the goods.

V2.75 news
The production was officially upgraded on April 30, 2019, and the version is V2.75.

https://www.youtube.com/watch?v=G-UF4tv3Hvc

This product is a Z-probe sensor kit using piezo electric bimorphs technology to provide precision auto bed levering on 3D printers.
Of all the other sensing technologies being used in 3D printing we believe this one is the best at present.Nozzle contact is a direct measurement,the nozzle is the 'sharp end of the tool'.Since there are no x and y offsets(and very minimal z-offset) the whole of the printable area of the bed can be probed.It is permanently mounted so no servos to setup,and no issues with repeatability between probings.Any type of tilt in the carriage or effector does not result in probing errors being fed into computations for bed levelling or calibration.
WIKI:http://reprap.org/wiki/Piezo-electric_sensors

It is very precise to 0.01mm accuracy(hotend mount)
Very repeatable-standard deviation in testing 0.007mm
Can be used with any printing surface including Printbite,PEI,Buildtak,Glass, Aluminium,FR4.
Uses a standard endstop connector
Is permanently fixed,no servos,no deploying required
Easy to configure in your firmware
No X or Y offsets,your nozzle is the tool head,so use the nozzle to probe
Replaces inductive probes,IR probes,Capacitative probes,FSR's,servo probes
Illuminates on probing OR you can specify a solid colour unit both units have LED's front and back.
Full STL's provided,Open Source Hardware.

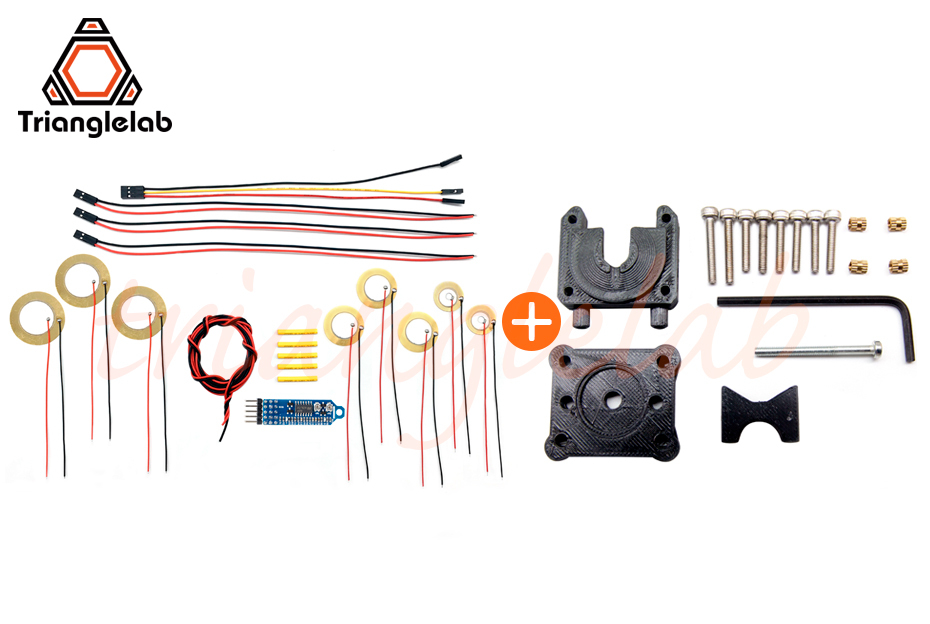

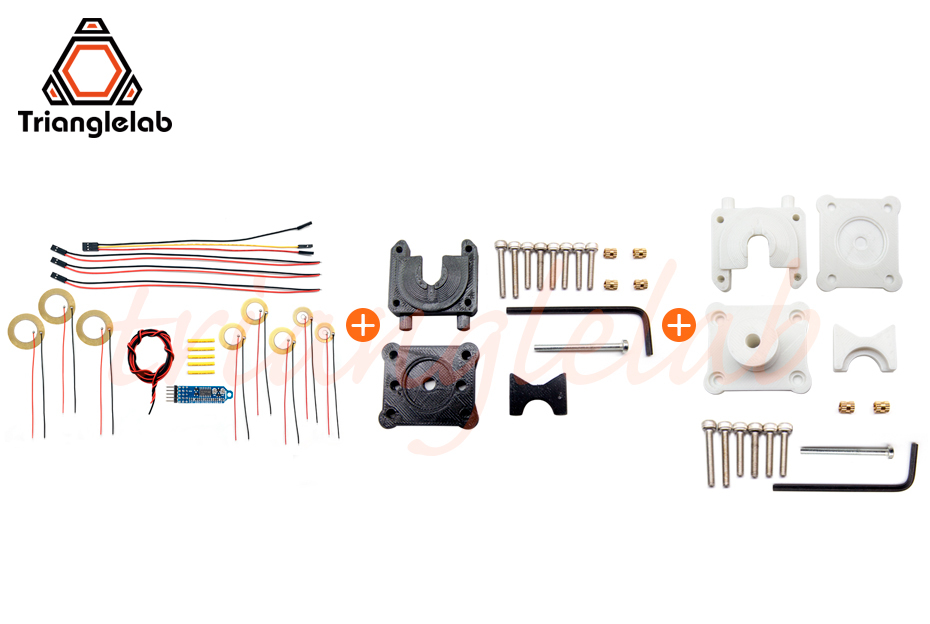

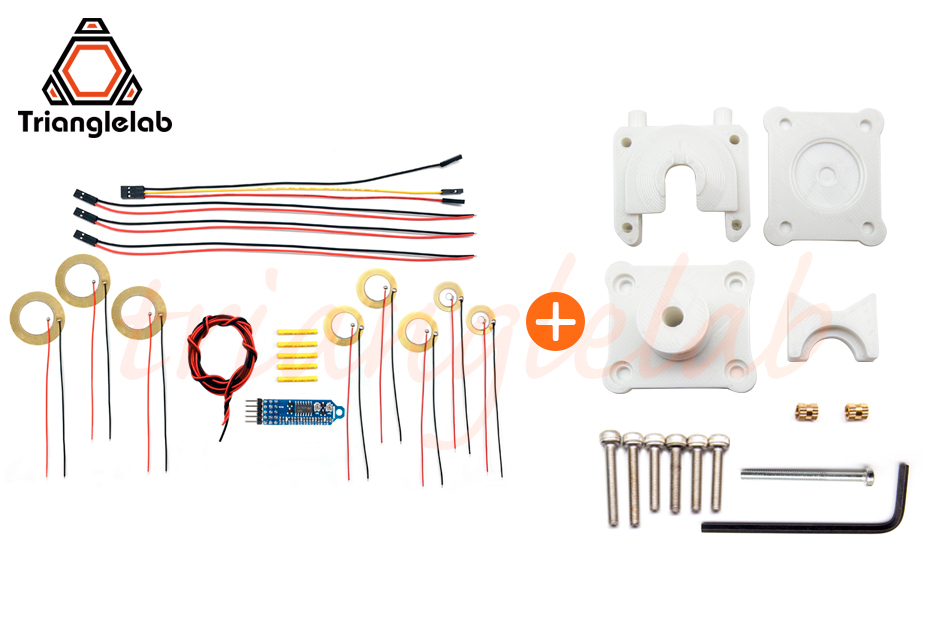

The kit is contains all the electronic components both for hotend piezo and underbed piezo setup.
Low cost and easy to use.

V2.75 Piezo Sensors manual download
https://drive.google.com/drive/folders/1X2BCPQ6TTaV4uir_ECnJtm8xwmhXUAvu

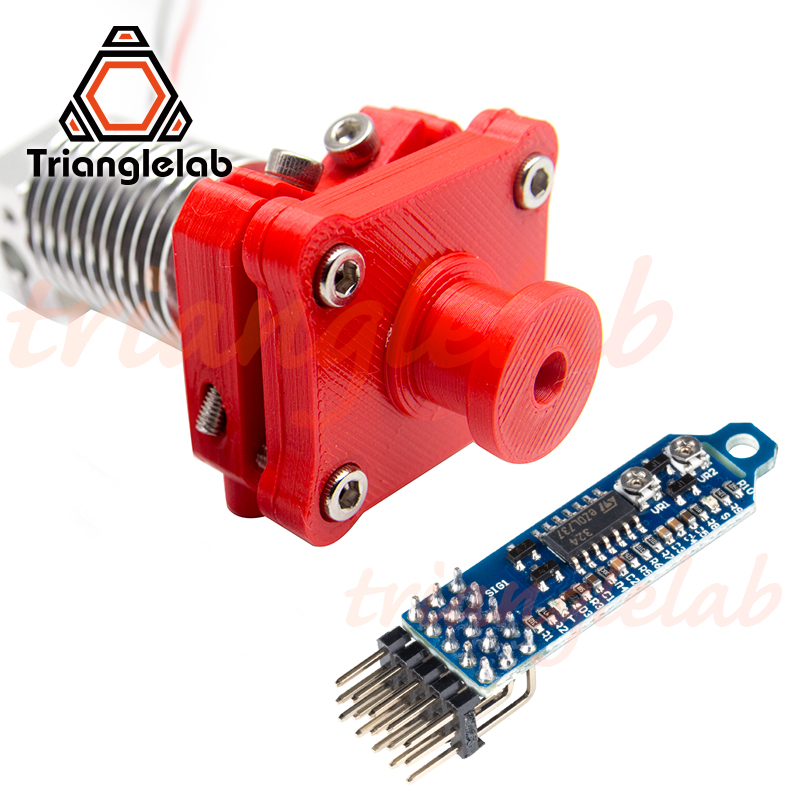

STL files for hotend mounting
https://www.thingiverse.com/thing:2319993
Underbed Piezo Sensor setup manual download

https://www.youtube.com/watch?v=WDHU3tRU-C4

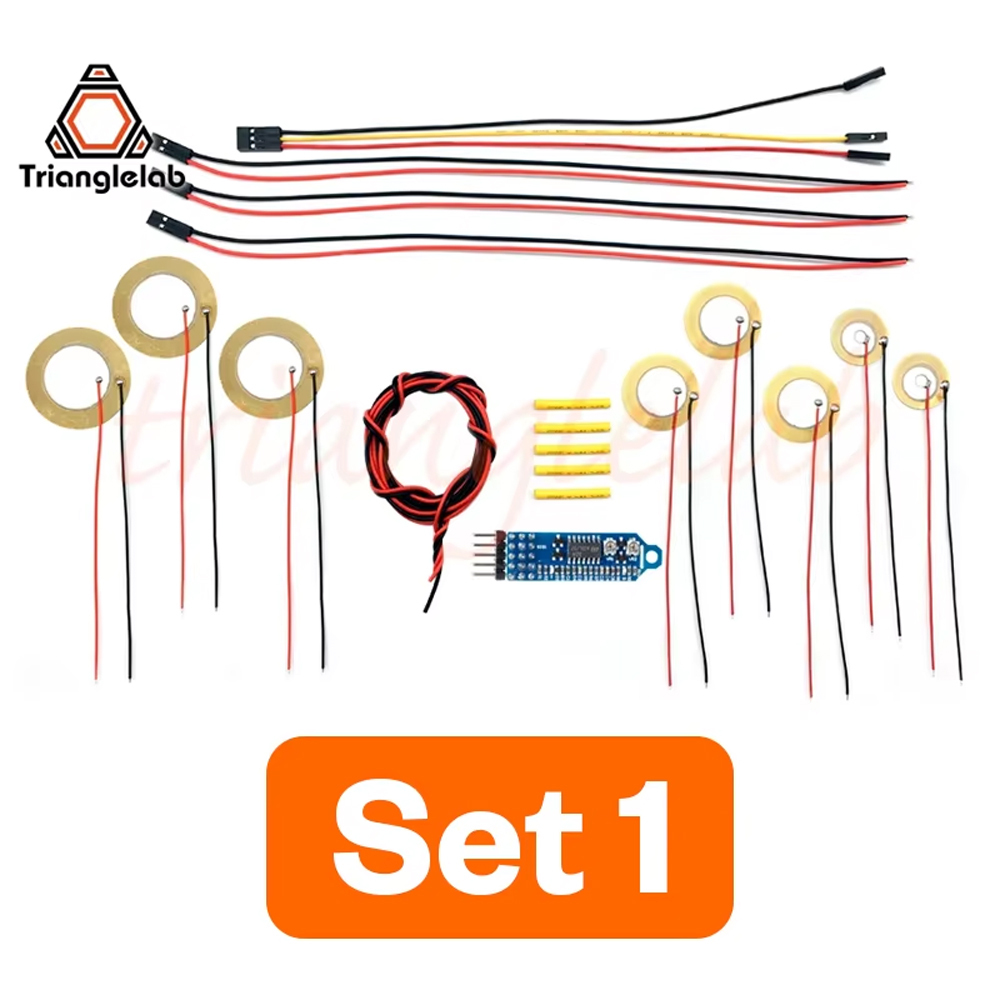

(SET 1)
A tunable PCB for connecting the piezo disc/s and providing an endstop-style signal.
Endstop Cables                         1*20CM
Extension Wires                         2*100CM(RED*1 BLACK*1)
Piezo Connectors                       3*20CM
20MM Piezo Discs with punched hole     2pcs
27MM Piezo Discs                                3pcs
35MM Piezo Discs                                3pcs
Heat Shrink Tube                                some
SET 1
